At a glance data:
Rating Prime:
340 ekW (425 kVA)
Frequency:
50/60 Hz
Voltage:
120 - 600 V
Rating Standby:
375 ekW (469 kVA)
Overview

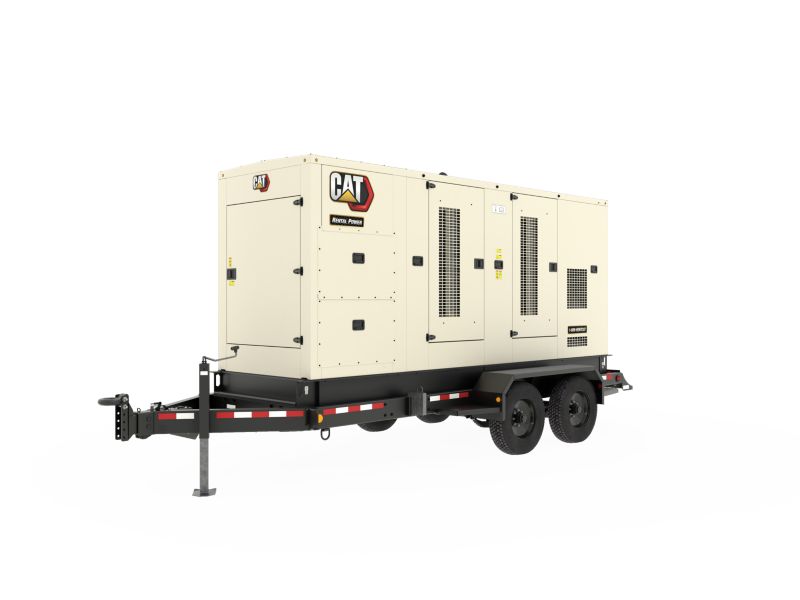

The Cat® XQ425 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C13 engine equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ425 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.
Category:
Mobile Generator Sets
Category:
Mobile Generator Sets
Brand:
Caterpillar
Brand:
Caterpillar
Generator Set
Rating Prime:
340 ekW (425 kVA)
Frequency:
50/60 Hz
Voltage:
120 - 600 V
Rating Standby:
375 ekW (469 kVA)
Engine
Engine:
C13
Fuel:
Diesel
Dimensions
Height - Without Trailer:
60in
Length - Without Trailer:
208.7in
Width - Without Trailer:
104in
Weight with Lube Oil and Coolant, Without Trailer:
14700lb
Fuel Consumption
100% Load 60Hz:
23.1gal/hr
75% Load 60Hz:
17.7gal/hr
50% Load 60Hz:
12.7gal/hr
100% Load 60Hz:
25.1gal/hr
75% Load 60Hz:
19.2gal/hr
50% Load 60Hz:
13.6gal/hr
Noise rating (with enclosure)
Sound Power @ 7 meters (23 feet) @ All Ratings:
74 dB(A)
Standard Equipment
cat c13 diesel engine
- Heavy-duty.
Turbocharged.
After treatment
generator
- SR4B - 450 Frame
control panel
- Digital EMCP4.2 set mounted controller
cat connect remote monitoring
- Provides package monitoring and management
cooling system
- Package mounted radiator with vertical air discharge.
Filled from factory
charging / starting system
- 12V heavy duty starting motor and charging alternator c/w battery isolator
fuel system
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
air filter
- Cyclonic/paper with dust cup and service indicator
distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
structure
- Heavy Duty steel base frame with integral fuel tank.
Lifting frame and 4 point lift.
base frame is wider than enclosure to protect generator set during transportation
enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
exhaust
- Integrated spark arresting silencer
lube oil
- On engine primary and secondary oil filters. Filled from factory
general
- Factory tested and inspected
Optional Equipment
