At a glance data:
Power Range:
58.0R - 118 ekW
Frequency:
50 / 60
Emissions:
U.S. EPA Tier 3, EU Stage V
Aspiration:
Turbocharged - Aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW))
Overview

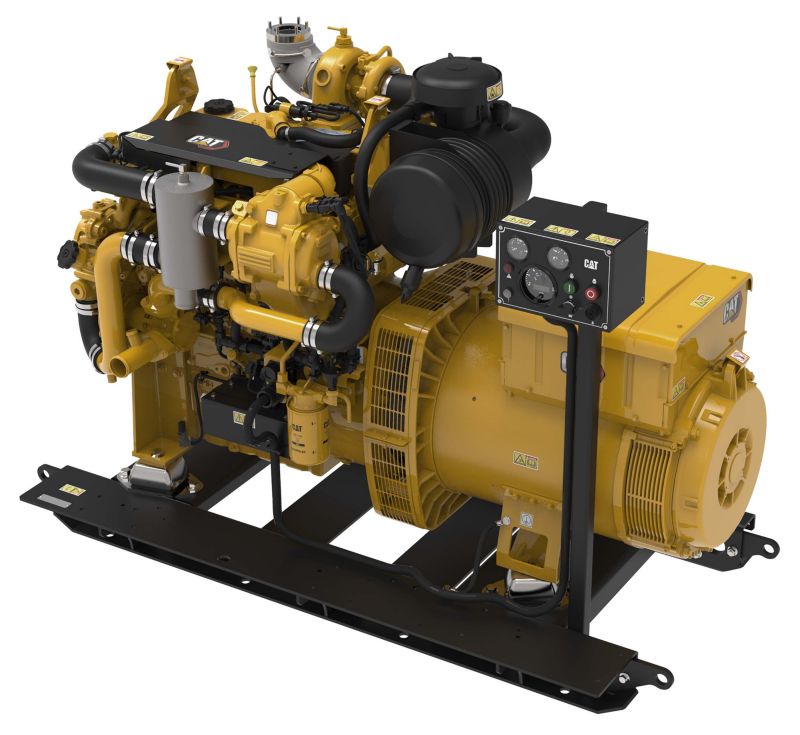

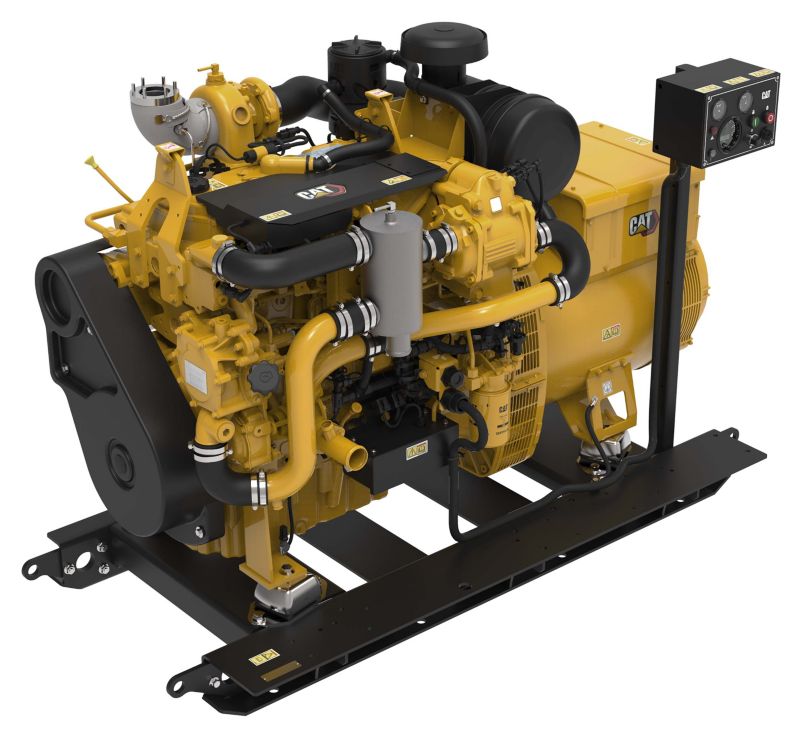

C4.4 (Electronic Control System)
Category:
Marine Generator Sets
Category:
Marine Generator Sets
Brand:
Cat
Brand:
Cat
Power Rating
Power Range:
58.0R - 118 ekW
Generator Set Specifications
Frequency:
50 / 60
Engine Specifications
Emissions:
U.S. EPA Tier 3, EU Stage V
Aspiration:
Turbocharged - Aftercooled and turbo only aspiration (Turbocharged aspiration only for 65ekW (71bkW))
Rated Engine Speed:
1500/1800 rpm
Bore:
4.13in
Stroke:
5.0in
Displacement:
269in³
Governor:
Electronic (A5 ECM)
Refill Capacity:
Lube Oil System w/Oil filter change: 11 L 2.8 gal)
Oil Change Interval:
500 hours
Cooling:
Heat exchanger, combined circuit keel cooling, or separate circuit keel cooling
Flywheel Housing:
SAE No. 03 with SAE 11.5 flywheel (126 teeth)
Dimensions & Weights
Maximum Length:
80.2in
Maximum Height:
78.7in
Maximum Width:
38.3in
Maximum Engine Dry Weight:
3389.0lb
Engine Specifications
Configuration:
In-line 4, 4-stroke-cycle diesel
Standard Equipment
cooling system
- Gear-driven jacket-water and auxiliary water pumps
cooling system
- Engine mounted air cleaner and expansion tank
- Integral plate-type oil cooler
exhaust system
- Watercooled exhaust manifold and turbocharger
fuel system
- Common Rail fuel system
general
- 3-phase AREP generators with 300% short circuit capability
- Digital Automatic Voltage Regulator
lube system
- Open crankcase ventilation system
mounting system
- Engine mounted fuel and oil filter
- Engine mounted customer interface and control relays
starting system
- 12 V or 24 V starter motor
Optional Equipment
general
- Engine shutdown sensors and shutdown controller
- Double wall high pressure fuel lines
- AC Voltage Monitoring
- Glow plugs
general
- Factory installed generator space heater kit
- MCS Certifications
