At a glance data:
Maximum Power:
577hp
Maximum Torque:
1943lb-ft @ 1400 rpm
Rated Speed:
1800-2100 rpm
Minimum Power:
456hp
Overview

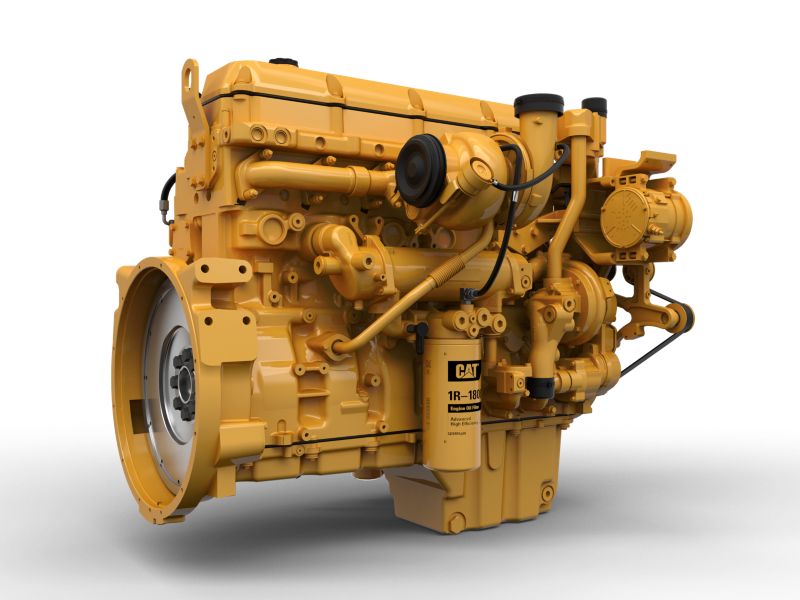

The Cat® C13B engine supplies remarkable power and torque in a smaller, lighter engine package. With a aftertreatment that is 65% smaller and 54% lighter than its predecessor and over 34 kW/L of power density, the C13B is designed to allow OEMs to downsize their engine platforms, lower installation costs and maximize uptime by providing long life in the toughest applications.
Category:
Industrial Diesel Engines
Category:
Industrial Diesel Engines
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Maximum Power:
577hp
Maximum Torque:
1943lb-ft @ 1400 rpm
Rated Speed:
1800-2100 rpm
Minimum Power:
456hp
Emission Standards
Emissions:
China Nonroad IV
General
Engine Configuration:
In-Line 6
Bore:
5.1in
Stroke:
6.2in
Displacement:
762.8in³
Compression Ratio:
15.8:1
Aspiration:
Turbocharged-Aftercooled (TA)
Combustion System:
Direct Injection
Rotation from Flywheel End:
Counterclockwise
Aftertreatment:
DOC+DPF+SCR
Engine Dimensions - Approximate
Length:
50in
Width:
39in
Height:
45in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments:
2480lb
Aftertreatment Dimensions
Length:
35.3in
Width:
31.8in
Height:
18.1in
Weight:
220lb
Standard Equipment
air inlet system
- Turbocharged
- Air-to-Air Aftercooled
- Front or rear exhaust configurations available
control system
- Electronic control system
- Over-foam wiring harness
- Automatic altitude compensation
- Power compensated for fuel temperature
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Integrated Electronic Control Unit (ECU)
- Remote fan control
cooling system
- Vertical or RH thermostat outlet
- Centrifugal water pump
- Guidance on cooling system design available through your dealer to ensure equipment reliability
flywheels and flywheel housing
- Available SAE No. 1 power take-off with optional SAE B or SAE C power take-off drives. Engine power can also be taken from the front of the engine with optional attachments.
fuel system
- Mechanical Electronic Unit Injector fuel system (MEUI-C)
- Primary fuel filter
- Secondary and tertiary fuel filters
- Fuel transfer pump
- Electronic fuel priming
lube system
- Open crankcase ventilation system
- Oil cooler
- Oil filler
- Lube oil filter
- Oil dipstick
- Gear driven oil pump
- Choice of front, rear or center sumps
- Open crankcase ventilation system with fumes disposal (OCV filter system required for EU Stage V certification engines)
power take off (pto)
- SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
general
- Caterpillar yellow paint, with optional colors available on request
- Vibration damper
- Lifiting eyes
Optional Equipment
