At a glance data:
Power Range:
3151 - 4023 bhp (2350 - 3000 bkW)
Speed Range:
1800 rpm
Emissions:
IMO II/ IMO III
Aspiration:
Sequential Turbocharged / Aftercooled
Overview

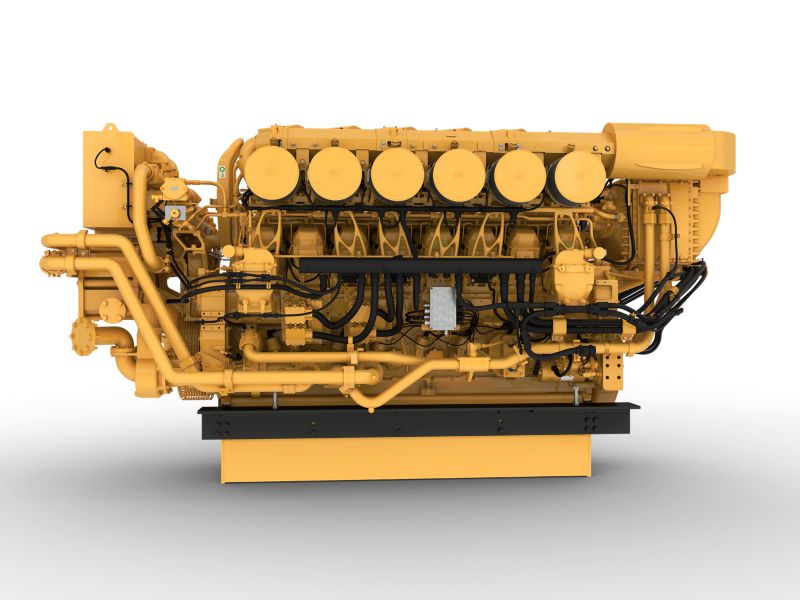

Building on the durability and reliability of the 3500 engine platform, Caterpillar Marine is pleased to offer an uprated version of the Cat 3516E Marine Propulsion Engine. The high-performance engine delivers 19% more rated power, lower ambient heat rejection, and improved acceleration time compared to previous 3516E. With a focus on serviceability and digitalization, this product provides easy connectivity and installation. It is designed for compact engine rooms and is an ideal solution for Tug, Governmental, and Yachting vessels.
Category:
Commercial Propulsion Engines
Category:
Commercial Propulsion Engines
Brand:
Cat
Brand:
Cat
Ratings
Power Range:
3151 - 4023 bhp (2350 - 3000 bkW)
Engine
Speed Range:
1800 rpm
Emissions:
IMO II/ IMO III
Aspiration:
Sequential Turbocharged / Aftercooled
Bore:
6.69in
Stroke:
8.46in
Displacement:
4766.0in³
Rotation from Flywheel End:
Counterclockwise or Clockwise
Configuration:
V 16, 4-Stroke Cycle Diesel
Dimensions & Weights
Length:
163in
Height:
89in
Width:
71in
Dry Weight:
25353lb
Standard Equipment
standard equipment
- IMO II /IMO III Emissions
- Corrosion resistant aftercooler core
- Sequential Water-Cooled Turbochargers
- Water Cooled Exhaust Manifold
- Vibration Damper and Guard
- Duplex Fuel Filtration
- Self-Cleaning, Centrifugal Oil Filtration
- Serviceable Hard Heat Shields
- Dual A5 Engine Control Modules
- Meets SOLAS Regulations
standard equipement
- LECP2 Instrument Control Panel
Optional Equipment
optional attachements
- Rear Mounted Plate-type Heat Exchanger
- SCAC & Jacket Water Expansion Tank
- Marine Classification Society Compliance
- Power Take-off
- Certified Marine Alarm & Protection System
- LECP3 Instrument Control Panel
- Sea Water Auxiliary Pump
- Mounting Rails
- CW or CCW Rotation
