At a glance data:
Power Range:
4640 - 6035 bhp (3460-4500 bkW)
Speed Range:
900 - 1000 rpm
Emissions:
IMO II, U.S. EPA Tier 4/IMO III (Cat SCR required)
Aspiration:
TTA
Overview

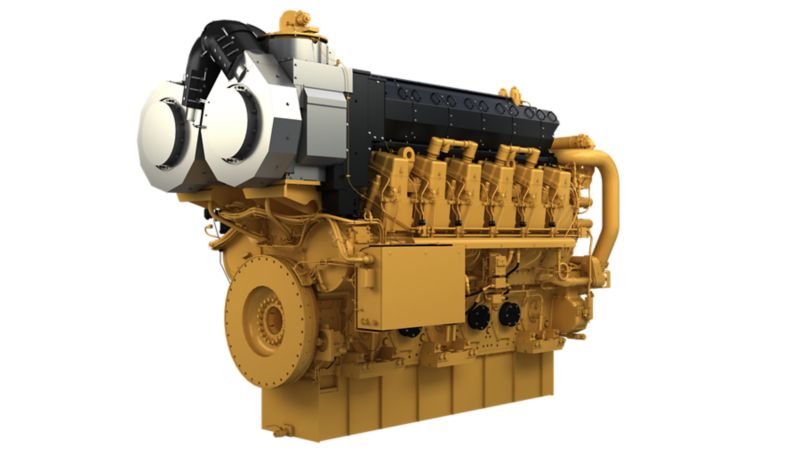

Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the C280-12 engine line. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability.All C280-12 engines ratings are IMO II compliant. Engines rated at 3700 bkW and 4060 bkW, with aftertreatment, are IMO 3/EPA T4 compliant.
Category:
Commercial Propulsion Engines
Category:
Commercial Propulsion Engines
Brand:
Caterpillar
Brand:
Caterpillar
Ratings
Power Range:
4640 - 6035 bhp (3460-4500 bkW)
Engine
Speed Range:
900 - 1000 rpm
Emissions:
IMO II, U.S. EPA Tier 4/IMO III (Cat SCR required)
Aspiration:
TTA
Bore:
11.0in
Stroke:
11.8in
Displacement:
13,456in³
Rotation from Flywheel End:
Clockwise or Counterclockwise
Configuration:
V 12, 4-Stroke Cycle diesel
Dimensions & Weights
Width:
80.0in
Height:
134.0in
Length:
182in
Dry Weight:
57276.0lb
Standard Equipment
standard equipment
- SOLAS Compliant hard heat shield system
- Gear driven coolant and oil pumps
- 50 degree vee engine block for reduced width
- Dual A4 ECM with rigid wiring harness
- 1.5% speed margin for waterjet specification
- EUI fuel system
- Duplex fuel and oil filters
- Centrifugal oil filters
- Centrifugal oil filters
- Explosion relief valves
- Air starters
Optional Equipment
optional attachements
- Opposite end drive capability
- LECP II/III Panels and CMD 5/8/13 displays
- Marine alarm and protection system
- MCS Certification
- Full power stubshaft
- Air shutoff device
- Mechanical load sharing
- Cold weather boost control valve
- Auxiliary water pump
- RH/LH service options
- Oil Mist detector
- Mounting feet options (fixed or resilient)
standard equipment
- Air driven pre/post-lube pump
- Six point engine mounting feet
