At a glance data:
Power Range:
100 - 200 ekW
Frequency:
50 / 60
Speed:
1500 rpm / 1800 rpm
Displacement:
428in³
Overview

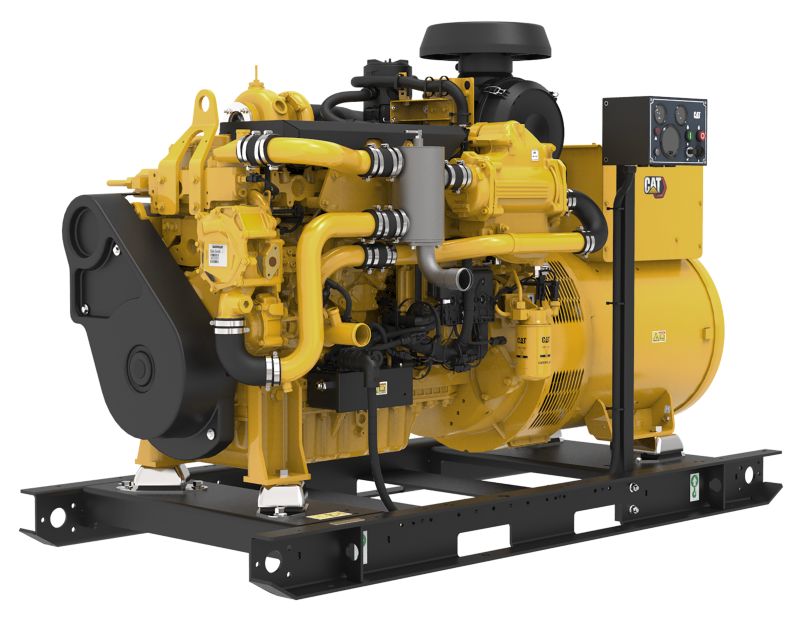

C7.1
Category:
Marine Generator Sets
Category:
Marine Generator Sets
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Power Range:
100 - 200 ekW
Generator Set Specifications
Frequency:
50 / 60
Speed:
1500 rpm / 1800 rpm
Engine Specifications
Displacement:
428in³
Aspiration:
Turbocharged / Aftercooled
Bore:
4.13in
Stroke:
5.31in
Generator Set Dimensions
Length:
76.3 in /1,940 mm
Engine Specifications
Emissions:
IMO II, IMO III (SCR required) U.S. EPA Tier 3, EU Stage V, China II
Configuration:
Inline 6, 4-Stroke Cycle Diesel
Governor:
Electronic (A5 ECM)
Refill Capacity:
Lube Oil System w/oil filter change: 21 L / 5.6 gal
Oil Change Interval:
500 hrs
Rotation from Flywheel End:
Counterclockwise
Cooling:
Heat exchanger, Seperate Circuit Keel Cooled, Combined Circuit Keel Cooled, Radiator Cooled
Generator Set Dimensions
Height:
49.7 in / 1,263 mm
Generator Set Dimensions and Weights - Dependent on Generator Type
Width:
38.0 in / 965 mm
Generator Set Dimensions
Engine Dry Weight:
3355 lb / 1,522 kg
Standard Equipment
mounting system
- Front and rear engine mounting brackets
exhaust system
- Watercooled turbocharger and exhaust manifold
fuel system
- Common Rail fuel system
- Electric fuel priming pump
general
- Self-tensioning multi-vee belt drive
- Vibration damper and guard
lube system
- Open crankcase ventilation system
- Integral engine oil cooler
starting system
- 12 V or 24 V starter motor
cooling system
- Gear-driven jacket-water pump
- Corrosion resistant sea water aftercooler
- Tube and bundle jacket water heat exchanger and gear-driven sea water pump (rubber impeller)
- Fuel cooler
Optional Equipment
lube system
- Transmission gear oil cooler (engine mounted)
- Left-hand and right-hand oil dipsticks
fuel system
- SOLAS double wall high pressure fuel lines kit
general
- Glow plugs
protection system
- Additional engine and transmission sensor packages for on or off vessel monitoring
cooling system
- Cabin heater (calorifier) connections
- Engine mounted bilge pumps and auxiliary water pumps with electromagnetic clutch
- Jacket water heater
air inlet system
- Various 6" water cooled exhaust elbow configurations
starting system
- Engine mounted secondary alternator - 24V 100 amp or 12V 175 amp
