At a glance data:
Maximum Power:
48hp
Maximum Torque:
122lb-ft @ 1600 rpm
Rated Speed:
2800 rpm
Minimum Power:
49hp
Overview

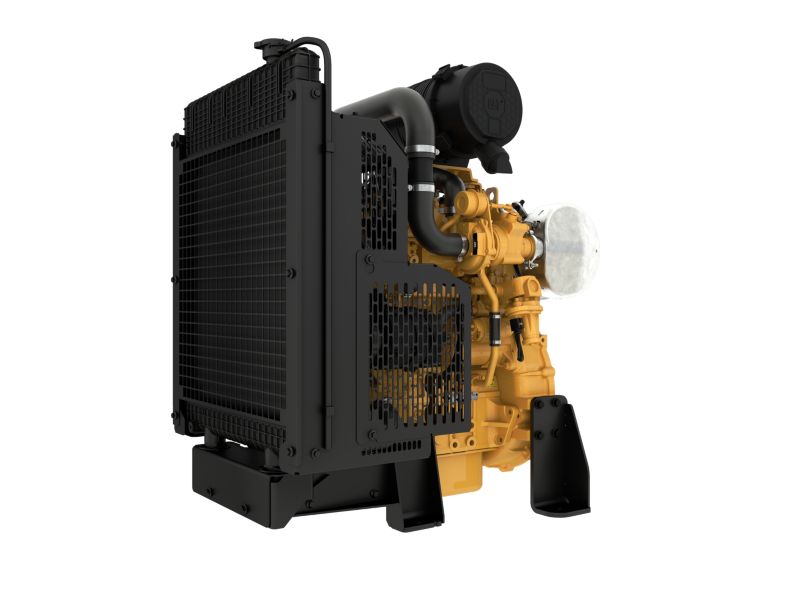

The Cat® C1.7 IPU is a turbocharged, common rail direct injection engine meeting EU Stage V, U.S. EPA Tier 4 Final and Japan 2014 (Tier 4 Final) emission standards. For ease of installation, the IPU provides full aftertreatment mounting, an integrated cooling system, a full wiring harness and mounted air filter.
Category:
Industrial Diesel Power Units
Category:
Industrial Diesel Power Units
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Maximum Power:
48hp
Maximum Torque:
122lb-ft @ 1600 rpm
Rated Speed:
2800 rpm
Minimum Power:
49hp
Emission Standards
Emissions:
EU Stage V, U.S. EPA Tier 4 Final, Japan 2014 (Tier 4 Final)
General
Engine Configuration:
In-Line 4, 4-Stroke-Cycle Diesel
Bore:
3.3in
Stroke:
3.9in
Displacement:
101in³
Compression Ratio:
17.0:1
Aspiration:
Turbocharged
Combustion System:
Direct Injection
Rotation from Flywheel End:
Counterclockwise
Aftertreatment:
DOC+DPF
Power Unit Dimensions
Length:
33.6in
Width:
23.5in
Height:
37.8in
Weight:
494lb
Standard Equipment
air system
- Turbocharged
electrical and electronics
- Alternator 12 volts 85 amp
- Starter motor 12 volts
- Glow plug starting aid
- Electronic control module - chassis mounted
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- The wiring harness, connectors and sensors are waterproof and designed to withstand harsh off-highway environments
flywheels and flywheel housing
- Flywheel and flywheel housing options
fuel system
- Electronic 2000 bar common rail fuel system
- Fuel filter with water detector
power take off (pto)
- SAE A PTO drive
general
- Cast iron engine block
- An extensive range of options are available, enabling you to prepare a specification matched precisely to your needs
Optional Equipment
