At a glance data:
Maximum Power:
110hp
Maximum Torque:
331.7lb-ft @ 1500 rpm
Rated Speed:
2200 rpm
Minimum Power:
100hp
Overview

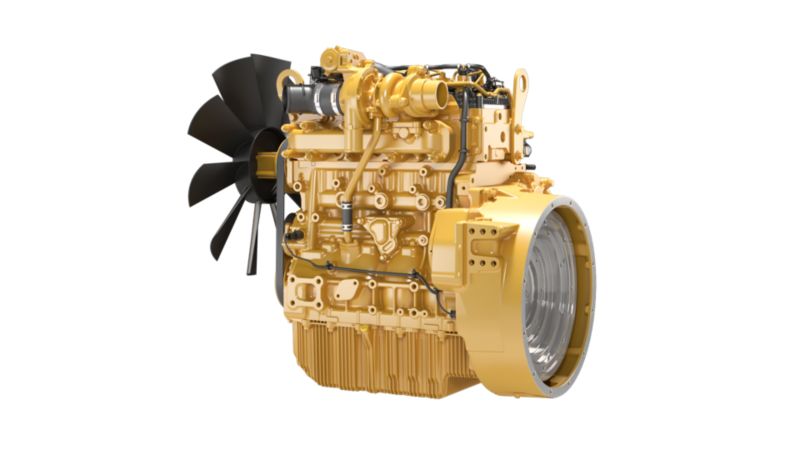

The Cat® C3.6 Industrial Diesel Engines offer the perfect balance of compact size, reliability, and performance. These compact, 4 cylinder engines provide excellent performance in power, peak and low speed torque, fuel comsumption and transient response. The China Nonroad Stage IV engine is offered in ratings ranging up to 82 kW (110 bhp) @ 2200 rpm. The C3.6 is designed to meet the needs of many industries and applications, including agricultural tractors, aircraft ground support, bore/drill rigs, chippers/grinders, compactors/rollers, compressors, forestry, irrigation equipment, material handling, mining, earthmoving equipment, paving equipment, pumps, fruit harvesters equipment, turf and underground mining equipment.
Category:
Industrial Diesel Engines
Category:
Industrial Diesel Engines
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Maximum Power:
110hp
Maximum Torque:
331.7lb-ft @ 1500 rpm
Rated Speed:
2200 rpm
Minimum Power:
100hp
Emission Standards
Emissions:
China Nonroad Stage IV
General
Engine Configuration:
In-Line 4
Bore:
3.9in
Stroke:
4.7in
Displacement:
221in³
Compression Ratio:
17.0:1
Aspiration:
Turbocharged-Aftercooled (TA)
Combustion System:
Direct Injection
Rotation from Flywheel End:
Counterclockwise
Aftertreatment:
DOC+DPF or DOC+DPF+SCR
Engine Dimensions - Approximate
Length:
26.3in
Width:
22.2in
Height:
31in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments:
839lb
Aftertreatment Dimensions
Weight:
58lb
Standard Equipment
control system
- Starter motor (12V or 24V)
- Alternator (12V or 24V)
- Electronic Control Unit (chassis mounted)
- Engine control sensors and robust wiring harness
- Data interface via CANbus J1939
flywheels and flywheel housing
- Flywheel housings – SAE 3 or SAE 4
- Choice of flywheel to match industry common hydraulic pumps and transmissions
- Side PTO with SAE A or SAE B interface
fuel system
- Fuel filter – preconnected but chassis mounted
- With water sensor
lube system
- Lubricating oil filters
- High incline oil pan – 35° continuous in all directions
general
- Cold start capability to -20° C (-4° F) with standard equipment
- Paint: Caterpillar yellow, with optional colors available at request
china nonroad iv aftertreatment / clean emissions control equipment
- Diesel Oxidation Catalyst (DOC)
china nonroad iv aftertreatment/ clean emissions control equipment
- Selective Catalytic Reduction (SCR)
- SCR Auxiliaries
Optional Equipment
