At a glance data:
Engine Model:
Cat® C15
Rated Speed:
2000 rpm
Peak Power Speed:
1600 rpm
Gross Power - SAE J1995:2014:
456hp
Overview

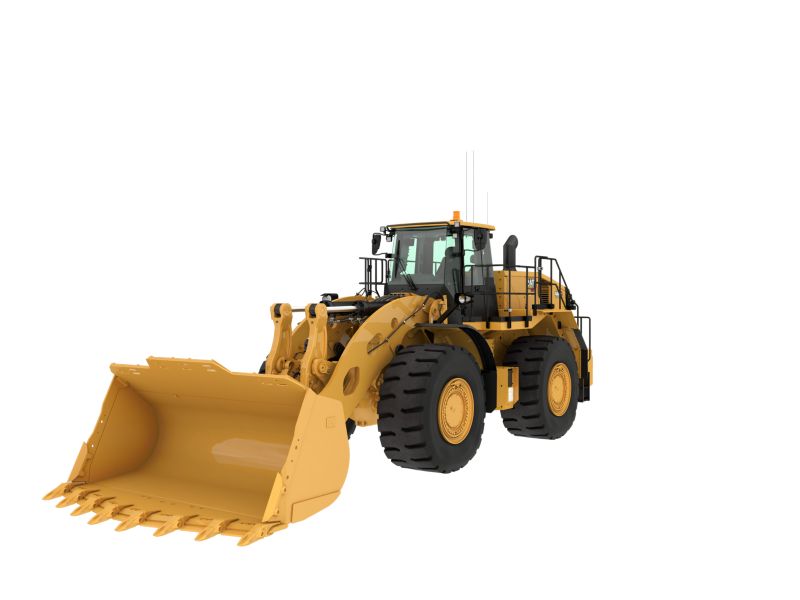

The Cat® 988 GC Wheel Loader helps you move more material at a low cost per hour for a fast return on your investment. This machine offers significant fuel savings and up to 10% lower owning and operating cost than the 988K.
Category:
Large Wheel Loaders
Category:
Large Wheel Loaders
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Model:
Cat® C15
Rated Speed:
2000 rpm
Peak Power Speed:
1600 rpm
Gross Power - SAE J1995:2014:
456hp
Net Power - SAE J1349:2011:
448hp
Bore:
5.4in
Stroke:
6.75in
Displacement:
927in³
Peak Torque (1,200 rpm) - SAE J1995:2014:
1778lbf·ft
Torque Rise:
16%
Note (1):
Two engine emission options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (2):
Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
Note (3):
Net power at the flywheel when the fan is at maximum speed is 304 kW / 408 hp per SAE reference conditions.
Operating Specifications
Operating Weight:
112426lb
Bucket Capacity Range:
6.4-7.6 m3 (8.3-10 yd3)
Rated Payload - Quarry Face:
12.5ton (US)
Cat Truck Match - High Lift:
772/773/775
Transmission
Transmission Type:
Cat planetary power shift
Forward - 1:
5mile/h
Forward - 2:
8mile/h
Reverse - 1:
5mile/h
Reverse - 2:
8mile/h
Direct Drive - Forward 1:
Lock-up disabled
Direct Drive - Forward 2:
8mile/h
Direct Drive - Forward 3:
14mile/h
Direct Drive - Forward 4:
24mile/h
Direct Drive - Reverse 1:
Lock-up disabled
Direct Drive - Reverse 2:
9mile/h
Direct Drive - Reverse 3:
16mile/h
Direct Drive - Reverse 4:
25.4mile/h
Note:
Travel speeds based on 35/65-R33 tires.
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit:
EH - Load Sense
Lift/Tilt System - Pump:
Variable displacement piston
Maximum Flow at 2,165 rpm:
159gal/min
Relief Valve Setting - Lift/Tilt:
4598psi
Cylinders, Double Acting - Lift, Bore and Stroke:
190 mm x 1216 mm (7.5 in x 48 in)
Cylinders, Double Acting - Tilt, Bore and Stroke:
170 mm x 722 mm (6.7 in x 28.4 in)
Pilot System:
Variable displacement piston
Relief Valve Setting:
500psi
Hydraulic Cycle Times
Rack Back:
3.8s
Raise:
7.5s
Dump:
3.0s
Lower Float Down:
4.6s
Total Hydraulic Cycle Time - Empty Bucket:
18.9s
Hydraulic System - Steering
Steering System - Circuit:
Pilot, load sensing
Steering System - Pump:
Piston, variable displacement
Maximum Flow at 2,165 rpm:
52gal/min
Relief Valve Setting - Steering:
4000psi
Total Steering Angle:
70°
Steering Cycle Times - High Idle:
3s
Steering Cycle Times - Low Idle:
5.2s
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).
Axles
Front:
Fixed
Rear:
Trunnion
Oscillation Angle:
+/-12.5°
Brakes
Brakes:
ISO 3450:2011
Operator's Cab
ROPS/FOPS:
Rollover Protective Structure/Falling Objects Protective Structure (ROPS/FOPS) meet ISO 3471:2008 and ISO 3449:2005 Level II standards
Sound Performance - Tier 4 Final / Stage V
Operator Sound Pressure Level (ISO 6396:2008):
73dB(A)
Machine Sound Power Level (ISO 6395:2008):
113dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*:
72dB(A)
Machine Sound Power Level (ISO 6395:2008)**:
110dB(A)
Note (1):
* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
Note (2):
** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
Note (3):
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4):
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (5):
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Performance - Tier 3 / Stage IIIA
Operator Sound Pressure Level (ISO 6396:2008):
74dB(A)
Machine Sound Power Level (ISO 6395:2008):
113dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*:
73dB(A)
Machine Sound Power Level (ISO 6395:2008)**:
110dB(A)
Note (1):
* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
Note (2):
** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
Note (3):
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4):
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (5):
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Service Refill Capacities
Fuel Tank:
141gal (US)
Cooling System:
27gal (US)
Engine Crankcase:
9gal (US)
Diesel Exhaust Fluid Tank:
5.5gal (US)
Transmission:
20gal (US)
Differential - Final Drives - Front:
49gal (US)
Differential - Final Drives - Rear:
45gal (US)
Hydraulic System Factory Fill:
94gal (US)
Note:
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: - 20% biodiesel FAME (fatty acid methyl ester) *** - 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Dimensions (Approximate) - High Lift
Ground to Top of ROPS:
13.5ft
Ground to Top of Exhaust Stacks:
13.3ft
Ground to Top of Hood:
10.7ft
Ground to Fuel Tank Clearance:
2.2ft
Rear Axle - Centerline to Bumper:
10.3ft
Front Axle Centerline to Bucket Tip:
16.7ft
Wheel Base:
12.5ft
Maximum Overall Length:
39.5ft
Ground to Lower Hitch Clearance:
1.5ft
Ground to Center of Front Axle:
3.2ft
Clearance at Maximum Lift (45° Dump):
12ft
B-Pin Height - Maximum Lift:
18.7ft
Maximum Overall Height - Bucket Raised:
25ft
Reach at Maximum Lift (45° Dump):
7.7ft
Note:
Specifications are calculated with 6.9 m3 (9.0 yd3 ) rock bucket equipped with Michelin XLDD1 35/65 R33 tires.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
electrical
- Alarm, back-up
- Alternator, single 145 amp
- Batteries, maintenance free
- Converter, 10/15 amp, 24V to 12V
- Lighting system (LED, work lights, access and service platform lighting)
- Starting and charging system, 24V
- Auxiliary jump start receptacle
operator environment
- Cab precleaner
- Lights, LED
- AM/FM radio
- Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings
- Air conditioner
- Cat Vision, rear vision camera system
- Cab, sound suppressed and pressurized, integrated rollover protective structure/falling objects protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12‑volt 5-amp) and power port
- Controls, lift and tilt function
- Heater, defroster
- Horn, electric
- Instrumentation, gauges
– Coolant temperature
– Engine hour meter
– Hydraulic oil temperature
– Powertrain oil temperature - Light, cab, dome
- Lunchbox, beverage holders
- Mirrors, rearview (externally mounted)
- Seat, Cat Comfort Cloth, air suspension, six-way adjustable
- Seat belt minder
- Seat belt, retractable, 76 mm (3 in) wide
- Steering and Transmission Integrated Control (STIC™) system
- UV glass
- Transmission gear indicator
- Wet-Arm wipers/washers (front and rear)
– Intermittent front and rear wipers - Lights, directional
- Cat Production Measurement ready
powertrain
- Brakes, oil-cooled, multi-disc, service/secondary
- Case drain screens
- Electro hydraulic parking brake
- Engine, C15 MEUI™ diesel, turbocharged/aftercooled
- Ground level emergency engine shutdown switch
- Turbine precleaner, engine air intake
- Manual switch and automatic fuel priming
- Torque converter, neutralizer
- Transmission, planetary power shift, 4F/4R electronic control
- Cat Integrated Powered Electronics
- Automatic retarding controls
- Crankcase guard
additional equipment
- Automatic bucket lift kickout/positioner
- Base machine price includes a rim allowance
- Hydraulically driven demand fan
- Couplings, Cat O-ring face seals
- Doors, service access (locking)
- Ecology drains for engine, radiator, hydraulic tank
- Fuel tank, 535 L (141 gal)
- Hoses, Cat XT™
- Hydraulic, steering and brake filtration/screening system
- Cat Clean Emission Module
- Oil sampling valves
- Premixed 50 percent concentration of extended life coolant with freeze protection to –34° C (–29° F)
- Rear access to cab and service platform
- Steering, load sensing
- Toe kicks
- Vandalism protection caplocks
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
powertrain
- High ambient cooling – software
- Starting aid, ether, automatic
- Antifreeze -50°C (-58°F)
operator environment
- Cat Production Measurement
- CB radio-ready
- Cat Detect, object detection system
additional equipment
- Front and rear roading fenders
