At a glance data:
Overview

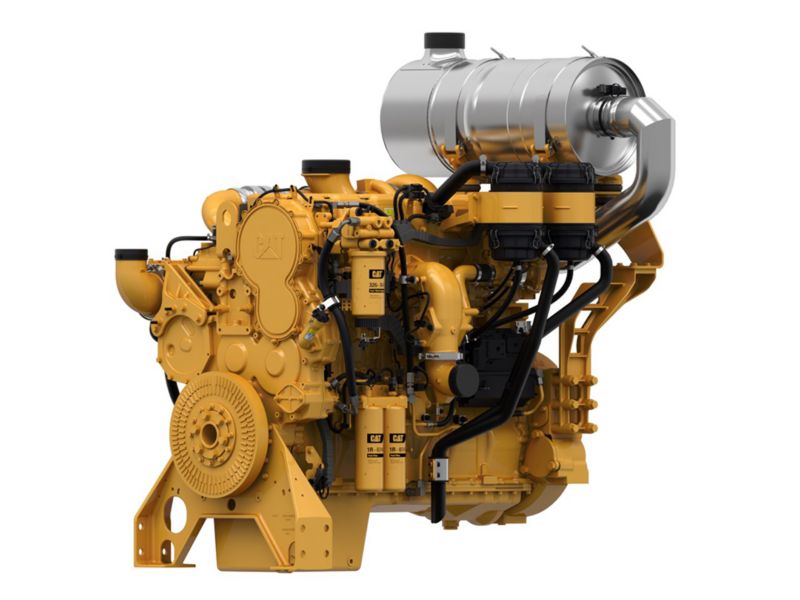

On construction sites and mining operations, in agriculture and forestry, and in a wide range of industries, Cat® C18 Industrial Power Units deliver the power, performance and durability to take on the biggest challenges. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat® industrial engine. Industries and applications powered by C18 engines include: Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Dredgers, Forestry, General Industrial, Hydraulic Power Units, Irrigation Equipment, Material Handling, Mining, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers. This information about Emissions describes the particular rating's emissions technology. For more information about emissions certification, please contact your local Cat dealer.
Category:
Industrial Diesel Power Units
Brand:
Caterpillar
Power Rating
Emission Standards
General
Power Unit Dimensions
Standard Equipment
air inlet system
- Series Twin Turbocharged
- Air-to-Air Aftercooled
- Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage V)
control system
- Electronic control system
- Over-foam wiring harness
- Automatic altitude compensation
- Power compensated for fuel temperature
- Remote fan control
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Integrated Electronic Control Unit (ECU)
- Available in 12V or 24V systems
cooling system
- Cat designed and installed cooling system provides robust performance in all applications.
flywheels and flywheel housing
- Choice of SAE No. 0 or SAE No. 1 flywheel housing
- Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage V).
fuel system
- Mechanical electronic fuel injection (MEUI)
- Primary fuel filter
- Secondary fuel filters
- Fuel transfer pump
- Electronic fuel priming
lube system
- Open crankcase ventilation system with fumes disposal (OCV filter system).
- Oil cooler
- Oil filler
- Lube oil filter
- Oil dipstick
- Gear driven oil pump
- Choice of front, rear or center sumps
- Open crankcase ventilation system with fumes disposal (OCV filter system) standard on C18 engines with ratings greater than 560 kW (US EPA Tier 4 Final, EU Stage V)
power take off (pto)
- Dual rear power take off (PTO) for SAE No. 1 flywheel housing and SAE B or SAE C drives available. SAE A, SAE B or SAE C power take off (PTO) drives.
u.s. epa tier 4 final, eu stage v aftertreatment/ clean emissions control equipment
- No coolant, fuel or electrical connection points required
- No thermal management or regeneration required
- Clean Emissions Module (CEM), consisting of a single-can Diesel Oxidation Catalyst (DOC).
- No diesel exhaust fluid (DEF) required (reduced lifelong operating cost)
- NOx Reduction System (NRS)
- Maintenance-free until major engine overhaul
Optional Equipment
