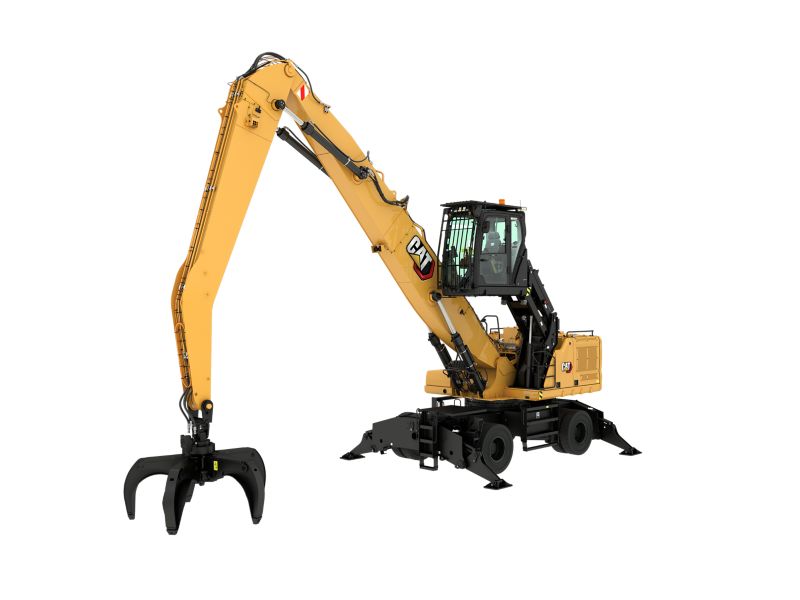

MH3032 Wheel Material Handler

new - Products
MH3032 Wheel Material Handler

At a glance data:

Engine Model:

Cat® C7.1

Net Power - ISO 9249:

201hp

Net Power - ISO 9249 (DIN):

204hp (metric)

Engine Power - Maximum - ISO 14396:

202hp

MH3032 operator view from inside the cab

Print MH3032 (07E) Material Handler - Product Brochure (Aus-NZ, Europe, Japan, N Am, S Am) MH3000 Series Material Handlers - Family Brochure (Europe, N Am) Technical Specs

Overview

The Cat^® MH3032 is a versatile, productive solution in the 30 mt size class. Drop nose and straight stick options along with an optional generator help expand versatility in scrap, waste, and recycling applications. The MH3032 helps maximize performance with its configuration and technology options for optimum production.

Category:

Wheel Material Handlers

Brand:

Cat

Engine

Engine Model:

Cat® C7.1

Net Power - ISO 9249:

201hp

Net Power - ISO 9249 (DIN):

204hp (metric)

Engine Power - Maximum - ISO 14396:

202hp

Engine Power - ISO 14396 (DIN):

205hp (metric)

Bore:

4.1in

Stroke:

5.3in

Displacement:

428in³

Biodiesel Capability:

Up to B20¹

Emissions:

Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V emission standards.

Note (1):

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.

Note (2):

¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Transmission

Maximum Travel Speed:

11.2mile/h

Drawbar Pull:

32597lbf

Maximum Gradeability:

45%

Hydraulic System

Maximum Pressure - Implements:

5076psi

Maximum Pressure - Swing:

4119psi

Maximum Pressure - Travel:

5076psi

Swing Mechanism

Swing Speed:

7r/min

Maximum Swing Torque:

60680lbf·ft

Weights

Operating Weight:

80250lb

Note:

Operating weight includes full fuel tank, 75 kg (165 lb) operator and a 2000 kg (4,410 lb) grapple. Weight varies depending on configuration.

Service Refill Capacities

Fuel Tank Capacity:

125.2gal (US)

Cooling System:

6.6gal (US)

Engine Oil:

6.6gal (US)

Rear Axle - Housing (Differential):

5.2gal (US)

Final Drive - Each:

0.6gal (US)

Powershift Transmission:

0.8gal (US)

Hydraulic System - Including Tank:

81.9gal (US)

Hydraulic Tank:

38.8gal (US)

Diesel Exhaust Fluid (DEF) Tank:

10.8gal (US)

Dimensions

Boom:

MH 8.5 m (27'11")

Stick:

6.4 m (21'0") Drop Nose

Shipping Length:

38.9ft

Machine Length:

19ft

Tail Swing Radius:

9.8ft

Counterweight Clearance:

4.8ft

Cab Height- Lowered:

11.5ft

Cab Height-Lowered with OPG:

11.6ft

Cab Height-Raised:

20ft

Cab Height-Raised with OPG:

20.2ft

Wheel Base:

10.5ft

Shipping Width:

9.8ft

Ground Clearance:

0.8ft

Undercarriage Length:

19ft

Working Ranges

Maximum Reach:

46.2ft

Boom:

MH 8.5 m (27'11")

Stick:

6.4 m (21'0") Drop Nose

Maximum Height:

50.8ft

Minimum Dump Height:

15.3ft

Maximum Depth:

16.4ft

Boom Pin Height:

35.3ft

Air Conditioning System

Note (1):

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.2 kg (2.6 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.05 kg (2.31 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Sustainability

Recyclability:

94%

Standard Equipment

note

Standard and optional equipment may vary. Consult your Cat dealer for details.

cab

Advanced sound suppressed Tip Over Protective Structure (TOPS) certified cab
High-resolution 254 mm (10") LCD touchscreen monitor
Automatic bi-level air conditioner
Jog dial and shortcut keys for monitor control
Keyless push-to-start engine control
Tilt-up left-side console
Heated and ventilated premium seat with automatic adjustable air suspension
LED dome light

cat technology

VisionLink™
Remote Flash and Remote Troubleshoot
Cat Payload

electrical system

Maintenance-free battery
LED lights on chassis (Left Hand [LH], Right Hand [RH]) and counterweight
Centralized electrical disconnect switch
Programmable time-delay LED working lights after engine shutdown

engine

Cat C7.1 diesel engine
Three selectable modes: Power, Smart, Eco
Up to 3000 m (9,840 ft) altitude capability without engine power de-rate
Cold starting capability down to -18°C (0°F)
On-demand hydraulic cooling fan with auto-reverse function

hydraulic system

Boom and stick lowering control check valves
Boom and stick regeneration circuits
Electronic main control valve
Automatic hydraulic oil warm up
High performance hydraulic return filter

safety and security

Rear and right-side-view cameras
Caterpillar One Key Security System
Travel alarm
Lockable external tool/storage box
Ground-level accessible secondary engine shutoff switch
2D E-fence
Cab Avoidance
Swing Assist
Rear window emergency exit

undercarriage and structures

All wheel drive
Automatic brake/axle lock
Creeper speed
Electronic swing and travel lock
Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force
Lockable, oscillating front axle with remote greasing point
Front, right hand side (RHS), and left hand side (LHS) cab access
Two speed hydrostatic transmission
Counterweight 6000 kg (13,250 lb)
