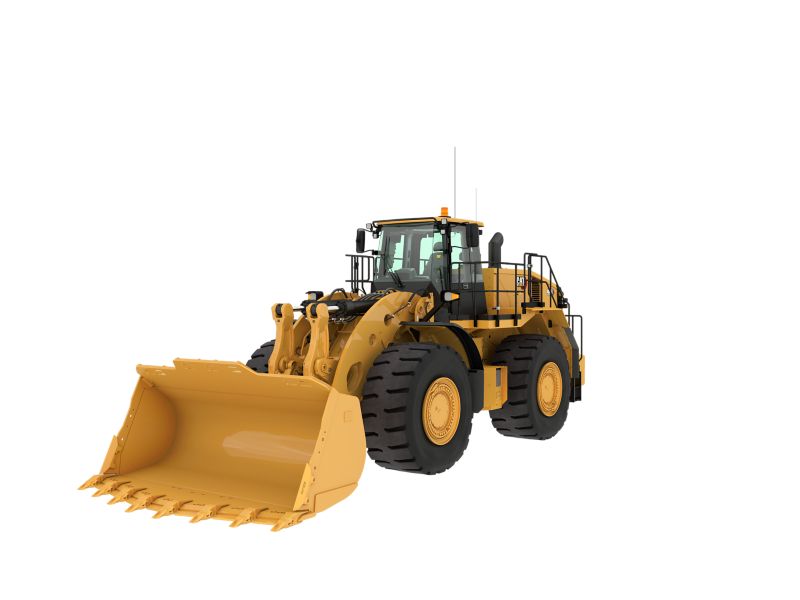

At a glance data:
Engine Power - ISO 14396:2002:
449hp
Engine Model:
Cat® C15
Peak Power Speed:
1600
Gross Power - SAE J1995:2014:
456hp

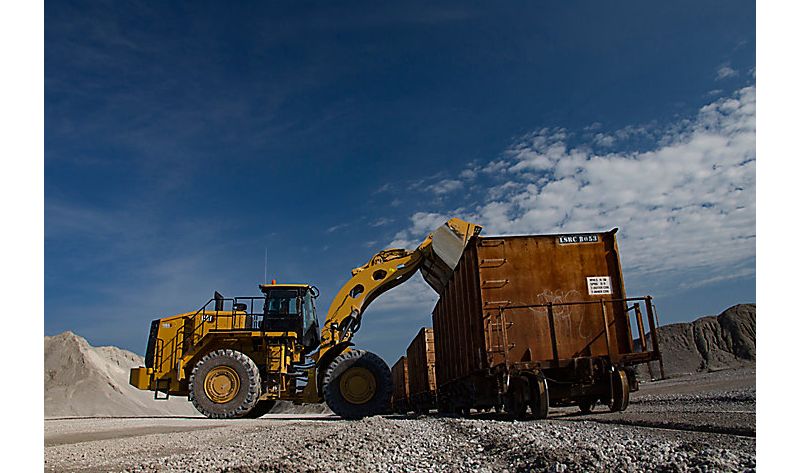

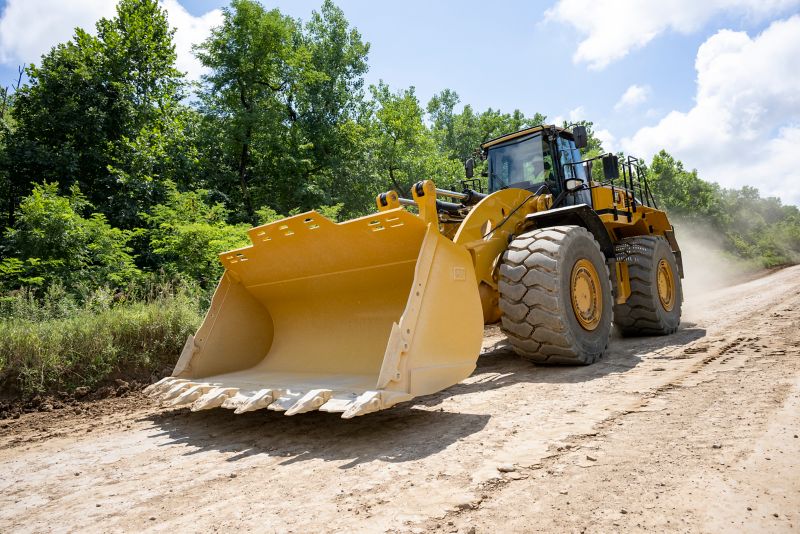

Overview
Cat® Large Wheel Loaders are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. The 986 builds upon this legacy of durability, performance, safety, operator comfort, serviceability and sustainability.
Category:
Large Wheel Loaders
Category:
Large Wheel Loaders
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Power - ISO 14396:2002:
449hp
Engine Model:
Cat® C15
Peak Power Speed:
1600
Gross Power - SAE J1995:2014:
456hp
Net Power - SAE J1349:2011:
373hp
Rated Speed:
2000
Rated Speed - 2,000 rpm - EEC 80/1269:
373hp
Rated Speed - 2,000 rpm - ISO 9249:
373hp
Bore:
5.4in
Stroke:
6.75in
Displacement:
927in²
Peak Torque (1,200 rpm) - SAE J1995:2014:
1778lb/ft
Torque Rise:
16%
Note (1):
Two engine emission options are available: 1. Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards. 2. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (2):
Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
Operating Specifications
Operating Weight - Standard:
97785lb
Bucket Capacity Range:
5.0-10.3 m³ (6.5-13.5 yd³)
Operating Weight - High Lift:
104005lb
Rated Payload - Standard (Quarry Face):
11ton (US)
Rated Payload - Loose Material (Standard):
14ton (US)
Rated Payload - High Lift (Quarry Face):
11ton (US)
Rated Payload - Loose Material (High Lift):
12.1ton (US)
Cat Truck Match - Standard:
770/735/740/745
Cat Truck Match - High Lift:
772/773
Transmission
Transmission Type:
Cat planetary power shift
Forward - 1:
5mile/h
Forward - 2:
8mile/h
Direct Drive - Forward 2:
8mile/h
Direct Drive - Forward 3:
14mile/h
Direct Drive - Forward 4:
24mile/h
Reverse - 1:
5mile/h
Reverse - 2:
8mile/h
Direct Drive - Reverse 2:
9mile/h
Direct Drive - Reverse 3:
16mile/h
Direct Drive - Reverse 4:
25.4mile/h
Hydraulic System - Lift/Tilt
Lift/Tilt System - Circuit:
Load Sense
Lift/Tilt System - Pump:
2 × 110 cc variable displacement
Maximum Flow at 2,165 rpm:
123gpm
Relief Valve Setting - Lift/Tilt:
4050psi
Lift Cylinder - Bore:
7.5in
Lift Cylinder - Stroke:
45in
Tilt Cylinder - Bore:
6.7in
Tilt Cylinder - Stroke:
28.4in
Hydraulic Cycle Times
Rack Back:
4.5s
Raise:
9s
Dump:
3.5s
Lower:
5.2s
Lower Float Down:
4.3s
Total Hydraulic Cycle Time:
21.3s
Hydraulic System - Steering
Steering System - Circuit:
Load Sense
Steering System - Pump:
Piston, variable displacement
Maximum Flow at 1,400 rpm:
52gpm
Steering Cut Off Pressure:
4000psi
Total Steering Angle:
70°
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.8 kg (3.9 lb) of refrigerant, which has a CO2 equivalent of 2.574 metric tonnes (2.837 tons).
Axles
Front:
Fixed
Rear:
Trunnion
Oscillation Angle:
±12.5°
Oscillation Angle - Chain Arrangement:
±8.5°
Brakes
Brakes:
ISO 3450:2011
Operator's Cab
ROPS/FOPS:
ROPS/FOPS meet ISO 3471:2008 (ROPS) and ISO 3449:2005 Level II (FOPS)
Service Refill Capacities
Fuel Tank:
141gal (US)
Fuel Tank - Short Lift:
127gal (US)
Cooling Systems:
26gal (US)
Crankcase:
9gal (US)
Diesel Exhaust Fluid Tank:
6gal (US)
Transmission:
20gal (US)
Axle Oil - Differentials and Final Drives - Front:
49gal (US)
Axle Oil - Differentials and Final Drives - Rear:
45gal (US)
Hydraulic System Factory Fill:
87gal (US)
Hydraulic System - Tank Only:
34gal (US)
Sound Performance - Tier 4 Final / Stage V
Operator Sound Pressure Level (ISO 6396:2008):
73dB(A)
Machine Sound Power Level (ISO 6395:2008):
113dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*:
72dB(A)
Machine Sound Power Level (ISO 6395:2008)**:
110dB(A)
Note (1):
* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
Note (2):
** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
Note (3):
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4):
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (5):
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Sound Performance - Tier 3 / Stage IIIA
Operator Sound Pressure Level (ISO 6396:2008):
74dB(A)
Machine Sound Power Level (ISO 6395:2008):
113dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*:
73dB(A)
Machine Sound Power Level (ISO 6395:2008)**:
110dB(A)
Note (1):
* For machines in European Union countries and in countries that adopt the “EU Directives” and “UK Directives.”
Note (2):
** European Union Directive “2000/14/EC” as amended by “2005/88/EC” and UK Noise Regulation 2001 No. 1701.
Note (3):
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (4):
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70% of the maximum engine cooling fan speed.
Note (5):
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Dimensions (Approximate) - Standard Lift Linkage
Ground to Top of ROPS:
13.5ft
Ground to Top of Exhaust Stacks:
13.3ft
Ground to Top of Hood:
10.7ft
Ground to Center of Front Axle:
3.2ft
Ground to Fuel Tank Clearance:
2.3ft
Ground to Lower Hitch Clearance:
1.5ft
Reach - Maximum Lift:
7.1ft
Clearance at Maximum Lift:
10.1ft
B-Pin Height - Maximum Lift:
16.1ft
Maximum Overall Height - Bucket Raised:
22.4ft
Rear Axle - Centerline to Bumper:
10.3ft
Wheel Base:
12.5ft
Maximum Overall Length:
36.6ft
Front Axle Centerline to Bucket Tip:
13.8ft
Note:
- All dimensions are approximate.
- Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.
Dimensions (Approximate) - High Lift Linkage
Ground to Top of ROPS:
13.5ft
Ground to Top of Exhaust Stacks:
13.3ft
Ground to Top of Hood:
10.7ft
Ground to Center of Front Axle:
3.2ft
Ground to Fuel Tank Clearance:
2.3ft
Ground to Lower Hitch Clearance:
1.5ft
Reach - Maximum Lift:
7.4ft
Clearance at Maximum Lift:
11.6ft
B-Pin Height - Maximum Lift:
17.6ft
Maximum Overall Height - Bucket Raised:
23.9ft
Rear Axle - Centerline to Bumper:
10.3ft
Wheel Base:
12.5ft
Maximum Overall Length:
38ft
Front Axle Centerline to Bucket Tip:
15.3ft
Note:
- All dimensions are approximate.
- Specifications are calculated with a 6.1 m³ (8.0 yd³) rock bucket.
Dimensions (Approximate) - Quick Coupler and 6.1 m³ (8.0 yd³) Bucket
Ground to Top of ROPS:
13.5ft
Ground to Top of Exhaust Stacks:
13.3ft
Ground to Top of Hood:
10.7ft
Ground to Center of Rear Axle:
3.2ft
Ground to Fuel Tank Clearance:
2.3ft
Ground to Lower Hitch Clearance:
1.5ft
Reach at Maximum Lift:
8.0ft
Clearance at Maximum Lift:
10.7ft
B-Pin Height at Maximum Lift:
15.0ft
Maximum Overall Height, Bucket Raised:
20.9ft
Rear Axle Center Line to Bumper:
10.3ft
Wheel Base:
12.5ft
Maximum Overall Length:
35.0ft
Front Axle Centerline to Bucket Tip:
12.2ft
Dimensions (Approximate) - Quick Coupler and Fork
Ground to Top of ROPS:
13.5ft
Ground to Top of Exhaust Stacks:
13.3ft
Ground to Top of Hood:
10.7ft
Ground to Center of Rear Axle:
3.2ft
Ground to Fuel Tank Clearance:
2.3ft
Ground to Lower Hitch Clearance:
1.5ft
B-Pin Height at Maximum Lift:
15.0ft
Rear Axle Center Line to Bumper:
10.3ft
Wheel Base:
12.5ft
Maximum Overall Length:
35.4ft
Front Axle Centerline to Bucket Tip:
12.6ft
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
electrical
- Alarm, back-up
- Alternator, single 145 amp
- Batteries, maintenance-free
- Converter, 10/15 amp, 24V to 12V
- Lighting system (LED, work lights, access and service platform lighting)
- Starting and charging system, 24V
- Auxiliary jump start receptacle
operator environment
- Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings
- Air conditioner
- Cat Vision, rear vision camera system
- Cat Production Measurement ready
- Cab precleaner
- Cab, sound suppressed and pressurized, integrated rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 5-amp) and power port
- Controls, lift and tilt function
- Heater, defroster
- Horn, electric
- Instrumentation, gauges:
– Coolant temperature
– Fuel level
– DEF level
– Hydraulic oil temperature
– Powertrain oil temperature - Light, cab, dome
- Lunchbox, beverage holders
- Mirrors, rearview (externally mounted)
- Seat, Cat Comfort (cloth), air suspension, six-way adjustable
- Seat belt minder
- Seat belt, retractable, 76 mm (3 in) wide
- Steering and Transmission Integrated Control (STIC™) System
- UV glass
- Transmission gear indicator
- Wet-Arm wipers/washers (front and rear):
– Intermittent front and rear wipers - Lights, directional
powertrain
- Brakes, oil-cooled, multi-disc, service/secondary
- Case drain screens
- Crankcase guard
- Electro hydraulic parking brake
- Engine, C15 MEUI diesel, turbocharged/aftercooled
- Ground level engine shutdown switch
- Turbine precleaner, engine air intake
- Starting aid, ether, automatic
- Torque converter, Neutralizer
- Transmission, planetary powershift, 4F/3R electronic control
- Manual switch and automatic fuel priming
other
- Automatic bucket lift kickout/positioner
- Hydraulically driven demand fan
- Couplings, Cat O-ring face seals
- Doors, service access (locking)
- Ecology drains for engine, radiator, hydraulic tank
- Fuel tank, 535 L (141 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, steering and brake filtration/screening system
- Cat® Clean Emission Module
- Oil sampling valves
- Premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
- Rear access to cab and service platform
- Steering, load sensing
- Toe kicks
- Vandalism protection caplocks
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
powertrain
- –50° C (–58° F) antifreeze
- Engine oil change system, high speed, Wiggins
- Engine block heater 120V or 240V
- High ambient cooling – software
miscellaneous attachments
- Front and rear roading fenders
- Fast fill fuel system (Shaw-Aero)
- Cold Weather Starting (extra two batteries)
other optional configurations
- Aggregate Handler
- Block Handler
operator environment
- Cat® Detect, object detection system
- Cat Production Measurement
- AM/FM/CD/MP3 radio
- Satellite Sirius radio with Bluetooth
- LED warning strobe
- CB radio ready
- Window pull down visor
- Handrail mounted mirrors
