At a glance data:
Operating Weight - With Cab:
19,588lb
Maximum Operating Weight with Cab:
20,404lb
Standard Operating Weight with ROPS:
19,015lb
Maximum Operating Weight with ROPS:
19,834lb
Overview

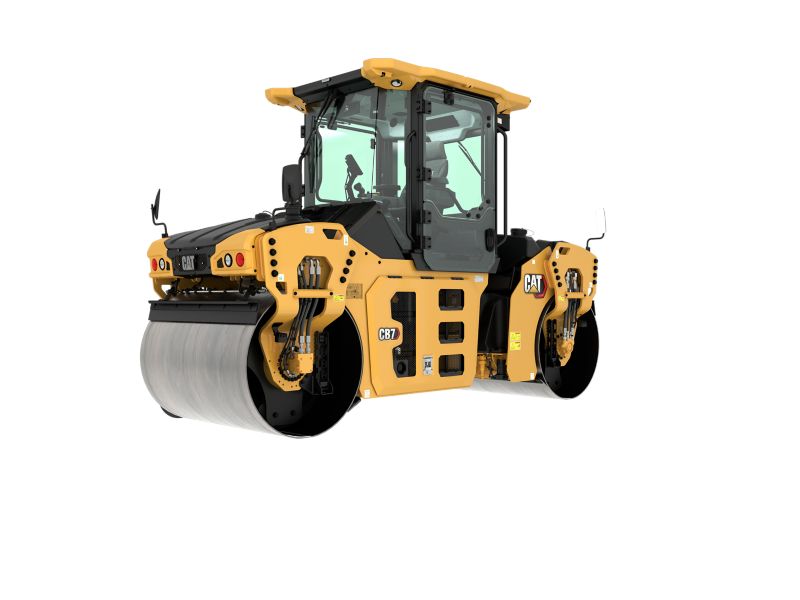

The Cat® CB7 Asphalt Compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360º seating make this compactor a perfect match for urban streets, highways, and other intermediate-type applications.
Category:
Tandem Vibratory Rollers
Category:
Tandem Vibratory Rollers
Brand:
Cat
Brand:
Cat
Weights
Operating Weight - With Cab:
19,588lb
Maximum Operating Weight with Cab:
20,404lb
Standard Operating Weight with ROPS:
19,015lb
Maximum Operating Weight with ROPS:
19,834lb
Operating Specifications
Standard Compaction Width:
59in
Maximum Compaction Width:
65in
Static Linear Load - With Cab:
172lb/in
Static Linear Load - With ROPS/FOPS:
168lb/in
Travel Speed - Maximum:
7mile/h
Dimensions
Overall Length:
179in
Overall Width:
78in
Height - With ROPS/FOPS or Cab:
118in
Wheel Base:
130in
Drum Diameter:
44in
Engine
Engine Model:
Cat® C3.6
Engine Power (1):
100hp
Vibratory System
Drum Width:
59in
Centrifugal Force per Drum - Maximum:
17,602lb
Centrifugal Force per Drum - Minimum:
11,982lb
Nominal Amplitude - High:
0.026in
Nominal Amplitude - Low:
0.012in
Vibration Selection:
Independent per drum, front only, rear only, both
Service Refill Capacities
Fuel Tank Capacity:
36gal (US)
Water Spray Tank Capacity:
195gal (US)
Standard Equipment
operating environment
- 180º seat positioning w/ sliding station
- Adjustable armrests
- Full-color display with touchscreen operation
- Platform ROPS/FOPS
- Propel lever w/ 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- Seatbelt - 76 mm (3 in) high visibility
- Vandalism protection
technology
- Visionlink®
- Remote flash
- Remote troubleshooting
powertrain
- C3.6 4-cylinder
electrical system
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Batteries - maintenance free
- Cat® Electronic Technician (Cat ET)
- Remote start / charge receptacle
vibratory system
- Two amplitude/two frequency - both drums
service and maintenance
- 2 year/2000 hour oscillatory vibration system service interval
- 3 year/3000 hour conventional vibratory system service interval
- Grouped filters with ground level access
- Maintenance-free hitch
- Remote access drains
- Sampling ports for Scheduled Oil Sampling (S•O•S℠)
- Sight gauges - engine coolant and hydraulic oil
safety
- Alarm, back up
- Horn, warning (front and rear)
- LED working lights
- Steps, front drum fuel refill
- Warning, LED safety beacons
Optional Equipment
operating environment
- 360° seat positioning w/sliding station
- Platform - Cab
- Steering wheel - elevated position, left side
- Suspension seat - with heat
- Seat headrest
technology
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Infrared asphalt temperature sensors
powertrain
- Hitch - offset
- Hydraulic oil - biodegradeable
vibratory system
- Edge Management - Cutoff, Bevel
- Mats - cocoa
- Mats - water distribution
- Rear drum oscillation kit - field installed drum
- Split Drums – front and rear
- Two amplitude/two frequency w/ oscillation
service and maintenance
- Freeze protection - water spray system
safety
- Alarm, back up
- Cameras – 360º viewing _ROPS mounted
- Cameras – front and rear bumber mounted
- LED working lights with turn signals
- LED auxiliary lighting - 1000/2000 lumin
- Mirror package
- Steps, rear drum water spray refill
