At a glance data:
Engine Power - 2,100 rpm ISO 14396:2002:
269hp
Engine Power - 2,100 rpm ISO 14396:2002:
273 hp (metric)
Engine Model:
Cat® C7.1
Gross Power - 2,100 rpm SAE J1995:2014:
273kW
Overview

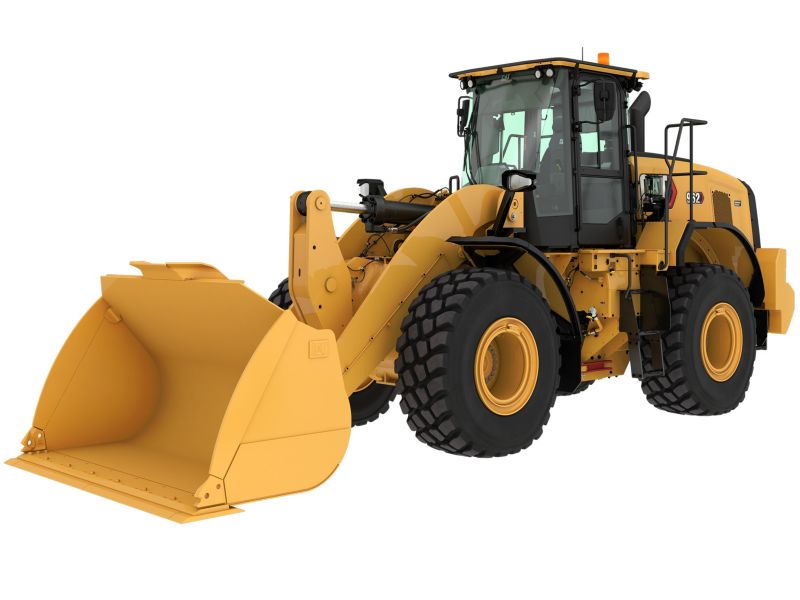

The Cat® 962 Wheel Loader brings premium performance with simple-to-use technologies, helping to boost operator efficiencies and deliver consistent high bucket fill factors, resulting in highly efficient productivity. Long service intervals help to reduce your downtime. This machine is designed to meet emission standards without interrupting operation, delivering great performance, reliability, durability, and versatility, resulting in a machine that is built to meet your needs.
Category:
Medium Wheel Loaders
Category:
Medium Wheel Loaders
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Power - 2,100 rpm ISO 14396:2002:
269hp
Engine Power - 2,100 rpm ISO 14396:2002:
273 hp (metric)
Engine Model:
Cat® C7.1
Gross Power - 2,100 rpm SAE J1995:2014:
273kW
Gross Power - 2,100 rpm SAE J1995:2014:
277 hp (metric)
Net Power - 2,100 rpm ISO 9249:2007, SAE J1349:2011:
255 hp (metric)
Engine Torque - 1,400 rpm ISO 14396:2002:
918lbf·ft
Gross Torque - 1,400 rpm SAE J1995:2014:
926lbf·ft
Net Torque - 1,400 rpm ISO 9249:2007, SAE J1349:2011:
867lbf·ft
Displacement:
427in³
Emissions:
Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Biodiesel Capability:
Up to B20¹
Note (1):
The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (2):
¹Cat engines are compatible with diesel fuel blended with following lower carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *For use of blends higher than 20% biodiesel, consult your Cat dealer. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Weights
Operating Weight:
44469lb
Note:
Weight based on a machine configuration with parallel lift Z-bar linkage, Bridgestone 23.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, front manual differential/open rear axles, powertrain guard, secondary steering, sound suppression, and a 3.3 m³ (4.3 yd³) general purpose bucket with BOCE.
Transmission
Forward - 1:
4.3mile/h
Forward - 2:
7.5mile/h
Forward - 3:
12mile/h
Forward - 4:
16mile/h
Forward - 5:
24.5mile/h
Reverse - 1:
4.3mile/h
Reverse - 2:
7.5mile/h
Reverse - 3:
16mile/h
Note:
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.
Sound
Operator Sound Pressure Level - ISO 6396:2008:
70dB(A)
Exterior Sound Power Level - ISO 6395:2008:
107dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹:
69dB(A)
Exterior Sound Power Level - ISO 6395:2008²:
104dB(A)
Note (1):
¹Including countries that adopt the EU and UK Directives.
Note (2):
²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons).
Operating Specifications
Static Tipping Load - Full 40° Turn - With Tire Deflection:
25869lb
Static Tipping Load - Full 40° Turn - No Tire Deflection:
27529lb
Breakout Force:
42489lbf
Note (1):
For a machine configuration as defined under “Weight.”
Note (2):
Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Service Refill Capacities
Fuel Tank:
68.6gal (US)
DEF Tank:
4gal (US)
Cooling System:
14.3gal (US)
Crankcase:
5.5gal (US)
Transmission:
11.4gal (US)
Differential - Final Drives - Front:
11.4gal (US)
Differential - Final Drives - Rear:
11.4gal (US)
Hydraulic Tank:
25.6gal (US)
Hydraulic System
Implement System - Maximum Pump Output at 2,340 rpm:
85gal/min
Implement System - Maximum Operating Pressure:
4250psi
Hydraulic Cycle Time - Total:
9.4s
Dimensions - Standard Lift
Height - Top of Hood:
8.75ft
Height - Top of ROPS:
11.25ft
Ground Clearance:
1.08ft
Wheel Base:
10.92ft
Overall Length - Without Bucket:
23.83ft
Hinge Pin Height at Carry Height:
2.17ft
Hinge Pin Height at Maximum Lift:
13.83ft
Lift Arm Clearance at Maximum Lift:
11.33ft
Rack Back - Maximum Lift:
55°
Rack Back - Carry Height:
51°
Width over Tires (Loaded):
9.33ft
Tread Width:
7ft
Note:
All dimensions are approximate and based on machine equipped with 3.3 m³ (4.3 yd³) general purpose bucket with BOCE and Bridgestone 23.5R25 VJT L3 radial tires.
Dimensions - High Lift
Height - Top of Hood:
8.75ft
Height - Top of ROPS:
11.25ft
Ground Clearance:
1.08ft
Wheel Base:
10.92ft
Overall Length - Without Bucket:
25.17ft
Hinge Pin Height at Carry Height:
2.5ft
Hinge Pin Height at Maximum Lift:
14.75ft
Lift Arm Clearance at Maximum Lift:
11.83ft
Rack Back - Maximum Lift:
56°
Rack Back - Carry Height:
48°
Width over Tires (Loaded):
9.33ft
Tread Width:
7ft
Note:
All dimensions are approximate and based on machine equipped with 3.3 m³ (4.3 yd³) general purpose bucket with BOCE and Bridgestone 23.5R25 VJT L3 radial tires.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Cab, pressurized, sound suppression
- EH implement controls, parking brake
- HMU steering wheel
- Seat belt, monitored
- Seat, cloth, air suspension
- Touchscreen display
- Keypad, programmable buttons
- Air conditioner, heater, defroster (auto temp, fan)
- Sun visor, front and rear, retractable
on-board technologies
- Cat Payload scale
- Autodig with auto set tires
- Operator ID & machine security
- Application Profiles
- Job Aids
- Controls help and eOMM
- Key Features Inform
- Bucket Carry Display Widget
- Remote Flash
powertrain
- Cat C7.1 engine
- Electric fuel priming pump
- Fuel-water separator and secondary fuel filter
- Engine, air precleaner
- Axles, open/open differentials (Standard depending on region)
- Axles, auto front differential lock (LHD)
- Transmission, countershaft, automatic powershift
- Torque converter with lock-up
- Service brakes, hydraulic, fully enclosed wet disc, wear indicators
- Park brake, caliper on front axles, spring applied–pressure released
- Brake pedal neutralizer with decel function
hydraulics
- Implement system, load sensing with variable displacement piston pump
- Steering system, load sensing with dedicated variable displacement piston pump
- Oil sampling valves, Cat XT™ hoses
electrical
- Starting and charging system, 24V
- Starter, electric, heavy duty
- Lights: halogen, 4 work lights, 2 front roading lights with turn signals, 2 rearview lights
monitoring system
- Front dash with analog gauges, LCD display, and warning lights
- Primary touchscreen monitor (Cat Payload, quad screens, machine settings & messages)
- Maintenance reminders
linkage
- Parallel Lift, Z-bar
- Kickouts: lift and tilt
safety
- Visibility: mirrors, rearview camera
- Window cleaning platform, front
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Door, remote opening system (Standard depending on region)
- Footrest
- Steering, joystick (LHD)
- Implement joystick (2V, 3V only)
- Entertainment radio
- CB radio ready
- Seat, suede/cloth, air suspension, heated
- Seat, leather/cloth, air suspension, heated/cooled
- Mirrors, heated
- Window, front, laminated
- Windows, front, heavy duty
- Full cab window guard
on-board technologies
- Cat Advanced Payload
- Cat Payload Printer with E-ticket
- Cat Payload for Trade (Available in Europe, Türkiye, Australia, and New Zealand. Country certifications vary. Contact your Cat dealer for more information.)
- Remote Control
powertrain
- Turbine, air precleaner
- Radiator, high debris
- Cooling fan, reversible
- Axles, auto front differential lock (HMU)
- Axles, auto differential locks front and rear
- Axles, ecology drains, AOC ready, extreme temperature seals
- Axles, oil cooler
- Ride control, dual accumulators (Standard depending on region)
hydraulics
- 3rd and 4th auxiliary functions with ride control
- Quick coupler control
electrical
- Cold start, 120V or 240V
- Lights: LED
linkage
- High lift
monitoring system
- Tire pressure monitor
additional equipment
- Cat Autolube system
- Fenders, extensions or roading
- Guards: powertrain, crankcase, window glass, cylinders, rear
- Biodegradable hydraulic oil
- High-speed oil change system
- Rear cab access
- Toolbox
safety
- Cat Detect rear radar system
- Dedicated rearview screen
- Multiview (360°) vision system
- 4-Point seat belt retractor
- Reversing strobe lights
- Seat belt monitoring beacon
- Secondary steering system, electrical (Standard depending on region)
- Wheel chocks
- Warning beacon
special configurations
- Collision Warning System with Motion Inhibit and People Detection
- Auxiliary Counterweight
- Waste and industrial
- Forestry
- Corrosion resistant
