At a glance data:
Gross Power:
636hp
Engine Power:
629hp
Engine:
Cat C18
Emissions:
U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
Overview

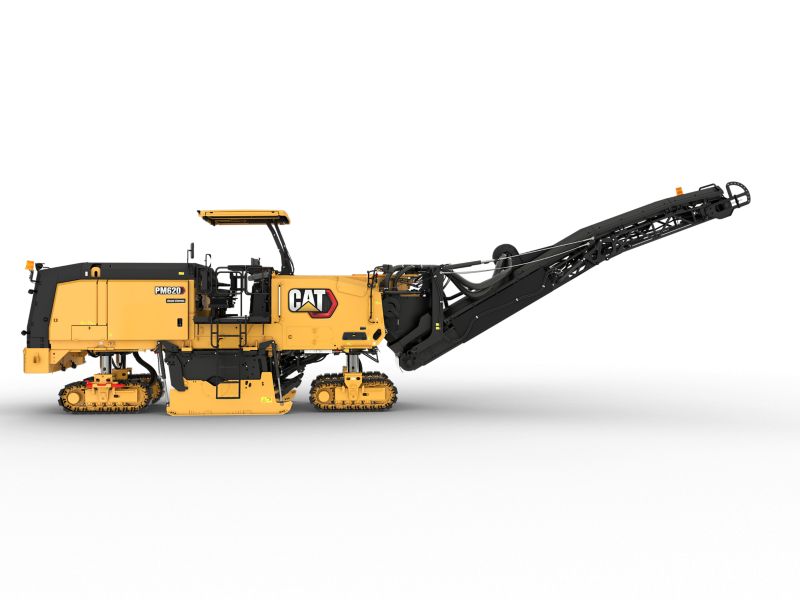

The Cat® PM620 Cold Planer with integrated Cat Grade and Slope technology, automated systems and the latest System K rotors helps you meet the demands of the job with efficiency. A comfortable work environment and intuitive controls are designed to keep operators productive throughout the day. Easy access to daily service points helps simplify maintenance. Multiple options are available to enhance versatility for high production applications.
Category:
Cold Planer
Category:
Cold Planer
Brand:
Caterpillar
Brand:
Caterpillar
Power Train
Gross Power:
636hp
Engine Power:
629hp
Engine:
Cat C18
Emissions:
U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V
Maximum Milling Speed:
328ft/min
Maximum Travel Speed:
3.7mile/h
Build Number:
02C
Cutting System
Milling Width:
79.1in
Number of Bits:
170
Note (1):
Number of bits with 15 mm spacing
Maximum Milling Depth:
13in
Rotor Speeds:
100 / 109 / 118 rpm
Minimum Left Cutting Radius:
6.56ft
Minimum Right Cutting Radius:
6.56ft
Weights
Operating Weight:
69575lb
Note (1):
Operating weight includes base machine with 75 kg (165 lb) operator, all standard equipment, inboard ski, dust abatement system, 15 mm rotor, pedestal seats, floor mats, two ground displays, 50% water, 50% fuel and full operating fluids.
Transport Weight:
66865lb
Note (2):
Transport weight includes base machine, all standard equipment, inboard ski, dust abatement system, 15 mm rotor, pedestal seats, floor mats, two ground displays, empty water, full fuel and other operating fluids.
Dimensions
Operating Length - Conveyor Up:
47.64ft
Operating Width:
10.2ft
Height - Canopy:
13.29ft
Maximum Truck Clearance:
15.94ft
Conveyor Swing:
±60 degrees from center
Transport Length:
40.78ft
Transport Width:
8.14ft
Transport Height:
9.84ft
Service Refill Capacities
Fuel Tank:
292.7gal (US)
Diesel Exhaust Fluid (DEF) Tank:
12.4gal (US)
Cooling System:
22.5gal (US)
Engine Oil:
17.2gal (US)
Hydraulic Tank:
29.9gal (US)
Water Spray System Tank:
898.2gal (US)
Sustainability
Recyclability:
95%
Standard Equipment
note
- Features, standard and optional equipment may vary by region. Please check with your local Cat dealer for specific offerings and availability in your area.
operator environment
- 12-Volt power receptacle
- Hydraulically folding canopy with LED lights and side extensions
- Ground control keypads
- Single high-resolution LCD touchscreen display
- Dual operator consoles with vertical adjustment
cat® technology
- Remote Flash
- Remote Troubleshoot
- Cat Grade and Slope
- VisionLink™ telematics
conveyor
- Grease tensioner (primary conveyor)
- Hydraulically folding conveyor
- Conveyor speed boost feature
rotor system
- Automatic plunge-cut
- Automatic grade and slope transition feature
- Obstacle jump
- Three cutting speeds
- Pneumatic bit removal tool
- Toolholder extractor
- Powered rotor turning device
powertrain
- Engine Idle Speed Management
- High capacity cooling system
- Automatic Load Control
hydraulic system
- Two independent hydraulic propel circuits
- Traction Control
service and maintenance
- Scheduled Oil Sampling (S·O·S℠) Ports
- Power hood
- Platform-level engine oil dipsticks
- Rotor chamber water spray system
- Air compressor
- Accessory drive system
- 3400 L (898 gal) onboard water tank
- Side water fill valve
- High pressure washdown
safety and security
- Platform handrails
- Signaling/warning horn
- Wide-dispersion LED work lighting
- Rear vision camera
Optional Equipment
note
- Features, standard and optional equipment may vary by region. Please check with your local Cat dealer for specific offerings and availability in your area.
operator environment
- Dual high-resolution LCD touchscreen displays
- Dual operator consoles with vertical, sideways, and rotational adjustment
- Anti-fatigue floor mats
- Adjustable pedestal seats
- Adjustable suspension seats
- Lockable 109x45x33 cm (43x18x13 in) storage chest
- Windscreens (front and rear)
cat® technology
- VisionLink™ Productivity
- Inboard ski
- Single sonic grade control sensor
- Sonic averaging system for grade control
- High-resolution LCD touchscreen display (for ground level grade controls)
conveyor
- Dust extraction system
- Additional spray bars (dust control)
- Conveyor release valve
rotor system
- Pendant control for rotor turning device
- System K Rotor - Coarse (25 mm)
- System K Rotor - Coarse (18 mm)
- System K Rotor - Standard (15 mm)
- System K Rotor - Fine (8 mm)
- System K Rotor - Micro (6 mm)
- System H Rotor - Micro (6 x 2 mm)
- Cat Diamond bits
- Bit bucket trays
powertrain
- CE certificate
hydraulic system
- Cat Bio HYDO™ Advanced biodegradable hydraulic oil
- High ambient hydraulic oil
service and maintenance
- Low pressure washdown
- Water tank transfer pump
- Fuel transfer pump
- Fast fill fuel tank
safety and security
- Multi vision cameras (front conveyor, 2 magnetic mount)
- Enhanced LED lighting package (perimeter, rotor service and water level)
- Magnetic LED work light
- Warning beacon (fixed or magnetic mount)
- Truck signal lights
