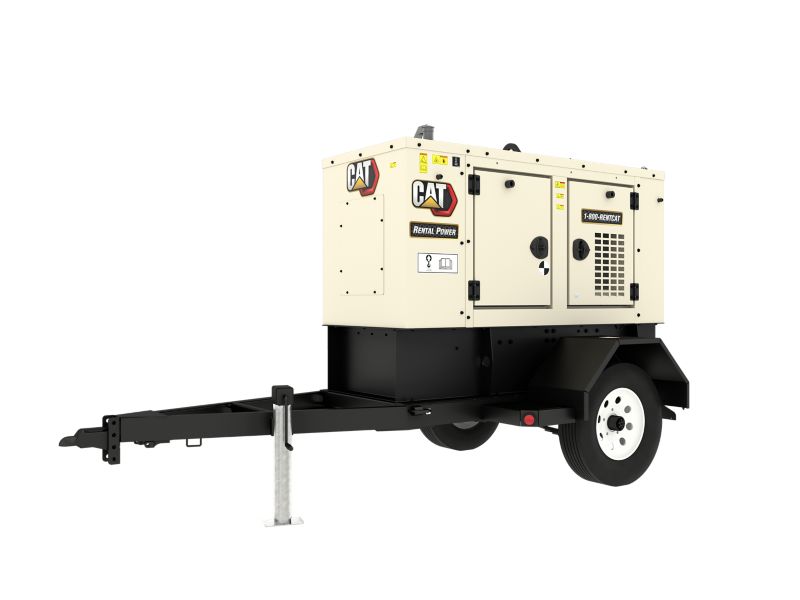

XQ20

At a glance data:

Rating Prime:
16 ekW (20 kVA)
Frequency:
60 Hz
Voltage:
208 - 480 V
Engine:
C1.5T
Print XQ20 Rental Generator Set Spec Sheet Cat Gensets Rating Guide

Overview

From planned events to unplanned power outages, having a temporary power plan in place is crucial to ensuring the power you need is there when you need it. Cat® Rental Power is always standing by to get you set up and running quickly with the largest fleet of generator sets and ancillary equipment. Plus, we have over 1,600 worldwide locations to support you along the way. Whatever your business, whatever your needs, count on Cat Rental Power.

Category:
Mobile Generator Sets

Brand:
Caterpillar

Generator Set

Rating Prime:
16 ekW (20 kVA)
Frequency:
60 Hz
Voltage:
208 - 480 V

Engine

Engine:
C1.5T
Fuel:
Diesel

Dimensions

Width:
65in
Height:
74in
Length:
128in
Weight:
2685lb

Noise rating (with enclosure)

Sound Power @ 7 meters (23 feet) @ All Ratings:
61 dB(A)

Standard Equipment

cat c1.5t diesel engine

  • Heavy-duty.

generator

  • 1514B Frame

control panel

  • GCCP 1.3 Digital set mounted controller

cat connect remote monitoring

  • Provides package monitoring and management

cooling system

  • Package mounted radiator with vertical air discharge.
    Filled from factory

charging / starting system

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

fuel system

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

air filter

  • Cyclonic/paper with dust cup and service indicator

distribution

  • Single, robust enclosure for controls and distribution c/w 3 pole circuit breaker and safety cut off

structure

  • Polymeric Fuel Tank Design with Metal Secondary Wall.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

exhaust

  • Integrated spark arresting silencer

lube oil

  • On engine oil filter. Filled from factory

general

  • Factory tested and inspected

Optional Equipment
