At a glance data:
Rated Speed:
1400rpm
Emissions:
Lean Burn: EPA NSPS Site Compliant Capable with Customer Supplied Aftertreatment, 0.5 g/bhp-hr NOx
Minimum Rating:
1380BHP
Length:
96in
Overview

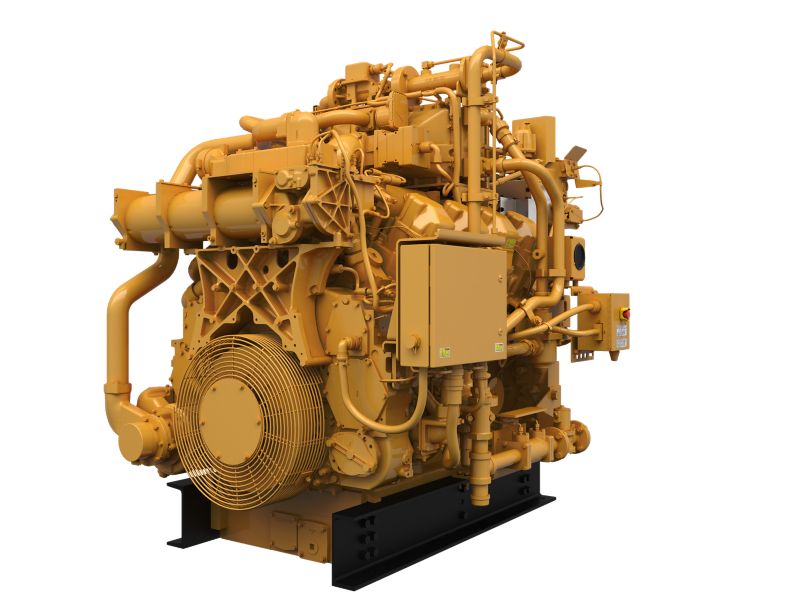

The line of G3500 engines brings versatility, uptime, and low operating cost to your gas compression operation. They are equipped with ADEM A3 technology that enables highest performance and safety while maintaining low emissions. Ideal applications for G3500 engines include gas lift, gas gathering, and wellhead gas compression. The Cat G3508J gas engines are rated at 515 bkW (690 bhp) @ 1400 rpm and are NSPS site compliant capable with customer-provided air-fuel ratio control and aftertreatment.
Category:
Gas Compression Engines
Category:
Gas Compression Engines
Brand:
Cat
Brand:
Cat
Engine Specifications
Rated Speed:
1400rpm
Emissions:
Lean Burn: EPA NSPS Site Compliant Capable with Customer Supplied Aftertreatment, 0.5 g/bhp-hr NOx
Minimum Rating:
1380BHP
Length:
96in
Width:
79.9in
Height:
84.3in
Weight - Dry:
13306lb
Maximum Rating:
690BHP
Displacement:
2105in³
Aspiration:
Turbocharged - 2 Stage Aftercooled
Oil Change Interval:
2000 hours
Stroke:
7.5in
Bore:
6.7in
Governor:
Electronic (ADEM A3)
Combustion:
Lean Burn
Lube Oil System:
423 L (112 gal)
Rotation from Flywheel End
Rotation from Flywheel End:
Counterclockwise
Engine Specifications
Flywheel and Flywheel Housing:
SAE No. 00
Flywheel Teeth:
183
Flywheel Teeth
Flywheel Teeth:
183
Standard Equipment
air inlet system
- Axial flow air cleaners
- Single element canister type with service indicator
cooling system
- Two-stage charge air cooling system
- Engine cooling and charge air cooling thermostats
exhaust system
- Watercooled exhaust manifolds
- Dry Turbocharger housings
- Water-cooled exhaust elbow
flywheels & flywheel housings
- SAE No. 00 flywheel housing
- SAE standard rotation
- SAE No. 21 Flywheel
fuel system
- 7-40 psig gas supply
- Electronic fuel metering valve
- Gas pressure regulator
- Gas shutoff valve
- Fuel System
instrumentation
- Remote-mounted Advisor control panel
- Interconnect harness
lubrication system
- Crankcase breather — top mounted
- Oil cooler
- Oil filter — RH
- Oil pan — shallow
- Oil sampling valve
- Turbo oil accumulator
mounting system
- Rails
protection system
- Electronic shutoff system
- Gas shutoff valve
general
- Paint — Cat yellow
- Crankshaft vibration damper and guard
power take offs
- Front lower LH accessory drive
- Front housing, two sided
Optional Equipment
air inlet system
- Remote air inlet adapters
- Rain Shield
charging system
- CSA Alternator (24V, 65A)
exhaust system
- Flexible fittings
- Elbows
- Flange
- Mufflers
fuel system
- Fuel filter
lubrication system
- Oil bypass filter
- Deep sump oil pan
- Air prelube pump
- Lubricating oil
- Oil pan drain
power take-offs
- Front stub shaft
protection system
- Explosion relief valves, status control box interconnect wiring harness
starting system
- 90 psi starter
- 150 psi starter
eu certification
- EEC DOI certification
