At a glance data:
Continuous Rating:
2567 / 2552 ekW @ 1.0pf
Fuel Type:
Natural Gas & Propane
Maximum Electrical Efficiency:
46.0%
Frequency:
50 / 60 Hz
Overview

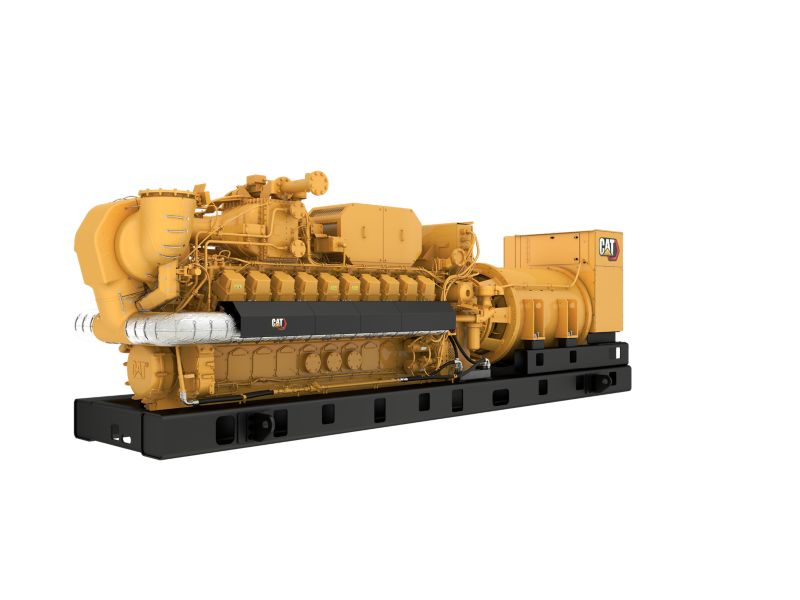

G3520K Gas Generator
Category:
Gas Generator Sets
Category:
Gas Generator Sets
Brand:
Caterpillar
Brand:
Caterpillar
Generator Set Specifications
Continuous Rating:
2567 / 2552 ekW @ 1.0pf
Fuel Type:
Natural Gas & Propane
Maximum Electrical Efficiency:
46.0%
Frequency:
50 / 60 Hz
RPM:
1500
Engine Specifications
Engine Model:
G3520K
Displacement:
5956in³
Aspiration:
TA
Bore:
6.7in
Stroke:
8.5in
Generator Set Dimensions
Length:
290.35in
Width:
72.05in
Height:
96.97in
Dry Weight - Genset:
52249.56lb
Generator Set Specifications
Frequency:
50/60 Hz
Engine Specifications
Compression Ratio:
10.5:1
Standard Equipment
control panel
- ECS 100 with colored HMI
- Ethernet Telematics
air inlet
- Two-element single-stage air cleaner with enclosure and service indicator.
cooling
- Engine driven water pumps for jacket water and aftercooler.
- Jacket water and SCAC thermostats.
- ANSI/DN customer flange connections for JW inlet and outlet.
- SCAC control valve
governing system
- ADEM A6 4-20mA (0-5V) Speed Input
exhaust
- Center section cooled turbocharger with Cat flanged outlet.
- Dry exhaust manifolds, insulated and shielded.
- Individual exhaust port and turbocharger outlet wired to Integrated Tmeperature Sensing Module (ITSM) with GECM providing alarms and shutdowns.
fuel system
- Electronic fuel metering valve
- Throttle plate, 24V DC actuator, controlled by GECM
- EN7462/CSAB149:3, NFPA37
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve.
generator
- IVR - Intergrated voltage regulator
- Crankshaft Vibration Damper and Guard
- Busbar connections
- Paint- Caterpillar Yellow except rails gloss black
- Winding temperature detectors
- Operation and maintenance manuals
- Parts book
- Anti-condensation space heater
- RH/LH Service
- SR5
- Reactive droop
lube
- Electric Pre-lube pump
starting/charging
- 24V starting motors
ignition system
- Electronic Ignition System (controlled by ADEM 6)
- In Cylinder Pressure Sensor (ICPS)
Optional Equipment
control panel
- ECS 200 with colored HMI
- Remote HMI displays
- Cellular telematics
- Expandable I/O
- Expandable Ethernet modules
- CAN 2 connection point
- Load Share Module
lube
- Ship oil filled or dry(Ultra40)
- SYNHP (only ship dry)
- Oil Level Regulator
starting/charging
- Battery with cables and rack (shipped loose)
- Engine barring device
- Jacket water heater (220/400/240/480V)
- 60A, 24V charging alternator (requires engine driven pumps)
circuit breaker
- LSI/LSIG/LSIG-P Long-Time, Short-Time, Instantaneous Annunciator, ground fault protect, ground fault annunciate
- Non-par/Par Breakers
- Rear-mounted
- 5000A 3-Pole IEC/ULCSA Rated Circuit Breakers
air inlet
- Off Engine Air Cleaner - Mounting Brackets and Piping
cooling
- Inlet/Outlet RH and LH connections
- Coolant level drain line with valves
exhaust
- Muffler and spark-arresting muffler with companion flanges
- Flange, Elbow, and Flexible Fitting
- Exhaust Expander
fuel system
- Gas Knockdown Regulator
- Fuel filter
- Gas pressure regulator
- Gas shutoff valve 24V, Energized-To-Run (ETR)
generator
- Bearing temperature detectors
- Cable access box
- Low voltage extension box
- Manual voltage control
- NEMA/IEC Busbars
- Generator air filter
- Medium and high voltage generators and attachment
- Generator space heater (with optional heater control)
- Thermostate for space heater
- Current transformer, differential current transformer, potential transformer
general
- Digital diagnostic tool
- Special paint order
- Tool set
- US AID Emblem
package
- Spring Isolators
- Seismic Isolators
grid code compliance
- 50 Hz: Germany (HV/MV), Great Britain, Italy (HV/MV), Belgium, Polan, Netherlands, Romania, Spain, France, Czech Republic, Greece, Ireland, and European Standard
