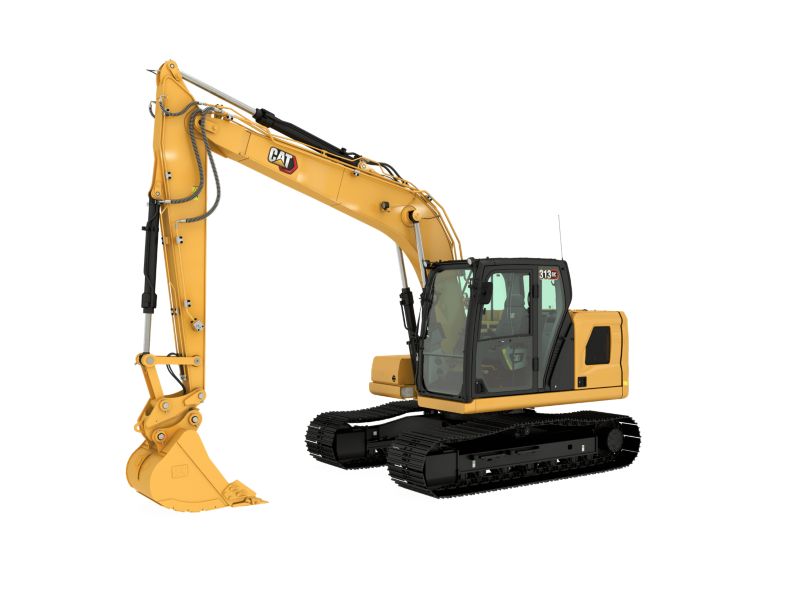

315 Hydraulic Excavator

new - Products
315 Hydraulic Excavator

At a glance data:

Net Power - ISO 9249:

108hp

Engine Model:

Cat C3.6

Print 315 (07H) Hydraulic Excavator - Product Brochure (Aus-NZ) 315 (07H) Hydraulic Excavator - Product Brochure (N Am, Europe, Aus-NZ) Technical Specs Technical Specs

Overview

The CatÂ® 315 excavator offers excellent performance in a compact design. Standard, easy-to-use Cat technologies boost operator efficiencies and improve jobsite productivity while a large, ergonomic cab provides a comfortable working environment. Combined with simplified maintenance points, the 315 keeps you working, quickly and efficiently.

Category:

Small Excavators

Brand:

Cat

Engine

Net Power - ISO 9249:

108hp

Net Power - ISO 9249 (DIN):

110hp (metric)

Engine Model:

Cat C3.6

Engine Power - ISO 14396:

110hp

Engine Power - ISO 14396 (DIN):

111hp (metric)

Bore:

4in

Stroke:

5in

Displacement:

220in³

Biodiesel Capability:

Up to B20¹

Emissions:

Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards.

Note (1):

Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.

Note (2):

¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Hydraulic System

Main System - Maximum Flow:

276 l/min (73 gal/min)

Maximum Pressure - Equipment:

5075psi

Maximum Pressure - Travel:

5075psi

Maximum Pressure - Swing:

3770psi

Swing Mechanism

Swing Speed:

12r/min

Maximum Swing Torque:

25815lbf·ft

Weights

Operating Weight:

34000lb

Service Refill Capacities

Fuel Tank Capacity:

49gal (US)

Cooling System:

4gal (US)

Engine Oil:

2gal (US)

Final Drive - Each:

1gal (US)

Hydraulic System - Including Tank:

22.5gal (US)

Hydraulic Tank:

19gal (US)

DEF Tank:

6gal (US)

Dimensions

Boom:

Reach 4.65 m (15'3")

Stick:

Reach R3.0 m (9'10")

Bucket:

GD 0.68 m³ (0.89 yd³)

Shipping Height - Top of Cab:

9.3ft

Handrail Height:

9.4ft

Shipping Length:

24.4ft

Shipping Length - with Blade:

26.3ft

Tail Swing Radius:

5.2ft

Counterweight Clearance:

2.9ft

Ground Clearance:

1.4ft

Track Length:

12.3ft

Length to Center of Rollers:

10ft

Track Gauge:

6.5ft

Transport Width:

8.2ft

Working Ranges and Forces

Maximum Digging Depth:

19.7ft

Boom:

Reach 4.65 m (15'3")

Stick:

Reach R3.0 m (9'10")

Bucket:

GD 0.68 m³ (0.89 yd³)

Maximum Reach at Ground Level:

28.5ft

Maximum Cutting Height:

31.8ft

Maximum Loading Height:

23.7ft

Minimum Loading Height:

6.8ft

Maximum Depth Cut for 2440 mm (8 ft) Level Bottom:

19.1ft

Maximum Vertical Wall Digging Depth:

17ft

Minimum Working Equipment Radius:

7.3ft

Bucket Digging Force - ISO:

22180lbf

Stick Digging Force - ISO:

13330lbf

Air Conditioning System

Air Conditioning:

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 hg of refrigerant which has a CO2 equivalent of 1.144 metric tonnes.

Sustainability

Recyclability:

95%

Standard Equipment

note

Standard and optional equipment may vary. Consult your Cat dealer for details.

cab

Rollover Protective Structure (ROPS)
Air suspension heated seat, 254 mm (10") touchscreen monitor

cat technologies

VisionLink®
Remote Flash
Remote Troubleshoot
Cat Grade with 2D
Cat Assist
Cat Payload

electrical system

Maintenance free battery
LED chassis light, left-side/right-side boom lights, cab lights
Programmable time-delay LED working lights

engine

Cat C3.6 single turbo diesel engine
One-touch low idle with auto engine speed control
Auto engine shutdown
52°C (125°F) high-ambient cooling capacity without de-rate
-25°C (-13°F) cold start capability
Electric fuel priming pump
Variable speed fan
Single fuel filtration system
Double element air filter with integrated precleaner

hydraulic system

Boom and stick regeneration circuit
Auto hydraulic warm up
Auto two speed travel
Electric main control valve
Boom and stick drift reduction valve
Electric boom snubber

safety and security

Ground-level engine shutoff switch
Service platform with anti-skid plate and countersunk bolts
Signaling/warning horn
2D E-Fence

service and maintenance

Grouped engine oil and fuel filters
Ground-level engine oil dipstick
Integrated vehicle health management system
Sampling ports for Scheduled Oil Sampling (S·O·S)

undercarriage and structures

Grease lubricated track link
Tie down points on base frame
3830 kg (8,440 lb) counterweight
