Overview

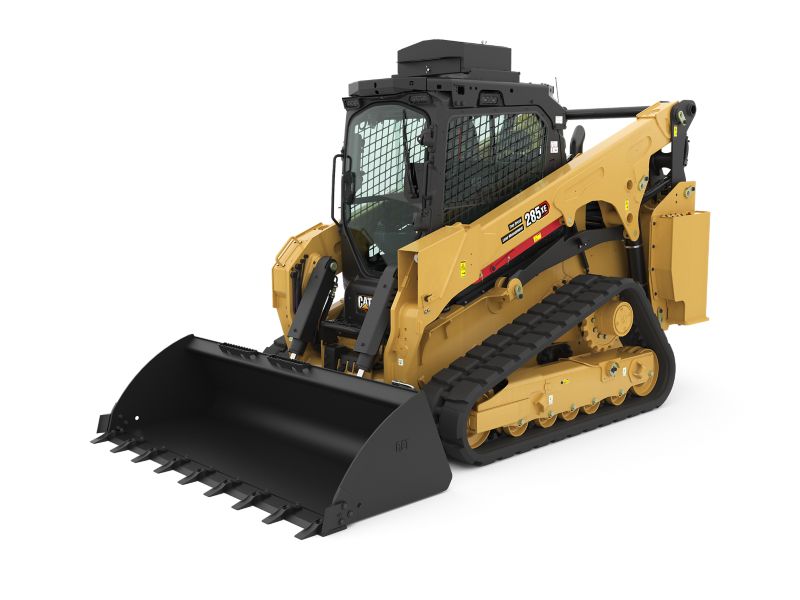

The Cat® 285 XE Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
Category:
Compact Track Loaders
Category:
Compact Track Loaders
Brand:
Cat
Brand:
Cat
Engine
Gross Power - SAE J1995:2014:
121hp
Bore:
4.7in
Displacement:
220in²
Net Power - ISO 9249:
120hp
Net Power - SAE 1349:
121hp
Peak Torque - 1,500 rpm - SAE J1995:
406lb/ft
Engine Model:
Cat® C3.6 TA (turbocharged after-cooled)
Note:
Maximum Gross Power ISO 14396:2002 (at 2200 RPM) – with High Flow Attachment connected: 100 kW (134.1 hp)
Stroke:
3.9in
Hydraulic System
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated):
80.7hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow:
34gpm
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure:
4061psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated):
46.4hp
Hydraulic Flow - Standard - Loader Hydraulic Flow:
23gpm
Hydraulic Flow - Standard - Loader Hydraulic Pressure:
3500psi
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure:
4496klb/in²
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*:
40gpm
Hydraulic Flow - XE - Hydraulic Power (calculated):
103.9hp
Weights*
Operating Weight:
13669lb
Counterweight Adds to Operating Weight:
428lb
Counterweight Adds to Operating Weight - ROC (35%):
296lb
Counterweight Adds to Operating Weight - Tip Load:
847lb
Note:
*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Service Refill Capacities
Cooling System:
4.6gal (US)
Engine Crankcase:
2.4gal (US)
Fuel Tank:
36gal (US)
Hydraulic System:
10.8gal (US)
Hydraulic Tank:
6.9gal (US)
Diesel Exhaust Fluid (DEF) Tank:
2.9gal (US)
Operating Specifications
Rated Operating Capacities - 35% Tipping Load:
4520lb
Breakout Force - Lift Cylinder:
8730lb
Breakout Force - Tilt Cylinder:
13920lb
Ground Contact Area - With 450 mm/17.7 in Track:
2724in²
Ground Pressure - With 450 mm/17.7 in Track:
5psi
Rated Operating Capacities - 50% Tipping Load:
6457lb
Tipping Load:
12915lb
Ground Pressure - With 400 mm/15.7 in Track:
5.6psi
Dimensions
Bucket Pin Height - Carry Position:
8.2in
Bucket Pin Height - Maximum Lift:
146.6in
Bucket Pin Reach - Maximum Lift:
16.3in
Clearance at Maximum Lift and Dump:
119.6in
Departure Angle:
26°
Ground Clearance:
11in
Height - Top of Cab:
87.8in
Length - Track on Ground:
72.0in
Length - With Bucket on Ground:
157.4in
Length - Without Bucket:
132.3in
Maximum Overall Height:
178in
Maximum Reach - With Arms Parallel to Ground:
50.6in
Overall Length - Track:
85.8in
Rack Back Angle - Maximum Height:
89°
Reach at Maximum Lift/Dump:
34.7in
Roll Back Angle:
27.2°
Turning Radius from Center - Bucket (racked):
94.5in
Turning Radius from Center - Coupler:
62.1in
Turning Radius from Center - Machine Rear:
74.3in
Vehicle Width (450 mm/17.7 in tracks):
81.8in
Maximum Dump Angle:
40.5°
Cab
FOPS:
ISO 3449:2005 Level I
ROPS:
ISO 3471:2008
FOPS Level II:
ISO 3449:2005 Level II (Optional)
Power Train
Travel Speed - Forward or Reverse - One Speed:
4.8mile/h
Travel Speed - Forward or Reverse - Two Speed:
7.7mile/h
Standard Equipment
standard equipment
- Quick Coupler: Manual or Hydraulic
- High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
- Steel Imbed Rubber Track – 400 mm (15.7 in) block tread, 450 mm (17.7 in) bar tread, 450 mm (17.7 in) block tread
- Dual Flange Front Idler/Single Flange Rear Idler or Triple Flange Front/Rear Idlers
performance packages
- Performance Package HP5: XE Hydraulics
- Performance Package HP6: XE Hydraulics, Rear Auxiliary Ready
comfort packages
- Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)
technology packages
- T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
- T5 – T4 + 2 additional side view cameras.
radio
- Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
- Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
- Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm (0.13 in) AUX input, and BT microphone. Only for use with enclosed cab. Availability varies by country.
product link™
- Product Link™ Basic series PL243
- Product Link Elite series PLE643
cooling fan
- On-demand, variable speed hydraulic cooling fan
- On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation
guarding and sealing packages
- HD1– intermediate guarding and sealing† (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding.) †Some equipment varies by region.
- LM1 – intermediate level land management guarding and sealing† (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF)/ Emission component wraps, light guarding, quick disconnect guarding, hydraulic lines guard cover (under step), screw-to-connect auxiliary hydraulic couplings, and engine air inlet pre-cleaner.) †Some equipment varies by region.
- LM2 – most comprehensive land management guarding and sealing† (HD1 + increased fuel capacity (220 L/58 gal), turbo guard, exhaust stack wrap, DPF/Emission component wraps, light guarding, quick disconnect guarding, hydraulic lines guard cover (under step), screw-to-connect auxiliary hydraulic couplings, and engine air inlet pre-cleaner.) †Some equipment varies by region.
electrical
- Work Tool Electrical Harness
- Heavy duty battery
- Battery disconnect with lockout feature
- 12-volt Electrical System
- 100 Ampere Alternator
- LED Work Lights
- Auto Reverse Lights
- Switch Backlighting
- Interior LED Dome Light
- Backup Alarm
- Electrical Outlet, Beacon
- Exterior Courtesy Lighting
operator environment
- Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (× 32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
- Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake engages
- ROPS Cab, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Headliner
- Interior Rearview Mirror
- Horn
- Hand (Dial) Throttle, Electronic
- Seat Mounted Joystick Controls
- Cell Phone Storage Pocket
- Cup Holder
- 12-volt power port
- Foot Throttle
hydraulics
- Selectable control pattern – ISO or H
- Electro/hydraulic implement control
- Electro/hydraulic hydrostatic transmission control
- Speed sensor guarding
- Heavy duty flat faced quick disconnects with integrated pressure release lever and case drain
- Hydraulic oil level sight gauge
power train
- Cat C3.6TA turbocharged, after-cooled diesel engine, meeting Tier 4 Final and Stage V Emission Standards: • Glow plugs starting aid • Liquid cooled, direct injection
- Extended life antifreeze (–37° C, –34° F)
- Air cleaner, dual element, radial seal
- Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil
- Ecology drain – coolant
- Radiator coolant level sight gauge
- Radiator expansion bottle
- Filter, hydraulic supply, cartridge type
- Filter, hydraulic return, cartridge type
- Filter, canister type, engine oil
- Filter, canister type, fuel and water separator
- Radiator/hydraulic oil
- Cooler (side-by-side)
- Spring applied, hydraulically released, parking brakes
- Hydrostatic transmission
- Lockable fuel cap
- Hydraulic demand cooling fan
- Auto engine idle
undercarriage
- E-bar (equalizer bar) suspension
- Two speed travel
- Integrated tie downs on track frame (4)
frame
- Machine tie down points (9)
- Removable panels for machine frame cleanout
- Support, lift arm
- Steel rear and front bumpers, welded
- Fuel fill, machine right hand side
other
- Auxiliary Hydraulics, Continuous Flow
- Telematics, Product Link, Cellular
- Steel engine door with replaceable louvers
- Engine door – lockable
- Work tool attachment coupler
- Cat ToughGuardTM hose
