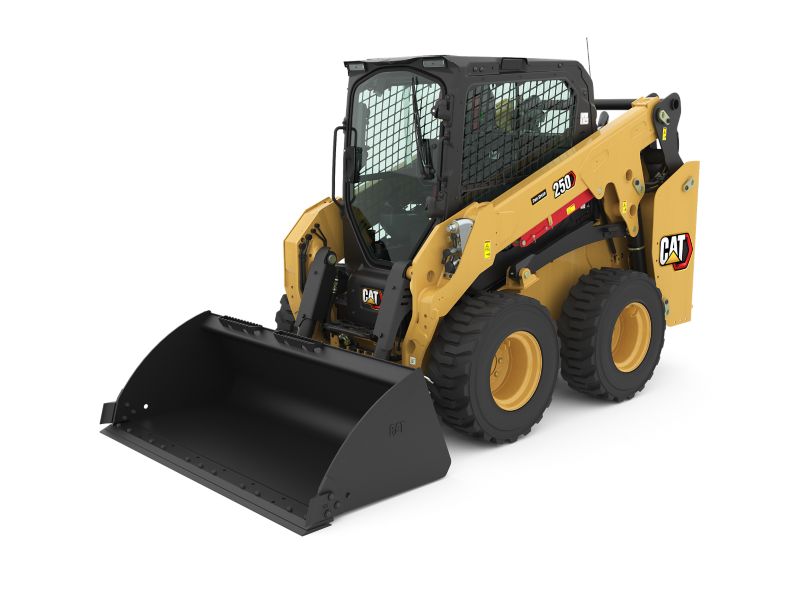

250 Skid Steer Loader

new - Products
250 Skid Steer Loader

At a glance data:

Gross Power - SAE J1995:2014:

74hp

Rated Operating Capacity:

2689lb

Operating Weight:

7829lb

Wheel Base:

43.1in

Print 250 Product Brochure Options and Accessories Kit Guide for Skid Steer and Compact Track Loaders Cat Attachments for 250/260/270 Skid Steer Loaders and 255/265/275/285 Compact Track Loaders Brochure

Overview

The Cat® 250 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Category:

Skid Steer Loaders

Brand:

Cat

Engine

Gross Power - SAE J1995:2014:

74hp

Operating Specifications

Rated Operating Capacity:

2689lb

Weights

Operating Weight:

7829lb

Dimensions

Wheel Base:

43.1in

Height - Top of Cab:

81.9in

Vehicle Width over Tires:

66in

Ground Clearance:

7.7in

Departure Angle:

23°

Maximum Dump Angle:

46°

Length - With Bucket on Ground:

135in

Length - Without Bucket:

110.2in

Bucket Pin Height - Maximum Lift:

124in

Maximum Reach - With Arms Parallel to Ground:

32.8in

Turning Radius from Center - Coupler:

51in

Turning Radius from Center - Machine Rear:

64.9in

Maximum Overall Height:

155.8in

Bucket Pin Reach - Maximum Lift:

3in

Bucket Pin Height - Carry Position:

7.9in

Note:

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Rack Back Angle - Maximum Height:

97°

Clearance at Maximum Lift and Dump:

96.2in

Turning Radius from Center - Bucket:

79.7in

Reach - Maximum Lift/Dump:

17.6in

Roll Back Angle:

28°

Hydraulic System

Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure:

4061psi

Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow:

30gpm

Hydraulic Flow - Standard - Loader Hydraulic Flow:

20gpm

Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow:

30gpm

Hydraulic Flow - High Flow - Hydraulic Power (Calculated):

58hp

Hydraulic Flow - Standard - Hydraulic Power (Calculated):

39hp

Hydraulic Flow - Standard - Loader Hydraulic Pressure:

3335psi

Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated):

71hp

Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure:

3335psi

Cab

ROPS:

ISO 3471:2008

FOPS:

ISO 3449:2005 Level I

FOPS Level II:

ISO 3449:2005 (Optional)

Power Train

Travel Speed - Forward or Reverse - One Speed:

8mile/h

Travel Speed - Forward or Reverse - Two Speed Option:

10.5mile/h

Service Refill Capacities

Chain Box - Each Side:

2.2gal (US)

Cooling System:

3gal (US)

Engine Crankcase:

2.1gal (US)

Fuel Tank:

24.9gal (US)

Hydraulic System:

9.7gal (US)

Hydraulic Tank:

6.9gal (US)

Engine

Net Power - SAE 1349:

73hp

Displacement:

171in³

Stroke:

4.3in

Bore:

3.5in

Net Power - ISO 9249:

73hp

Peak Torque - 1,600 rpm - SAE J1995:

221lb/ft

Note:

Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.

Engine Model:

Cat C2.8T (turbo)

Operating Specifications

Tipping Load:

5378lb

Breakout Force - Tilt Cylinder:

6784lb

Breakout Force - Lift Cylinder:

5948lb

Rated Operating Capacity with Optional Counterweight:

2916lb

Sustainability

Recyclability:

94%

Noise Level

Note (2):

*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Operating Specifications

Note:

Noise Level

Outside Cab**:

101 dB(A)

Inside Cab*:

83 dB(A)

Note (1):

Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Note (3):

**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Weights

Note:

Air Conditioning System (if equipped)

Air Conditioning:

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.

Standard Equipment

electrical

Work Tool Electrical Harness
Heavy duty battery
12-volt Electrical System
85 Ampere Alternator
LED Work Lights
Auto Reverse Lights
Switch Backlighting
Interior LED Dome Light
Backup Alarm
Electrical Outlet, Beacon
Exterior Courtesy Lighting
Automatic Work light notification flash when parking brake is released

operator environment

Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (×32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Headliner
Interior Rearview Mirror
Horn
Hand (Dial) Throttle, Electronic
Seat Mounted Joystick Controls
Cell Phone Storage Pocket
Cup Holder
12-volt power port
Foot Throttle

hydraulics

Selectable control pattern – ISO or H
Electro/hydraulic implement control
Electro/hydraulic hydrostatic transmission control Speed sensor guarding
Heavy duty flat faced quick disconnects with integrated pressure release lever
Hydraulic oil level sight gauge

power train

Cat C2.8T turbocharged diesel engine, Meeting U.S. EPA Tier 4 Final and EU Stage V emission standards
Glow plugs starting aid
Liquid cooled, direct injection
Extended life antifreeze (–37°C, –34°F)
Air cleaner, dual element, radial seal
Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil Ecology drain – coolant
Radiator coolant level sight gauge Radiator expansion bottle
Filter, hydraulic supply, cartridge type
Filter, hydraulic return, cartridge type
Filter, canister type, engine oil
Spring applied, hydraulically released, parking brakes
Hydrostatic transmission
Lockable fuel cap
Hydraulic demand cooling fan
Auto engine idle

other

Auxiliary Hydraulics, Continuous Flow
Telematics, Product Link, Cellular
Steel engine door with replaceable louvers
Engine door – lockable
Work tool attachment coupler
Cat ToughGuard™ hose

mandatory equipment

Auxiliary Hydraulics: Standard or High Flow XPS
Quick Coupler: Mechanical or Hydraulic
High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
Tires: 10 x 16.5 or 12 x 16.5
Axles: Standard or Special Application

performance packages

Performance Package HP1: Standard Flow Hydraulics
Performance Package HP3: High Flow XPS Hydraulics

comfort packages

Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl seat (Mechanical Suspension, High Back/Heated/Air Ride Seat
Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)

technology packages

T2 – T1 + Rear-view camera.
T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
T5 – T4 + 2 additional side view cameras.

radio

Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm Auxiliary (AUX) input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm AUX input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.

product link™

Product Link Basic series PL243
Product Link Elite series PLE643

cooling fan

On-demand, variable speed hydraulic cooling fan
On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation

guarding and sealing packages

HD0 – base guarding and sealing (engine air inlet rain cap, front cab-toframe sealing, and hydraulic fill access door)
HD1– intermediate guarding and sealing (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding. Some equipment varies by region)
HD2 – most comprehensive guarding and sealing (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF) wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner. Some equipment varies by region
