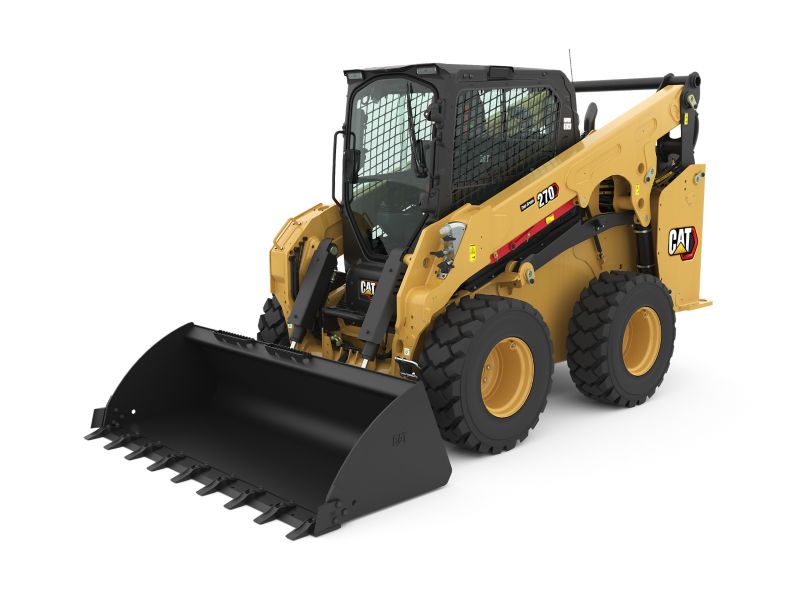

270 Skid Steer Loader

new - Products
270 Skid Steer Loader

At a glance data:

Gross Power - SAE J1995:2014:

100hp

Rated Operating Capacity:

3557lb

Operating Weight:

10441lb

Wheel Base:

54.6in

Print 270 Product Brochure Options and Accessories Kit Guide for Skid Steer and Compact Track Loaders Cat Attachments for 250/260/270 Skid Steer Loaders and 255/265/275/285 Compact Track Loaders Brochure

Overview

The Cat® 270 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Category:

Skid Steer Loaders

Brand:

Cat

Engine

Gross Power - SAE J1995:2014:

100hp

Operating Specifications

Rated Operating Capacity:

3557lb

Weights

Operating Weight:

10441lb

Dimensions

Wheel Base:

54.6in

Height - Top of Cab:

86.2in

Vehicle Width over Tires:

72in

Ground Clearance:

8in

Departure Angle:

23.6°

Maximum Dump Angle:

43.5°

Maximum Overall Height:

164.3in

Bucket Pin Reach - Maximum Lift:

12.6in

Turning Radius from Center - Machine Rear:

74.7in

Turning Radius from Center - Coupler:

57.9in

Reach - Maximum Lift/Dump:

30.9in

Turning Radius from Center - Bucket:

87.7in

Bucket Pin Height - Maximum Lift:

133.5in

Roll Back Angle:

28°

Maximum Reach - With Arms Parallel to Ground:

48in

Clearance at Maximum Lift and Dump:

105.4in

Length - Without Bucket:

128.7in

Bucket Pin Height - Carry Position:

8.7in

Length - With Bucket on Ground:

153.9in

Note:

Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).

Rack Back Angle - Maximum Height:

88°

Hydraulic System

Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow:

34gpm

Hydraulic Flow - Standard - Hydraulic Power (Calculated):

46.4hp

Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure:

3500psi

Hydraulic Flow - Standard - Loader Hydraulic Flow:

23gpm

Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated):

80.7hp

Hydraulic Flow - High Flow - Hydraulic Power (Calculated):

69.6hp

Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow:

34gpm

Hydraulic Flow - Standard - Loader Hydraulic Pressure:

3500psi

Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure:

4061psi

Cab

ROPS:

ISO 3471:2008

FOPS:

ISO 3449:2005 Level I

FOPS Level II:

ISO 3449:2005 (Optional)

Power Train

Travel Speed - Forward or Reverse - Two Speed Option:

9.6mile/h

Travel Speed - Forward or Reverse - One Speed:

6.6mile/h

Service Refill Capacities

Cooling System:

4.6gal (US)

Engine Crankcase:

2.4gal (US)

Fuel Tank:

34.5gal (US)

Hydraulic System:

10.8gal (US)

Hydraulic Tank:

6.9gal (US)

Diesel Exhaust Fluid (DEF) Tank:

2.9gal (US)

Engine

Net Power - SAE 1349:

100hp

Displacement:

221in³

Stroke:

4.7in

Bore:

3.9in

Engine Model:

Cat C3.6TA (turbocharged, aftercooled)

Note:

Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.

Net Power - ISO 9249:

99hp

Peak Torque - 1,600 rpm - SAE J1995:

333lb/ft

Operating Specifications

Tipping Load:

7114lb

Breakout Force - Tilt Cylinder:

8267lb

Breakout Force - Lift Cylinder:

6349lb

Rated Operating Capacity with Optional Counterweight:

3914lb

Noise Level

Note (2):

*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Air Conditioning System (if equipped)

Air Conditioning:

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.

Noise Level

Outside Cab**:

101 dB(A)

Note (1):

Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Weights

Note:

Sustainability

Recyclability:

93%

Noise Level

Inside Cab*:

83 dB(A)

Note (3):

**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Operating Specifications

Note:

Standard Equipment

electrical

Battery disconnect with lockout feature
Work Tool Electrical Harness
Heavy duty battery
12-volt Electrical System
85 Ampere Alternator
LED Work Lights
Auto Reverse Lights
Switch Backlighting
Interior LED Dome Light
Backup Alarm
Electrical Outlet, Beacon
Exterior Courtesy Lighting
Automatic Work light notification flash when parking brake is released

operator environment

Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (×32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
Fold In Ergonomic Contoured Armrest
Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
ROPS Cab, Tilt Up
FOPS, Level I
Top and Rear Windows
Floor Mat
Headliner
Interior Rearview Mirror
Horn
Hand (Dial) Throttle, Electronic
Seat Mounted Joystick Controls
Cell Phone Storage Pocket
Cup Holder
12-volt power port
Foot Throttle

hydraulics

Selectable control pattern – ISO or H
Electro/hydraulic implement control
Electro/hydraulic hydrostatic transmission control Speed sensor guarding
Heavy duty flat faced quick disconnects with integrated pressure release lever
Hydraulic oil level sight gauge

power train

Cat C2.8T turbocharged diesel engine, Meeting U.S. EPA Tier 4 Final and EU Stage V emission standards
Glow plugs starting aid
Liquid cooled, direct injection
Extended life antifreeze (–37°C, –34°F)
Air cleaner, dual element, radial seal
Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil Ecology drain – coolant
Radiator coolant level sight gauge Radiator expansion bottle
Filter, hydraulic supply, cartridge type
Filter, hydraulic return, cartridge type
Filter, canister type, engine oil
Radiator/hydraulic oil cooler (side-by-side)
Spring applied, hydraulically released, parking brakes
Hydrostatic transmission
Lockable fuel cap
Hydraulic demand cooling fan
Auto engine idle

other

Auxiliary Hydraulics, Continuous Flow
Telematics, Product Link, Cellular
Steel engine door with replaceable louvers
Engine door – lockable
Work tool attachment coupler
Cat ToughGuard™ hose

mandatory equipment

Auxiliary Hydraulics: Standard or High Flow XPS
Quick Coupler: Mechanical or Hydraulic
High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
Tires: 12 x 16.5 or 14 x 17.5

performance packages

Performance Package HP1: Standard Flow Hydraulics
Performance Package HP3: High Flow XPS Hydraulics

comfort packages

Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl seat (Mechanical Suspension, High Back/Heated/Air Ride Seat
Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)

technology packages

T2 – Standard Joysticks, Standard Monitor, Key Start, Rear-view camera.
T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
T5 – T4 + 2 additional side view cameras.

radio

Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm Auxiliary (AUX) input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm AUX input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.

product link™

Product Link Basic series PL243
Product Link Elite series PLE643

cooling fan

On-demand, variable speed hydraulic cooling fan
On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation

guarding and sealing packages

HD0 – base guarding and sealing (engine air inlet rain cap, front cab-toframe sealing, and hydraulic fill access door)
HD1– intermediate guarding and sealing (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding. Some equipment varies by region)
HD2 – most comprehensive guarding and sealing (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF) wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner. Some equipment varies by region
