At a glance data:
Gross Power - SAE J1995:2014:
121hp
Net Power - SAE 1349:
121hp
Net Power - ISO 9249:
120hp
Displacement:
221in³
Overview

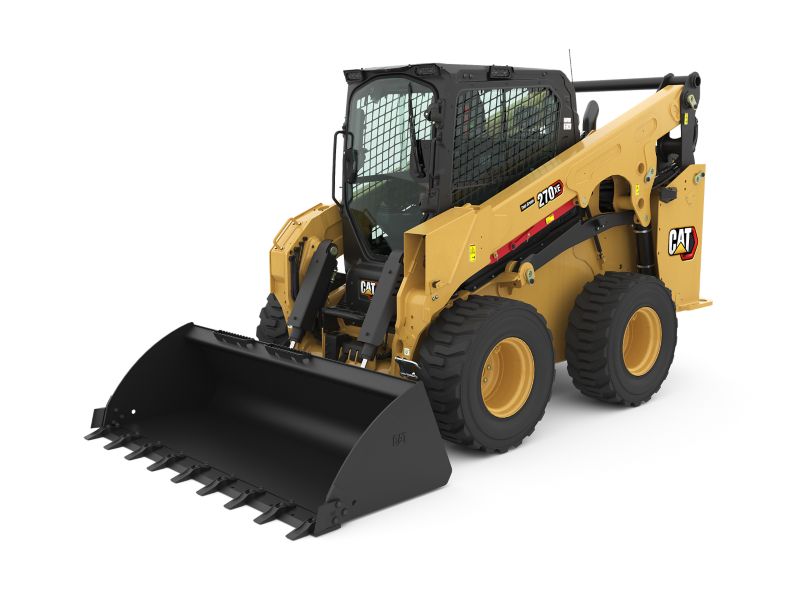

The Cat® 270 XE Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
Category:
Skid Steer Loaders
Category:
Skid Steer Loaders
Brand:
Cat
Brand:
Cat
Engine
Gross Power - SAE J1995:2014:
121hp
Net Power - SAE 1349:
121hp
Net Power - ISO 9249:
120hp
Displacement:
221in³
Stroke:
4.7in
Bore:
3.9in
Engine Model:
Cat C3.6TA (turbocharged, aftercooled)
Peak Torque - 1,600 rpm - SAE J1995:
406lb/ft
Engine Power - ISO 14396:
134hp
Note:
Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
Operating Specifications
Rated Operating Capacity:
4015lb
Note:
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
Tipping Load:
8029lb
Breakout Force - Tilt Cylinder:
8267lb
Rated Operating Capacity with Optional Counterweight:
4372lb
Breakout Force - Lift Cylinder:
6349lb
Weights
Operating Weight:
10847lb
Note:
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
Dimensions
Note:
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speeds, 2036 mm (80in) low profile bucket, Cat 12 × 17.5 tires, HP5 XE hydraulics, enclosed cab with glass door and air conditioning, cloth air ride seat, advanced display, rear view camera, self level, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted).
Wheel Base:
54.6in
Height - Top of Cab:
87.5in
Vehicle Width over Tires:
72in
Ground Clearance:
9.4in
Departure Angle:
24.4°
Maximum Dump Angle:
43.5°
Roll Back Angle:
28°
Reach - Maximum Lift/Dump:
29.5in
Turning Radius from Center - Coupler:
57.9in
Turning Radius from Center - Machine Rear:
74.7in
Bucket Pin Height - Maximum Lift:
135.4in
Turning Radius from Center - Bucket:
89.1in
Length - Without Bucket:
128.7in
Maximum Reach - With Arms Parallel to Ground:
46.5in
Clearance at Maximum Lift and Dump:
106.9in
Length - With Bucket on Ground:
153.9in
Maximum Overall Height:
165.9in
Bucket Pin Reach - Maximum Lift:
11.1in
Rack Back Angle - Maximum Height:
88°
Bucket Pin Height - Carry Position:
9.3in
Hydraulic System
Hydraulic Flow - Standard - Loader Hydraulic Pressure:
3500psi
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure:
4496psi
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow:
34gpm
Hydraulic Flow - Standard - Hydraulic Power (Calculated):
46.4hp
Hydraulic Flow - XE - Hydraulic Power (calculated):
103.9hp
Hydraulic Flow - Standard - Loader Hydraulic Flow:
23gpm
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated):
80.7hp
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*:
40gpm
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure:
4061psi
Cab
ROPS:
ISO 3471:2008
FOPS:
ISO 3449:2005 Level I
FOPS Level II:
ISO 3449:2005 (Optional)
Power Train
Travel Speed - Forward or Reverse - Two Speed Option:
10.6mile/h
Travel Speed - Forward or Reverse - One Speed:
7.3mile/h
Service Refill Capacities
Cooling System:
4.6gal (US)
Engine Crankcase:
2.4gal (US)
Fuel Tank:
34.5gal (US)
Hydraulic System:
10.8gal (US)
Hydraulic Tank:
6.9gal (US)
Diesel Exhaust Fluid (DEF) Tank:
2.9gal (US)
Noise Level
Outside Cab**:
101 dB(A)
Note (1):
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3):
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab*:
83 dB(A)
Note (2):
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Air Conditioning System (if equipped)
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.
Sustainability
Recyclability:
93%
Standard Equipment
electrical
- Battery disconnect with lockout feature
- Work Tool Electrical Harness
- Heavy duty battery
- 12-volt Electrical System
- 85 Ampere Alternator
- LED Work Lights
- Auto Reverse Lights
- Switch Backlighting
- Interior LED Dome Light
- Backup Alarm
- Electrical Outlet, Beacon
- Exterior Courtesy Lighting
- Automatic Work light notification flash when parking brake is released
operator environment
- Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (×32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
- Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Headliner
- Interior Rearview Mirror
- Horn
- Hand (Dial) Throttle, Electronic
- Seat Mounted Joystick Controls
- Cell Phone Storage Pocket
- Cup Holder
- 12-volt power port
- Foot Throttle
hydraulics
- Selectable control pattern – ISO or H
- Electro/hydraulic implement control
- Electro/hydraulic hydrostatic transmission control Speed sensor guarding
- Heavy duty flat faced quick disconnects with integrated pressure release lever
- Hydraulic oil level sight gauge
power train
- Cat C2.8T turbocharged diesel engine, Meeting U.S. EPA Tier 4 Final and EU Stage V emission standards
- Glow plugs starting aid
- Liquid cooled, direct injection
- Extended life antifreeze (–37°C, –34°F)
- Air cleaner, dual element, radial seal
- Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil Ecology drain – coolant
- Radiator coolant level sight gauge Radiator expansion bottle
- Filter, hydraulic supply, cartridge type
- Filter, hydraulic return, cartridge type
- Filter, canister type, engine oil
- Radiator/hydraulic oil cooler (side-by-side)
- Spring applied, hydraulically released, parking brakes
- Hydrostatic transmission
- Lockable fuel cap
- Hydraulic demand cooling fan
- Auto engine idle
other
- Auxiliary Hydraulics, Continuous Flow
- Telematics, Product Link, Cellular
- Steel engine door with replaceable louvers
- Engine door – lockable
- Work tool attachment coupler
- Cat ToughGuard™ hose
mandatory equipment
- Quick Coupler: Mechanical or Hydraulic
- High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
- Tires: 12 x 16.5 or 14 x 17.5
performance packages
- Performance Package HP5: XE Hydraulics
comfort packages
- Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)
technology packages
- T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
- T5 – T4 + 2 additional side view cameras.
radio
- Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
- Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm Auxiliary (AUX) input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
- Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm AUX input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
product link™
- Product Link Basic series PL243
- Product Link Elite series PLE643
cooling fan
- On-demand, variable speed hydraulic cooling fan
- On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation
guarding and sealing packages
- HD0 – base guarding and sealing (engine air inlet rain cap, front cab-toframe sealing, and hydraulic fill access door)
- HD1– intermediate guarding and sealing (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding. Some equipment varies by region)
- HD2 – most comprehensive guarding and sealing (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF) wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner. Some equipment varies by region
Optional Equipment
optional equipment
- External Counterweights
- Beacon, LED
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- 4-point machine lifting eyes
- Paint, Custom
- Speed Sensitive Ride Control
- Bluetooth Key Security
- Attachment Hose Guide
- Corrosion Inhibitor Coating
