At a glance data:
Net Power - ISO 9249:
542hp
Engine Model:
Cat C18
Overview

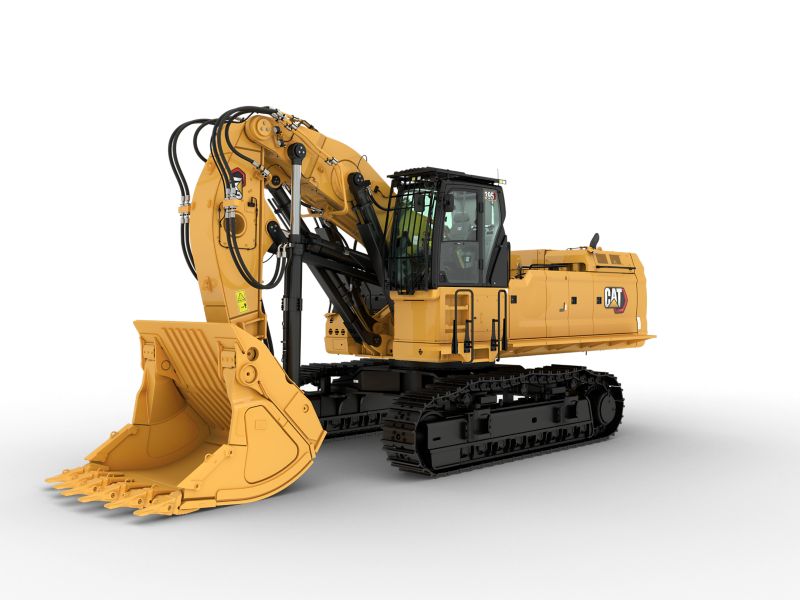

The Cat® 395 Front Shovel Hydraulic Excavator is engineered to tackle the toughest demands of large-scale mining and quarry operations. Built for exceptional durability, this powerhouse machine combines unmatched digging force with fast cycle times that ease bucket penetration.
For those seeking an excavator that provides power, precision, and reliability in challenging environments, the 395 Front Shovel Hydraulic Excavator is the ultimate solution. Maximize your productivity and efficiency while minimizing downtime and reducing maintenance costs with this indispensable machine.
Category:
Large Excavators
Category:
Large Excavators
Brand:
Cat
Brand:
Cat
Engine
Net Power - ISO 9249:
542hp
Net Power - ISO 9249 (DIN):
550hp (metric)
Engine Model:
Cat C18
Engine Power - ISO 14396:
543hp
Engine Power - ISO 14396 (DIN):
551hp (metric)
Bore:
6in
Stroke:
7in
Displacement:
1105in³
Biodiesel Capability:
B20¹
Emissions:
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1):
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2):
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Hydraulic System
Main System - Maximum Flow - Implement:
266gpm
Maximum Pressure - Equipment:
4641psi
Maximum Pressure - Travel:
5,076psi
Maximum Pressure - Swing:
4,496psi
Swing Mechanism
Maximum Swing Torque:
267,000lbf·ft
Note (1):
*For CE-marked machine default value may be set lower
Weights
Operating Weight:
212,300lb
Note (1):
Standard variable gauge undercarriage, 4.6 m (15ft 9in) Front Shovel (FS) Boom, 3.48 m (11ft 5in) FS Stick, FS 6.5m³ (8.5 yd³) bucket, 650 mm (26in) double grouser shoes, 15,450 kg (34,060 lb) counterweight
Service Refill Capacities
Fuel Tank Capacity:
322gal (US)
Cooling System:
19gal (US)
Engine Oil:
18gal (US)
Swing Drive:
3.2gal (US)
Final Drive - Each:
5.3gal (US)
Hydraulic System - Including Tank:
196gal (US)
Hydraulic Tank:
114gal (US)
DEF Tank:
21gal (US)
Dimensions
Boom:
Front Shovel (FS) Boom 4.6m (15"9')
Stick:
Front Shovel (FS) Stick 3.48m (11'5")
Bucket:
Front Shovel (FS) 6.5m³ (8.5 yd³)
Shipping Height - Top of Cab:
14.10ft
Handrail Height:
11.1ft
Shipping Length:
48ft
Tail Swing Radius:
15.11ft
Counterweight Clearance:
5.5ft
Ground Clearance:
2.11ft
Track Length:
19.2ft
Track Length to Center of Rollers:
15.1ft
Track Gauge:
11.6ft
Transport Width:
9ft
Note:
Track gauge undercarriage extended with 650 mm (26") shoes; transport width undercarriage retracted with 650 mm (26") shoes and no steps
Working Ranges and Forces
Maximum Digging Depth:
9.7ft
Boom:
Front Shovel (FS) Boom 4.6m (15"9')
Stick:
Front Shovel (FS) Stick 3.48m (11'5")
Bucket:
Front Shovel (FS) 6.5m³ (8.5 yd³)
Maximum Reach at Ground Level:
32.10ft
Maximum Cutting Height:
9.7ft
Maximum Loading Height:
37.4ft
Minimum Loading Height:
34.4ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom:
23.10ft
Maximum Vertical Wall Digging Depth:
12.10ft
Bucket Digging Force - ISO:
115,550lbf·ft
Stick Digging Force - ISO:
106,560lbf·ft
Sustainability
Recyclability:
98%
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.00 kg (2.204 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.16 kg (2.56 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat® dealer for details.
booms and sticks
- 4.6 m (15 ft 9 in) Front Shovel boom
- 3.48 m (11 ft 42 in) Front Shovel stick
cab
- High-resolution 254 mm (10") LCD touch screen monitor
- Heated and cooled seat with auto adjustable suspension (Premium only)
- Sound suppressed cab with viscous mounts
- Automatic bi-level air conditioner
- Jog dial and shortcut keys for monitor control
- Keyless push-to-start engine control
- Height-adjustable console, infinite with no tool
- Tilt-up left-side console
- 51 mm (2") orange seat belt
- Bluetooth integrated radio (including USB, aux port and microphone)
- 2 x 12V DC outlets
- Cup and storage compartments
- Parallel wiper with washer (Premium only)
- LED dome light
- Floor welcome light
- Roller front sunscreen
- Roller rear sunscreen
- Rear window emergency exit
- Washable floor mat
- Beacon Ready
cat technology
- VisionLink™
- Remote Troubleshoot
- 360° visibility
- Compatibility with radios and base stations from Trimble, Topcon, and Leica
electrical system
- Maintenance-free 1,400 CCA batteries (x2)
- Centralized electrical disconnect switch
- Chassis light
engine
- Three selectable modes: Power, Smart, and Eco
- Automatic engine speed control
- Up to 4500m (14,760 ft) altitude capability
- 52°C (126°F) high-ambient cooling capacity
- Cold start block heaters
- Hydraulic reverse fan
- Double element air filter with integrated pre-cleaner
- Three vertical side-by-side cooling system
- Remote disable
- 95 Amp alternator
hydraulic system
- Boom and stick regeneration circuit
- Electronic main control valve
- Dedicated closed loop swing circuit
- Anti-reaction valve
- Auto hydraulic oil warmup
- Auto swing parking brake
- High performance hydraulic return filter
- Two speed travel
- Bio hydraulic oil capability
safety and security
- Caterpillar One Key security system
- Lockable fuel drain compartment
- Lockable external tool / storage box
- Lockable door, fuel, and hydraulic tank locks
- Lockable disconnect switch
- Service platform with anti-skid plate & recessed bolts
- Right hand handrail and hand hold (ISO 2867:2011 compliant)
- Visibility mirror package
- Signaling/warning horn
- Ground-level secondary engine shutoff switch
- Rearview and right-hand-sideview cameras
- Walkway
- Travel alarm
service and maintenance
- Integrated vehicle health management system
- Auto lube ready
- Grouped location of engine oil & fuel filters
- Scheduled Oil Sampling (S·O·S) ports
- Reversing cooling fan
undercarriage and structures
- Standard variable gauge undercarriage
- Swivel guard
- Grease lubricated track
- 15 450 kg (34,060 lb) counterweight
- HD bottom guard
- HD travel motor guard
- 650mm (26") HD double grouser track shoes
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat® dealer for details.
cab
- Cat® Stick Steer
- Auxiliary relay
- 1-Slider Joystick for Ease of Use (EOU)
- 2-Slider joystick for TRS
- Openable two-piece front window
electrical system
- 1,800 lumen LED premium surround lights
- LED boom and cab lights
engine
- -32°C (-25°F) cold start capability
- Cold start block heaters
hydraulic system
- Hydraulic efficiency monitoring
safety and security
- Inspection lighting
- Tilt-up walkway
service and maintenance
- Fast-fill fuel system
- QuickEvac® maintenance ready
- Electric refueling pump with auto shutoff
undercarriage and structures
- Two-piece full-length track guiding guards
- Three-piece segmented track guiding guards
