At a glance data:
Net Power @ 1,700 rpm – ISO 9249:2007, SAE J1349:2011:
393hp
ISO 9249:2007 (DIN):
398 hp (metric)
Engine Power @ 1,700 rpm – ISO 14396:2002:
420hp
ISO 14396:2002 (DIN):
426 hp (metric)
Overview

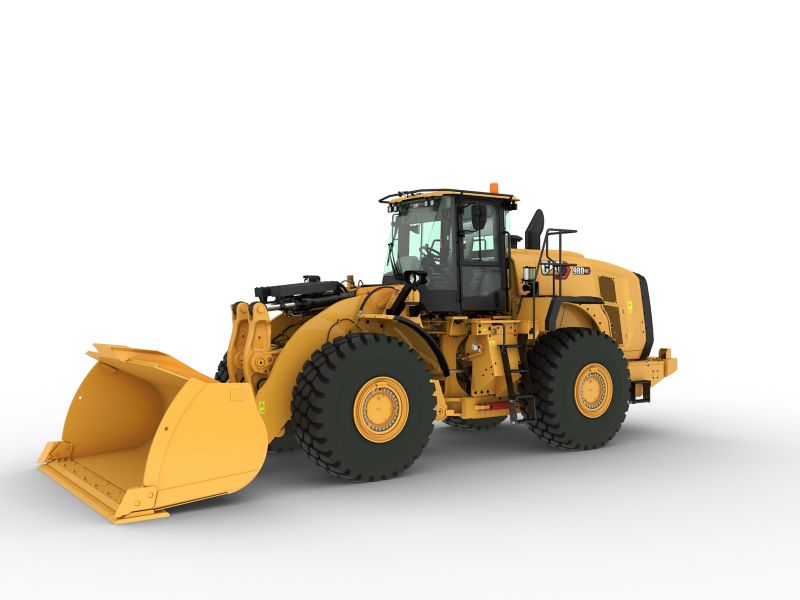

The Cat® 980 GC Wheel Loader is easy to own and operate. It offers low fuel consumption with an on-demand fan, load-sensing hydraulics, intuitive controls, and Performance Series Buckets. This machine is built to be just the right machine for a broad range of applications. Great machine performance combined with the low owning and operating costs makes the 980 GC the right choice for your business.
Category:
Medium Wheel Loaders
Category:
Medium Wheel Loaders
Brand:
Cat
Brand:
Cat
Engine
Net Power @ 1,700 rpm – ISO 9249:2007, SAE J1349:2011:
393hp
ISO 9249:2007 (DIN):
398 hp (metric)
Engine Power @ 1,700 rpm – ISO 14396:2002:
420hp
ISO 14396:2002 (DIN):
426 hp (metric)
Gross Power @ 1,700 rpm – SAE J1995:2014:
425hp
Engine Model:
Cat C13A
Engine Torque @ 1,200 rpm - ISO 14396:2002:
1612ft·lbf
Gross Torque @ 1,200 rpm – SAE J1995:2014:
1627ft·lbf
Net Torque @ 1,200 rpm - ISO 9249:2007, SAE J1349:2011:
1539ft·lbf
Bore:
5.12in
Stroke:
6.18in
Displacement:
763in³
Note (1):
Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards.
Note (2):
The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (3):
Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels
Weights
Operating Weight*:
65610lb
Note (1):
*Weight based on a machine configuration with standard ambient cooling, open differential axles, Maxam MS405 L4 tires, standard counterweight, full fluids, operator and 5.5 m³ (7.2 yd³) bucket with BOCE.
Buckets
Bucket Capacities:
4.3 - 5.8 m³ (5.75 - 7.5 yd³)
Operating Specifications
Static Tipping Load - Full 40° Turn - With Tire Deflection:
42441lb
Static Tipping Load - Full 40° Turn - No Tire Deflection:
45089lb
Breakout Force:
47660lbf
Note (1):
* For a machine configuration as defined under "Weight".
Note (2):
* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Sound
Operator Sound Pressure Level - ISO 6396:2008:
74dB(A)
Exterior Sound Power Level - ISO 6395:2008:
112dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹:
74dB(A)
Exterior Sound Power Level - ISO 6395:2008²:
109dB(A)
Note (1):
Including countries that adopt the EU and UK Directives
Note (2):
EU Noise Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701
Transmission
Forward - 1:
4.1mile/h
Reverse - 1:
4.7mile/h
Forward - 2:
7.9mile/h
Reverse - 2:
9mile/h
Forward - 3:
14mile/h
Reverse - 3:
16mile/h
Forward - 4:
24.7mile/h
Reverse - 4:
24.7mile/h
Note:
Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 913 mm (36 in) roll radius.
Service Refill Capacities
Fuel Tank:
112.5gal (US)
DEF Tank:
5.6gal (US)
Cooling System:
13.7gal (US)
Crankcase:
9.8gal (US)
Transmission:
20.3gal (US)
Differential - Final Drives - Front:
22.2gal (US)
Differential - Final Drives - Rear:
22.2gal (US)
Hydraulic Tank:
40.4gal (US)
Hydraulic System
Implement Pump Type:
Variable Displacement Piston, Load Sensing
Implement System – Maximum Flow @ 2,250 rpm:
110gal(US)/min
Implement System - Maximum Operating Pressure:
4090psi
Implement System - Maximum Flow 3rd Function:
66gpm
Implement System - Maximum Operating Pressure 3rd Function:
3000psi
Hydraulic Cycle Time - Raise from Carry Position:
5.3s
Hydraulic Cycle Time – Dump at Maximum Raise:
1.7s
Hydraulic Cycle Time - Lower, Empty, Float Down:
3.1s
Hydraulic Cycle Time - Total Cycle Time:
10.1s
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
*If equipped with R134a (Global Warning Potential = 1430), the system contains 1.5 kg of refrigerant which has a CO2 equivalent of 2,145 metric tonnes (2,365 tons).
*If equipped with R1234yf (Global Warning Potential = 0.501) the system contains 1476 g of refrigerant which has a CO2 equivalent of 0.001 metric tonnes.
Dimensions - Standard Lift
Rack Back at Ground:
292
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Air conditioning (HVAC) with 10 vents and filter unit located outside of cab
- Bucket/work tool function lockout
- Cab, pressurized and sound suppressed
- Camera, rearview
- Computerized monitoring system
- Mirrors, rearview external
- Pilot hydraulic controls, lift and tilt function; two (2) single axis levers or joystick
- 12V power port (10A)
- Radio ready
- ROPS/FOPS structure
- Seat, Cat Comfort (cloth), mechanical suspension
- Steering column, adjustable angle
- Switch, transmission neutralizer (adjustable) lockout
- Window, sliding (left and right sides)
- Wipers/washers (front and rear)
power train
- Axles, Open/Open differentials
- Brakes, full hydraulic enclosed wet-disc
- Cat C13A engine
- EIMS (Engine Idle Management System)
- AIS (Auto Idle Shutdown)
- Fan, radiator, electronically controlled, hydraulically driven, temperature sensing, on demand
- Filter, fuel primary/secondary
- Fuel priming pump (electric)
- Fuel/water separator
- Radiator, unit core (9 fpi) with ATAAC
- Torque converter
- Transmission, powershift (4F/4R), automatic (2-4) with kick-down 2-1 manual
linkage
- Lift and bucket return-to-dig kickouts (electro-magnetic), mechanical adjustment
- Z-bar, cast tilt lever
hydraulics
- Dedicated brake and fan pump
- Dedicated load sensing steering pump
- Load sensing implement system pilot operated
- S O S ℠ oil sampling valves
electrical
- Alarm, back-up variable/main disconnect switch
- Alternator (115-amp, brush type)
- Batteries, maintenance free (2 x 1,400 CCA)
- Ignition key; start/stop
- Lighting system: 4 halogen work lights, cab mounted
- Lights: LED taillights
- Roading lights with high/low beam and F and R turn signals
- Starter, electric (heavy duty)
- Starting and charging system, 24V
additional equipment
- Hood, engine enclosure tilting
- Radial or bias ply tires
- Variable backup alarm (3dB above ambient noise)
- Product Link™ ready
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- CB radio ready
- Radio: DAB+/AM/FM/BT
- Seat, high-back, air suspended
- Seat, air suspended, heated
- Steering, secondary, electrical (standard where mandated)
power train
- Axles, limited slip differential(s)
- Axles, oil cooler
- Fan, reversing automatic and manual control
linkage
- Quick coupler control
hydraulics
- Ride control
- 3rd function with additional dedicated single axis lever
electrical
- Lighting system: 8 halogen work lights, cab mounted
- Lighting system: 4 or 8 LED work lights, cab mounted
- Lights: warning beacon
additional equipment
- Autolube system
- Camera, front view
- Cat Payload
- Cold weather starting
- Fender rear extensions or roading
- Tires, choice of L3, L4 or L5
- Power train guard
- Precleaner, strata tubes with screen
- Reverse Stobes
- Tilt cylinder guard
- Toolbox
- Windshield guard
