At a glance data:
Power Range:
16 - 26 ekW
Frequency:
50 / 60
Minimum Rating:
16 ekW (18.75 kVA)
Maximum Rating:
26 ekW (31.25 kVA)
Overview

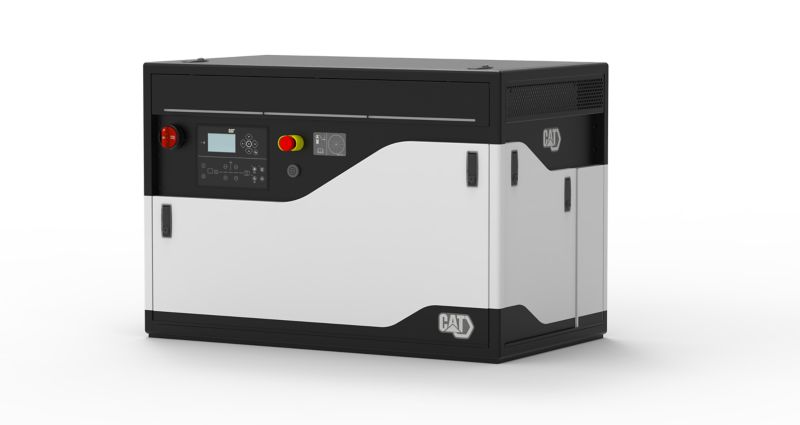

Cat® C2.2B Marine Generator is designed for advanced functionality. This low-noise, intelligent, and future-ready genset can be sold independently or as part of Cat Marine product solutions. The flexible design ensures seamless installation and single-side servicing foreasy maintenance. The Cat C2.2B allows for the integration of multiple power sources, from shore power to batteries, ensuring an uninterrupted power supply. It meets U.S. EPA Tier 3 emissions standards at an engine speed of 1800 rpm, delivering up to 26 KWe of power. The enclosure is 20% smaller compared to the C2.2, offering a more compact footprint without compromising performance.
Category:
Marine Generator Sets
Category:
Marine Generator Sets
Brand:
Cat
Brand:
Cat
Power Rating
Power Range:
16 - 26 ekW
Generator Set Specifications
Frequency:
50 / 60
Minimum Rating:
16 ekW (18.75 kVA)
Maximum Rating:
26 ekW (31.25 kVA)
Speed:
1500 / 1800 rpm
Engine Specifications
Emissions:
U.S. EPA Tier 3
Configuration:
Inline 4, 4- Stroke Cycle Diesel
Rated Engine Speed:
1500 / 1800 rpm
Displacement:
135in³
Aspiration:
Naturally Aspirated / Turbocharged
Governor Type:
Electrical Ischronous
Flywheel Housing:
SAE No. 04
Bore:
3.31in
Stroke:
3.5in
Refill Capacity:
Lube Oil System with Oil Filter Change: 10.6 L (2.8 gal)
Oil Change Interval:
500 hours
Rotation from Flywheel End:
Counterclockwise
Cooling:
Heat Exchanger Cooled
Dimensions & Weights
Length:
43.3in
Height:
740mm
Width:
24.7in
Maximum Engine Dry Weight:
1036lb
Standard Equipment
standard equipment
- Sound Attenuation Enclosure
- Digital control panel
- Self-priming fuel lift pump
- 12 or 24 volt system
- Single sided service points
- Water-cooled exhaust manifold
- Wet exhaust
- Single or brushless generator
- Anti-vibration mounts
Optional Equipment
optional equipment
- Double wall fuel injection lines
- Vessel connection Panel
- Siphon break
- AC circuit breaker
- Load share control panel
- Load share junction box
