At a glance data:
Model:
Cat C3.6
Emissions:
Meets U.S. EPA Tier 4 Final/EU Stage V emissions standards.
Gross Power:
ISO 14396:2002
Gross Power:
74hp
Overview

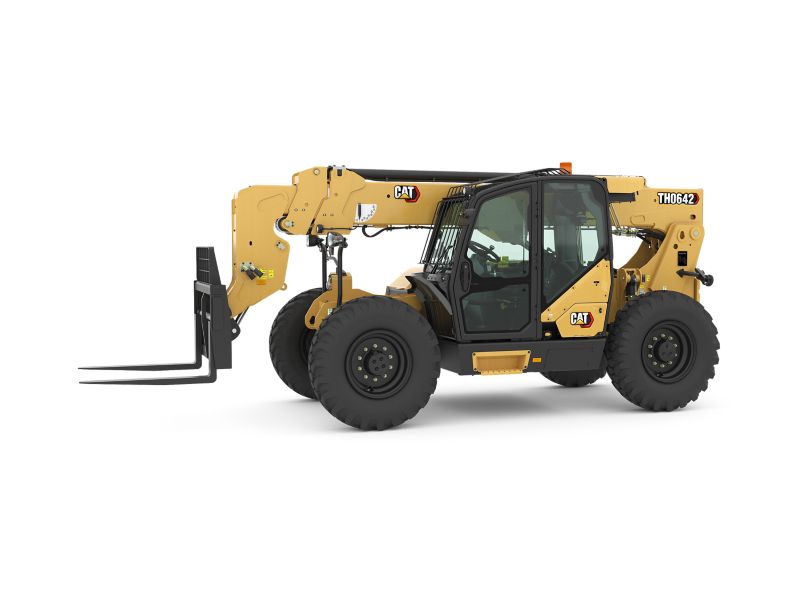

The Next Generation Cat® TH0642 Telehandler is focused on safety and ease of operation, with extended service intervals so it is ready to work when you are.
More than a machine – Cat Telehandlers are an extension of you.
Category:
Telehandlers
Category:
Telehandlers
Brand:
Cat
Brand:
Cat
Engine - Standard
Model:
Cat C3.6
Emissions:
Meets U.S. EPA Tier 4 Final/EU Stage V emissions standards.
Gross Power:
ISO 14396:2002
Gross Power:
74hp
Displacement:
220in³
Operating Specifications
Rated Load Capacity:
6000lb
Maximum Lift Height:
42.1ft
Maximum Forward Reach:
27.6ft
Frame Leveling:
10 degrees
Drawbar Pull - Loaded:
21064lbf
Capacity at Maximum Height:
6000lb
Capacity at Maximum Reach:
900lb
Operating Weight:
21647lb
Maximum Ground Bearing Pressure (Solid Tires):
175psi
Maximum Ground Bearing Pressure (Pneumatic Tires):
140psi
Travel Speed – Forward:
19mile/h
Travel Speed – Reverse:
14mile/h
Turning Radius over Tires (2-wheel steer):
261in
Turning Radius over Tires (4-wheel steer):
156in
Note:
Operating Specifications, and Dimensions are based on 55 kW (74 hp) engine, pnuematic tires, open canopy, 1829 mm (72 in) standard carriage, 1829 mm (72 in) forks, full fluids, and 80 kg (176 lb) operator.
Weight Additions (add to base configured weight)
Enclosed Cab (with Air Conditioning):
364lb
Solid Tires:
1737lb
Fenders (set of 4):
119lb
Hydraulic System
Auxiliary Hydraulic Flow:
14.5gpm
Auxiliary Hydraulic Pressure:
4061psi
Maximum Pump Flow:
37gpm
System Operating Pressure:
4061psi
Service Refill Capacities
Fuel Tank:
39gal (US)
Hydraulic Tank:
24gal (US)
Hydraulic System:
44gal (US)
Engine Crankcase:
2.4gal (US)
Transmission:
5.3gal (US)
Transfer Case:
0.7gal (US)
Transmission Speeds
Forward:
4 Gears
Reverse:
3 Gears
Tires
Option (1):
14-24 Galaxy Giraffe XLW L-2 (Air)
Option (2):
13-24 Camso TLH 792S (Solid)
Option (3):
13-24 Maxam MS709 (Solid)
Braking System
Service Brakes:
Inboard wet disc brakes on front and rear axles
Parking Brakes:
Wet disc, spring applied hydraulic release (front axle)
Boom Performance
Boom Down:
14.2 sec
Boom Up:
12.8 sec
Tele In:
13.3 sec
Tele Out:
13 sec
Dimensions (Approximate)
Height - Machine Rear:
102in
Overall Length to Front of Carriage:
229in
Overall Width - Standard Tires:
93in
Wheel Base:
131in
Ground Clearance:
19in
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains 0.68 kg (1.5 lb) of refrigerant. The refrigerant is either R134a or R1234yf. If equipped with R134a (Global Warming Potential = 1430), the refrigerant in the system has a CO2 equivalent of 0.972 metric tonnes (1.07 tons).
Sustainability
Recyclability:
97%
Sound
Exterior Sound:
82 dB(A)
Operator Sound:
79dB(A)
Standard Equipment
engine
- 55 kW (74 hp)
cold weather
- Battery disconnect with lockout feature
operator station
- Canopy
operating enhancers
- Operator Presence Seat Switch
- Camera, rearview
- Load Stability Indicator (LSI)
operator seat
- Seat – Mechanical Suspension
seat belt
- Seat belt – 51 mm (2 in)
operator station accessories
- USB dual charging port (USB-A and USB-C)
- Security, 4 digit operator code enabled
- Wiper, front (enclosed cab only)
fenders
- Cab fender (Left Hand front)
other options
- Frame cover
- Retrieval hitch
lights
- LED work lights – cab, boom
telematics
- PLE643 – Product Link™ Elite
attachment coupler
- TH Coupler (Manual)
auxiliary hydraulic connections
- Capped auxiliary hydraulic lines
Optional Equipment
cold weather
- Cold Weather Package
- Dual Battery, heavy duty
- Engine Block Heater
- Ether Starting Aid
operator station
- Enclosed Cab, heat
- Enclosed Cab, heat, air conditioner
operator seat
- Seat – Mechanical Suspension Plus
seat belt
- Seat belt – 75 mm (3 in)
- Seat belt with Indicator – 75 mm (3 in)
operator station accessories
- Security, Bluetooth® key
- Hydraulic lockout switch
- Wiper, rear (enclosed cab only)
- Wiper, roof (enclosed cab only)
- Sunshade (top window)
- Padlocks (set of 4)
fenders
- Fenders (4 Wheels)
guarding
- Window guard, front
- Window guard, top
other options
- Boom prop
lights
- Beacon
- Roading lights
tires
- Galaxy – pneumatic directional
- Camso – solid directional
- Maxam – solid non-directional
attachment coupler
- IT Coupler (Manual)
- IT Coupler (Hydraulic)
auxiliary hydraulic connections
- Twist to connect hydraulic quick disconnects
carriage
- Standard – 1270 mm (50 in)
- Standard – 1829 mm (72 in)
- Side Tilt/Rotating – 1270 mm (50 in)
- Side Tilt/Rotating – 1829 mm (72 in)
- Hydraulic Fork Positioner – 1829 mm (72 in)
forks
- Pallet Forks – 1220 mm (48 in)
- Pallet Forks – 1525 mm (60 in)
- Pallet Forks – 1829 mm (72 in)
other work tool attachments
- General Purpose Bucket
- Truss Boom – 3.7 m (12 ft)
