At a glance data:
Continuous Rating:
1530 ekW @ 1.0pf
Fuel Type:
Natural Gas & Propane
Maximum Electrical Efficiency:
45.3%
Frequency:
50 / 60 Hz
Overview

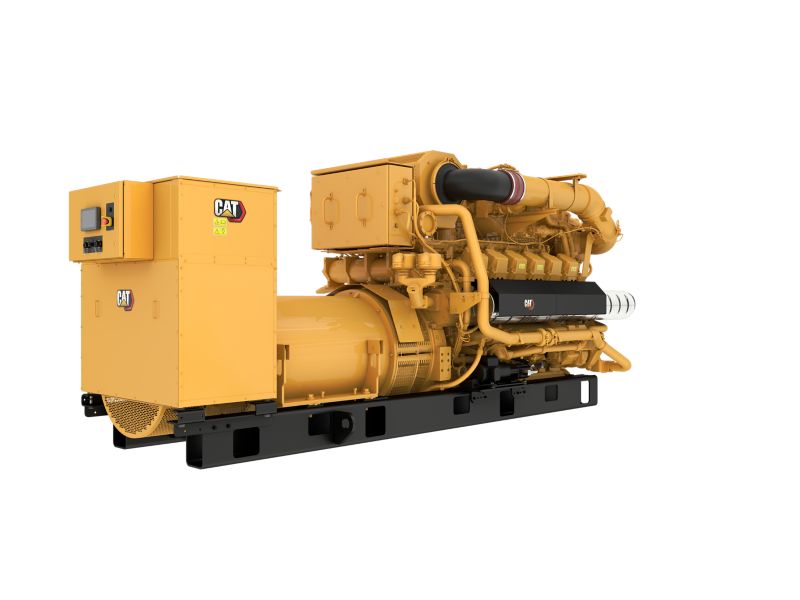

G3520K Gas Generator
Category:
Gas Generator Sets
Category:
Gas Generator Sets
Brand:
Caterpillar
Brand:
Caterpillar
Generator Set Specifications
Continuous Rating:
1530 ekW @ 1.0pf
Fuel Type:
Natural Gas & Propane
Maximum Electrical Efficiency:
45.3%
Frequency:
50 / 60 Hz
RPM:
1500
Engine Specifications
Engine Model:
G3512K
Displacement:
3576in³
Aspiration:
TA
Bore:
6.7in
Stroke:
8.5in
Generator Set Dimensions
Length:
215in
Width:
71.97in
Height:
89.49in
Dry Weight - Genset:
37,082lb
Engine Specifications
Compression Ratio:
10.5
Governor Type:
Adem 6
Generator Set Specifications
Speed:
1500 RPM
Frequency:
50/60 Hz
Standard Equipment
cooling
- Engine driven water pumps for jacket water and aftercooler.
- SCAC control valve
- Jacket water and SCAC thermostats.
- ANSI/DN customer flange connections for JW inlet and outlet.
control panel
- ECS 100 with colored HMI
- Ethernet Telematics
air inlet
- Two-element single-stage air cleaner with enclosure and service indicator.
governing system
- ADEM 6
exhaust
- Center section cooled turbocharger with Cat flanged outlet.
- Dry exhaust manifolds, insulated and shielded.
- Individual exhaust port and turbocharger outlet wired to Integrated Tmeperature Sensing Module (ITSM) with GECM providing alarms and shutdowns.
fuel system
- Electronic fuel metering valve
- EN7462/CSAB149:3, NFPA37
- Throttle plate, 24V DC actuator, controlled by GECM
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve.
generator
- Operation and maintenance manuals
- Busbar connections
- IVR - Intergrated voltage regulator
- Paint- Caterpillar Yellow except rails gloss black
- Parts book
- Reactive droop
- Winding temperature detectors
- Crankshaft Vibration Damper and Guard
- RH/LH Service
- Anti-condensation space heater
- SR5 / N9500
lube
- Electric Pre-lube pump
starting/charging
- 24V starting motors
ignition system
- Integrated Cylinder Pressure Sensor (ICPS)
- Electronic Ignition System (controlled by ADEM 6)
Optional Equipment
control panel
- Load Share Module
- ECS 200 with colored HMI
- Cellular telematics
- Expandable Ethernet modules
- Remote HMI displays
- CAN 2 connection point
- Expandable I/O
air inlet
- Off Engine Air Cleaner - Mounting Brackets and Piping
circuit breaker
- LSI/LSIG/LSIG-P Long-Time, Short-Time, Instantaneous Annunciator, ground fault protect, ground fault annunciate
- Non-par/Par Breakers
- Rear-mounted
- 5000A 3-Pole IEC/ULCSA Rated Circuit Breakers
cooling
- Coolant level drain line with valves
- Inlet/Outlet RH and LH connections
lube
- Ship oil filled or dry(Ultra40)
- SYNHP (only ship dry)
- Oil Level Regulator
starting/charging
- Battery with cables and rack (shipped loose)
- Engine barring device
- Jacket water heater (220/400/240/480V)
- 60A, 24V charging alternator (requires engine driven pumps)
exhaust
- Muffler and spark-arresting muffler with companion flanges
- Flange, Elbow, and Flexible Fitting
- Exhaust Expander
fuel system
- Fuel filter
- Gas pressure regulator
- Gas Knockdown Regulator
- Gas shutoff valve 24V, Energized-To-Run (ETR)
generator
- Cable access box
- Thermostate for space heater
- Generator space heater (with optional heater control)
- Manual voltage control
- NEMA/IEC Busbars
- Bearing temperature detectors
- Generator air filter
- Medium and high voltage generators and attachment
- Current transformer, differential current transformer, potential transformer
- Low voltage extension box
general
- Tool set
- US AID Emblem
- Special paint order
- Digital diagnostic tool
package
- Seismic Isolators
- Spring Isolators
grid code compliance
- 50 Hz: Germany (HV/MV), Great Britain, Italy (HV/MV), Belgium, Polan, Netherlands, Romania, Spain, France, Czech Republic, Greece, Ireland, and European Standard
