At a glance data:
Engine Power - 1,600 rpm ISO 14396:2002:
321hp
Engine Power - 1,600 rpm ISO 14396:2002:
325 hp (metric)
Engine Model:
Cat® C9.3B
Gross Power - 1,600 rpm SAE J1995:2014:
325hp
Overview

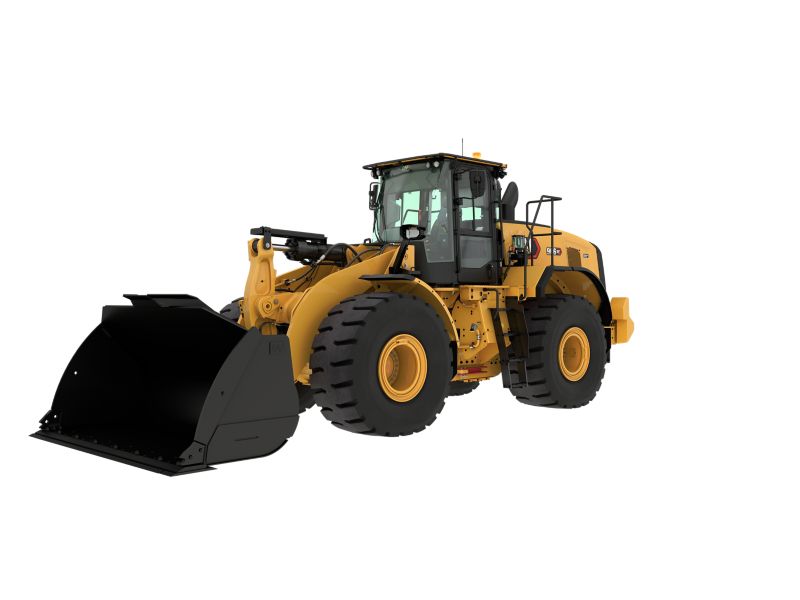

The Cat® 966 XE Wheel Loader is built to move more while burning less. Designed for tough jobs across construction, mining, and industrial sites, it delivers powerful performance with smart systems—including a continuously variable transmission (CVT)—that streamline every pass. Operator-focused features help to enhance safety and control, while fewer service stops and strong dealer support keep your crew productive and your operation ahead of schedule.
Category:
Medium Wheel Loaders
Category:
Medium Wheel Loaders
Brand:
Cat
Brand:
Cat
Engine
Engine Power - 1,600 rpm ISO 14396:2002:
321hp
Engine Power - 1,600 rpm ISO 14396:2002:
325 hp (metric)
Engine Model:
Cat® C9.3B
Gross Power - 1,600 rpm SAE J1995:2014:
325hp
Gross Power - 1,600 rpm SAE J1995:2014:
329 hp (metric)
Net Power - 1,600 rpm ISO 9249:2007, SAE J1349:2011:
298kW
Net Power - 1,600 rpm ISO 9249:2007, SAE J1349:2011:
302 hp (metric)
Engine Torque - 1,200 rpm ISO 14396:2002:
1313lbf·ft
Gross Torque - 1,200 rpm SAE J1995:2014:
1327hp
Net Torque - 1,200 rpm ISO 9249:2007, SAE J1349:2011:
1226lbf·ft
Displacement:
567.5in³
Emissions:
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV and Japan 2014 emission standards.
Biodiesel Capability:
Up to B20¹
Note (1):
The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (2):
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels**up to:
20% biodiesel FAME (fatty acid methyl ester)
***100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application.
Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Weights
Operating Weight:
51124lb
Note:
Weight based on a machine configuration with Bridgestone 26.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, front manual differential/open rear axles, powertrain guard, secondary steering, sound suppression, and a 4.2 m³ (5.5 yd³) general purpose bucket with BOCE.
Transmission
Forward - 1:
4.3mile/h
Forward - 2:
8mile/h
Forward - 3:
14.1mile/h
Forward - 4:
24.5mile/h
Reverse - 1:
4.3mile/h
Reverse - 2:
8mile/h
Reverse - 3:
17.9mile/h
Note:
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 849 mm (33 in) roll radius.
Sound
Operator Sound Pressure Level - ISO 6396:2008:
67dB(A)
Exterior Sound Power Level - ISO 6395:2008:
107dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹:
67dB(A)
Exterior Sound Power Level - ISO 6395:2008²:
105dB(A)
Note (1):
¹Including countries that adopt the EU and UK Directives.
Note (2):
²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
- If equipped with R134a (Global Warming Potential = 1430), the system contains 1.600 kg (3.5 lb) of refrigerant, which has a CO2 equivalent of 2.288 metric tonnes (2.522 tons).
- If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.389 kg (3.1 lb) of refrigerant, which has a CO2 equivalent of .001 metric tonnes (1.10 tons).
Operating Specifications
Static Tipping Load - Full 37° Turn:
32727lb
Static Tipping Load - Full 37° Turn - No Tire Deflection:
35224lb
Breakout Force:
38999lbf
Note (2):
Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Note (1):
For a machine configuration as defined under “Weight.”
Service Refill Capacities
Fuel Tank:
80.1gal (US)
DEF Tank:
6.9gal (US)
Cooling System:
17.4gal (US)
Crankcase:
6.1gal (US)
Transmission:
16.6gal (US)
Differential - Final Drives - Front:
15.1gal (US)
Differential - Final Drives - Rear:
15.1gal (US)
Hydraulic Tank:
30.1gal (US)
Hydraulic System
Implement System - Maximum Operating Pressure:
4496psi
Hydraulic Cycle Time - Total:
9.5s
Dimensions - Standard Lift
Height - Top of Hood:
9.42ft
Height - Top of ROPS:
11.83ft
Ground Clearance:
1.33ft
Wheel Base:
11.67ft
Overall Length - Without Bucket:
24.33ft
Hinge Pin Height at Carry Height:
2ft
Hinge Pin Height at Maximum Lift:
13.92ft
Lift Arm Clearance at Maximum Lift:
21.08ft
Rack Back - Maximum Lift:
62°
Rack Back - Carry Height:
50°
Width over Tires (Loaded):
9.92ft
Tread Width:
7.25ft
Note:
All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires.
Dimensions - High Lift
Height - Top of Hood:
9.42ft
Height - Top of ROPS:
11.83ft
Ground Clearance:
1.33ft
Wheel Base:
11.67ft
Overall Length - Without Bucket:
26.5ft
Hinge Pin Height at Carry Height:
2.5ft
Hinge Pin Height at Maximum Lift:
15.75ft
Lift Arm Clearance at Maximum Lift:
13.67ft
Rack Back - Maximum Lift:
71°
Rack Back - Carry Height:
49°
Width over Tires (Loaded):
9.92ft
Tread Width:
7.25ft
Note:
All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires.
Rack Back - Carry Height:
49 degrees
Engine
Displacement:
9.3 L
Engine Torque @ 1,200 rpm – ISO 14396:2002:
1313lb/ft
Sound
With Cooling Fan Speed at Maximum Value - Note:
Distance of 15 m (49.2 ft), moving forward in second gear ratio.
Engine
Gross Torque @ 1,200 rpm – SAE J1995:2014:
1327lb/ft
Dimensions - Standard Lift
Rack Back at Ground:
40 degrees
Hydraulic System
Hydraulic Cycle Time - Total:
10.1 seconds
Dimensions - High Lift
Rack Back - Maximum Lift:
71 degrees
Rack Back at Ground:
37 degrees
Dimensions - Standard Lift
Rack Back - Maximum Lift:
62 degrees
Rack Back - Carry Height:
50 degrees
Engine
Note (3):
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Cab, pressurized, sound suppression
- Door, remote opening system
- EH implement controls, parking brake
- Steering, joystick
- Seat, suede/cloth, air suspension, heated
- Mirrors, heated
- Touchscreen display
- Keypad, programmable buttons
- Air conditioner, heater, defroster (auto temp, fan)
- Sun visor, front and rear retractable
- Windows, front, laminated
powertrain
- Cat® C9.3B engine
- Electric fuel priming pump
- Fuel-water separator and secondary fuel filter
- Engine, air precleaner
- Axles, auto front differential lock
- Axles, ecology drains
- Transmission, continuously variable
- Rimpull control
- Throttle lock mode
- Hill and speed hold on grades
- Service brakes, hydraulic, fully enclosed wet disc, wear indicators
- Park brake, caliper on front axles, spring applied-pressure released
electrical
- Starting and charging system, 24V
- Starter, electric, heavy duty
- Lights: halogen, 4 work lights, 2 rearview lights
- Lights: roading with turn signals
hydraulics
- Implement system, load sensing with electro-hydraulic variable displacement piston pump
- Steering system, load sensing with dedicated variable displacement piston pump
- Ride control, dual accumulators
- Oil sampling valves, Cat XT hoses
linkage
- Standard lift, Z-bar
- Kickouts: lift and tilt
monitoring system
- Front dash with analog gauges, LCD display, and warning lights
- Primary touchscreen monitor (Cat Payload, quad screens, machine settings and messages)
- Maintenance reminders
onboard technologies
- Autodig with auto set tires
- Operator ID and machine security
- Application profiles
- Job aids
- Controls help and eOMM (Not available in all languages)
- Cat Payload
- Key Features Inform
- Bucket Carry Display Widget
- Remote Flash
safety
- Seat belt reminder
- 2-point seat belt
- Rear vision camera
- Window cleaning platform, front
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Footrest
- HMU steering wheel
- Implement joystick (2V, 3V only)
- Entertainment radio (FM, AM, USB, BT)
- Entertainment radio (DAB+)
- CB radio ready
- Seat, leather/cloth, air suspension, heated/cooled
- Windows, front, heavy duty
- Full cab window guard
powertrain
- Turbine, air precleaner
- Radiator, high debris
- Cooling fan, reversible
- Axles, auto front and rear differential locks
- Axles, AOC ready, extreme temperature seals
- Axles, oil cooler
electrical
- Cold start, 120V or 240V
- Lights: LED
hydraulics
- 3rd and 4th auxiliary functions with ride control
- Quick coupler control
linkage
- High lift, Z-bar
monitoring system
- Tire pressure monitor
onboard technologies
- Cat Advanced Payload
- Cat Payload for Trade (Available in Europe and Australia. Country certifications vary. Contact your Cat dealer for more information.)
- Cat Payload Printer with E-ticket
safety
- 4-point seat belt (kit)
- Rear vision camera, dedicated
- Surround vision, dedicated
- Window cleaning platform, front
- Collision warning system
- Collision mitigation system
- Reverse strobe lights (Not compatible with roading arrangements)
- Warning beacon
- Secondary steering system, electrical (Standard where mandated)
- Wheel chocks
- Remote control
additional equipment
- Cat Autolube system
- Fenders, roading
- Guards: powertrain, crankcase, cab, cylinders, rear
- Biodegradable hydraulic oil
- High-speed oil change system
- Rear cab access
- Single Life Cutting Edge GET
- Toolbox
special configurations
- Aggregate handler
- Waste and industrial
- Forestry
- Corrosion resistant
