At a glance data:
Engine Power - 1,700 rpm ISO 14396:2002:
432hp
Engine Power - 1,700 rpm ISO 14396:2002:
438 hp (metric)
Engine Model:
Cat® C13
Gross Power - 1,700 rpm SAE J1995:2014:
436hp
Overview

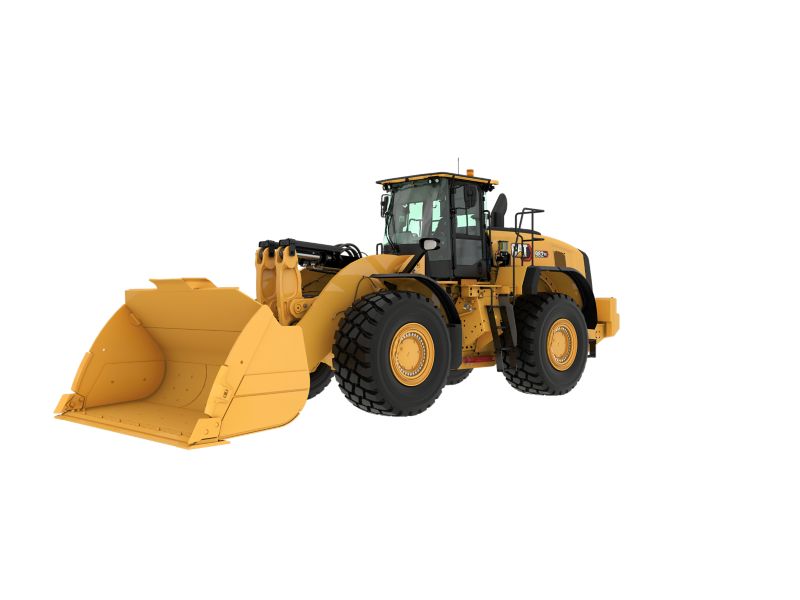

The Cat® 982 XE Wheel Loader is engineered to crush downtime and fuel costs in one powerful package. Its advanced continuously variable transmission (CVT) delivers seamless power and high rimpull for smooth, responsive control. Advanced technology and deep system integration push efficiency to the max, while extended service intervals and enhanced safety features keep crews moving confidently. From heavy construction to high-volume mining, the 982 XE is the machine that turns hard work into high returns.
Category:
Medium Wheel Loaders
Category:
Medium Wheel Loaders
Brand:
Cat
Brand:
Cat
Engine
Engine Power - 1,700 rpm ISO 14396:2002:
432hp
Engine Power - 1,700 rpm ISO 14396:2002:
438 hp (metric)
Engine Model:
Cat® C13
Gross Power - 1,700 rpm SAE J1995:2014:
436hp
Gross Power - 1,700 rpm SAE J1995:2014:
442 hp (metric)
Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011:
404hp
Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011:
409 hp (metric)
Engine Torque - 1,200 rpm ISO 14396:2002:
1620lbf·ft
Gross Torque - 1,200 rpm SAE J1995:2014:
1636lbf·ft
Net Torque - 1,100 rpm ISO 9249:2007, SAE J1349:2011:
1515lbf·ft
Displacement:
763in³
Emissions:
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Biodiesel Capability:
Up to B20¹
Note (1):
The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (2):
¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels**up to:
20% biodiesel FAME (fatty acid methyl ester)
***100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application.
Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Weights
Operating Weight:
78264lb
Note:
Weight based on a machine configuration with Bridgestone 875/65R29 VLTS L4 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, open differential axles (front/rear), secondary steering, sound suppression, and a 6.1 m³ (8.0 yd³) general purpose bucket with BOCE.
Transmission
Forward - 1:
3.9mile/h
Forward - 2:
7.3mile/h
Forward - 3:
13mile/h
Forward - 4:
24.5mile/h
Reverse - 1:
4.4mile/h
Reverse - 2:
8.4mile/h
Reverse - 3:
17.4mile/h
Note:
Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 914 mm (36 in) roll radius.
Sound
Operator Sound Pressure Level - ISO 6396:2008:
70dB(A)
Exterior Sound Power Level - ISO 6395:2008:
110dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹:
70dB(A)
Exterior Sound Power Level - ISO 6395:2008²:
107dB(A)
Note (1):
¹Including countries that adopt the EU and UK Directives.
Note (2):
²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.600 kg (3.5 lb) of refrigerant, which has a CO2 equivalent of 2.288 metric tonnes (2.522 tons). - If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.389 kg (3.1 lb) of refrigerant, which has a CO2 equivalent of .001 metric tonnes (1.10 tons).
Operating Specifications
Static Tipping Load - Full 40° Turn - With Tire Deflection:
46526lb
Static Tipping Load - Full 40° Turn - No Tire Deflection:
59060lb
Breakout Force:
59060lbf
Note (1):
For a machine configuration as defined under “Weight.”
Note (2):
Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Service Refill Capacities
Fuel Tank:
112.5gal (US)
DEF Tank:
5.5gal (US)
Cooling System:
13.7gal (US)
Crankcase:
9.8gal (US)
Transmission:
20.3gal (US)
Differential - Final Drives - Front:
24.3gal (US)
Differential - Final Drives - Rear:
24.3gal (US)
Hydraulic Tank:
40.4gal (US)
Hydraulic System
Implement System - Maximum Operating Pressure:
4975psi
Hydraulic Cycle Time - Total:
10.1s
Dimensions - Standard Lift
Height - Top of Hood:
10ft
Height - Top of ROPS:
12.5ft
Ground Clearance:
1.33ft
Wheel Base:
12.5ft
Overall Length - Without Bucket:
28.25ft
Hinge Pin Height at Carry Height:
2.58ft
Hinge Pin Height at Maximum Lift:
15.5ft
Lift Arm Clearance at Maximum Lift:
12.75ft
Rack Back - Maximum Lift:
57°
Rack Back - Carry Height:
48°
Width over Tires (Loaded):
11.42ft
Tread Width:
8.33ft
Note:
All dimensions are approximate and based on machine equipped with 6.1 m³ (8.0 yd³) general purpose bucket with BOCE and Bridgestone 875/65R29 VLTS L4 radial tires.
Dimensions - High Lift
Height - Top of Hood:
10ft
Height - Top of ROPS:
12.5ft
Ground Clearance:
1.33ft
Wheel Base:
12.5ft
Overall Length - Without Bucket:
29.92ft
Hinge Pin Height at Carry Height:
2.92ft
Hinge Pin Height at Maximum Lift:
16.58ft
Lift Arm Clearance at Maximum Lift:
13.33ft
Rack Back - Maximum Lift:
56°
Rack Back - Carry Height:
49°
Width over Tires (Loaded):
11.42ft
Tread Width:
8.33ft
Note:
All dimensions are approximate and based on machine equipped with 6.1 m³ (8.0 yd³) general purpose bucket with BOCE and Bridgestone 875/65R29 VLTS L4 radial tires.
Engine
Engine Power @ 1,700 rpm – ISO 14396:2002:
432hp
Gross Power @ 1,700 rpm – SAE J1995:2014:
436hp
Displacement:
12.5L
Net Torque @ 1,100 rpm – ISO 9249:2007, SAE J1349:2011:
1515lb/ft
Gross Torque @ 1,200 rpm – SAE J1995:2014:
1636lb/ft
Engine Torque @ 1,200 rpm – ISO 14396:2002:
1620lb/ft
Note (3):
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Cab, pressurized, sound suppression
- Door, remote opening system
- EH implement controls, parking brake
- Steering, joystick
- Seat, suede/cloth, air suspension, heated
- Mirrors, heated
- Touchscreen display
- Keypad, programmable buttons
- Air conditioner, heater, defroster (auto temp, fan)
- Sun visor, front and rear retractable
- Windows, front, safety laminated round glass
powertrain
- Cat® C13 engine
- Electric fuel priming pump
- Fuel-water separator and secondary fuel filter
- Engine, air precleaner
- Axles, open differentials
- Axles, ecology drains, AOC ready
- Transmission, continuously variable
- Rimpull control
- Throttle lock mode
- Hill and speed hold on grades
- Service brakes, hydraulic, fully enclosed wet disc, wear indicators
- Park brake, caliper on front axles, spring applied-pressure released
electrical
- Starting and charging system, 24V
- Starter, electric, heavy duty
- Lights: halogen, 4 work lights, 2 rearview lights
- Lights: roading with turn signals
hydraulics
- Implement system, load sensing with variable displacement piston pump
- Steering system, load sensing with dedicated variable displacement piston pump
- Ride control, dual accumulators
- Oil sampling valves, Cat XT hoses
linkage
- Standard lift, Z-bar
- Kickouts: lift and tilt
monitoring system
- Front dash with analog gauges, LCD display, and warning lights
- Primary touchscreen monitor (Cat Payload, quad screens, machine settings and messages)
- Maintenance reminders
onboard technologies
- Autodig with auto set tires
- Operator ID and machine security
- Application profiles
- Job aids
- Controls help and eOMM (Not available in all languages)
- Cat Payload
- Key Features Inform
- Bucket Carry Display Widget
- Remote Flash
safety
- Seat belt reminder
- 2-point seat belt
- Rear vision camera
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Footrest
- Implement joystick (2V, 3V only)
- Entertainment radio (FM, AM, USB, BT)
- Entertainment radio (DAB+)
- CB radio ready
- Seat, leather/cloth, air suspension, heated/cooled
- Windows, front, heavy duty
- Full cab window guard
powertrain
- Turbine, air precleaner
- Radiator, high debris
- Cooling fan, reversible
- Axles, limited slip differential(s)
- Axles, extreme temperature seals
- Axles, oil cooler
electrical
- Cold start, 120V or 240V
- Lights: LED
hydraulics
- 3rd and 4th auxiliary functions with ride control
- Quick coupler control
linkage
- High lift, Z-bar
monitoring system
- Tire pressure monitor
onboard technologies
- Cat Advanced Payload
- Cat Payload for Trade (Available in Europe and Australia. Country certifications vary. Contact your Cat dealer for more information.)
- Cat Payload Printer with E-ticket
safety
- 4-point seat belt (kit)
- Rear vision camera, dedicated
- Surround vision, dedicated
- Window cleaning platform, front
- Collision warning system
- Collision mitigation system
- Reverse strobe lights (Not compatible with roading arrangements)
- Warning beacon
- Secondary steering system, electrical (Standard where mandated)
- Wheel chocks
- Remote control
additional equipment
- Cat Autolube system
- Fenders, roading
- Guards: powertrain, crankcase, cab, cylinders, rear
- Biodegradable hydraulic oil
- High-speed oil change system
- Fast fill fuel tank
- Single Life Cutting Edge GET
- Toolbox
special configurations
- Aggregate handler
- Waste and industrial
- Forestry
