At a glance data:
Engine Output - SAE J1995:
824hp
Bucket Payload:
16.1ton (US)
Operating Weight:
154.3ton (US)
Note:
Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
Overview

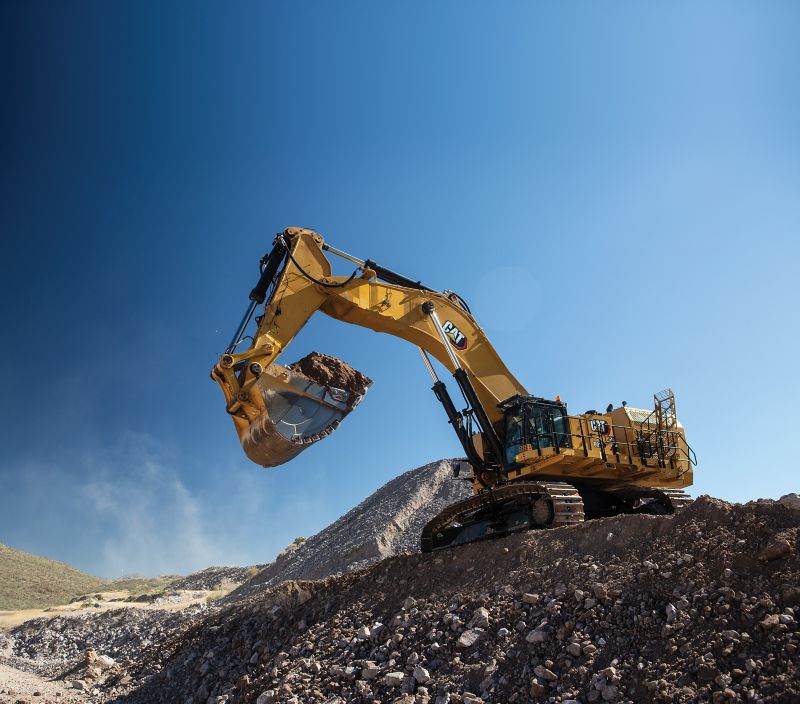

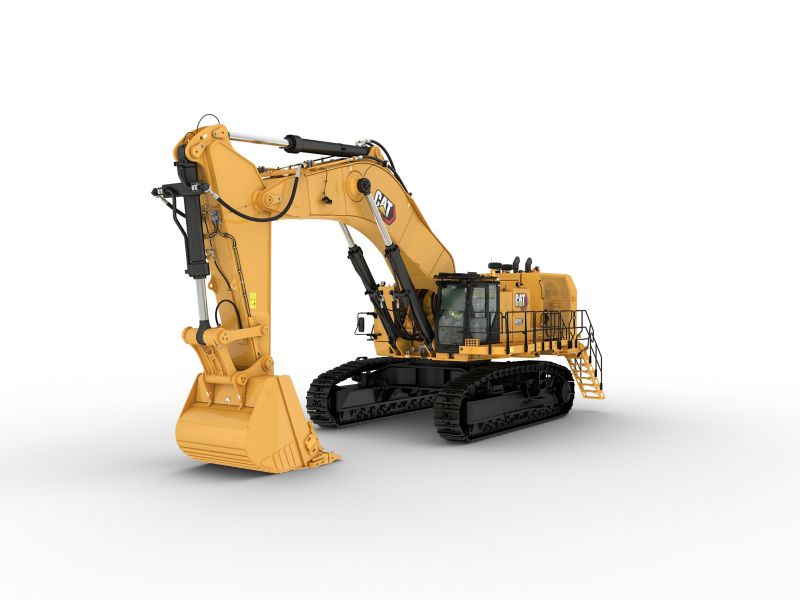

The next generation Cat® 6015 Hydraulic Shovel lets you move more material at a low cost, so you can achieve production targets, deliver on your commitments, meet deadlines and maximize your profitability. With high tool carrying capacity, increased durability and the most powerful engine in its class, the Cat 6015 generates higher productivity and fuel efficiency than other shovels. And it’s offered with more and better options that let you match your machine to your operation — from access and cold weather packages to multiple stick and track pad options. In addition, a large range of buckets is available, giving you optimum payload and machine efficiency for your operation. And the 6015’s high tool carrying capacity gives you the ability to employ large buckets and move more in fewer cycles.
Category:
Hydraulic Mining Shovels
Category:
Hydraulic Mining Shovels
Brand:
Cat
Brand:
Cat
General
Engine Output - SAE J1995:
824hp
Bucket Payload:
16.1ton (US)
Operating Weight:
154.3ton (US)
Note:
Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
Engine - U.S. EPA Tier 4 Final
Engine Model:
Cat® C27
Gross Power - SAE J1995:
824hp
Net Power - SAE J1349:
812hp
Engine - Cat C27 with Tier 4 Final Emission Standards
Number of Cylinders:
12
Bore:
5.4in
Stroke:
6in
Displacement:
1648in³
Engine - Equivalent to U.S. EPA Tier 2
Engine Model:
Cat® C27
Gross Power - SAE J1995:
839hp
Net Power - SAE J1349:
829hp
Engine - Cat C27 with Tier 1 or Tier 2 Equivalent Emission Standards
Number of Cylinders:
12
Bore:
5.4in
Stroke:
6in
Displacement:
1648in³
Aspiration:
Turbocharged and air-to-air aftercooled
Engine
Emissions:
U.S. EPA Tier 4 Final and EU Stage V; China Nonroad Stage III, equivalent to U.S. EPA Tier 2; Equivalent to U.S. EPA Tier 1
Operating Weights - Backhoe
Operating Weight:
154ton (US)
Weights
Ground Pressure:
23.6psi
Note:
Operating weight includes: 700 mm (28 in) track pads, 7.6 m (24 ft 11 in) boom, 3.4 m (11 ft 2 in) stick, standard rock bucket, 100% fuel and lubricants
Track
Standard:
28in
Wide:
35in
Extra Wide:
39in
Number of Shoes - Each Side:
46
Number of Track Rollers - Each Side:
9
Number of Carrier Rollers - Each Side:
3
Track Pads:
Heavy Duty (HD) with double grouser
Drive
Travel Speed - Two Stages - 1st Stage - Maximum:
1.6mile/h
Travel Speed - Two Stages - 2nd Stage - Maximum:
2.3mile/h
Maximum Drawbar Pull - Forward:
192886lbf
Maximum Drawbar Pull - Reverse:
220987lbf
Gradeability - Travel Drives:
Approximately 42%
Hydraulic Track Tensioning:
With accumulator
Service Refill Capacities
Fuel Tank:
449gal (US)
Cooling System:
44gal (US)
Engine Oil:
23gal (US)
Swing Drive:
2.4gal (US)
Hydraulic System - Including Tank:
463gal (US)
Hydraulic Tank:
253gal (US)
Grease Tank:
57gal (US)
Electrical System
System Voltage:
24 V
Batteries:
4 × 200 Ah (12 V each)
Alternator Rating:
150 A (24 V) in total
Components (1):
Emergency stop switches: one in cab, three in engine module, one pull rope accessible from ground level
Components (2):
Four maintenance free batteries
Components (3):
Lockable battery isolation switch
Components (5):
14 LED high-brightness working lights
Components (4):
5 LED service lights
Components (6):
2 electric horns
Components (7):
Two (2) lights for rear end
Components (9):
One (1) beacon light on cabin roof
Components (8):
One (1) light for machine deck/service
Hydraulic System
Main Pumps:
3 × variable swash plate pumps
Main Pumps - Maximum Total Oil Flow:
407gpm
Main Pumps - Maximum Pressure - Attachment:
4641psi
Pilot Pump - Maximum Flow, Pilot:
40.4gpm
Pilot Pump:
1 × gear pump
Pilot Pump - Maximum Pressure, Pilot:
1378psi
Main Pumps - Maximum Pressure - Travel:
4641psi
Engine Fan Pump - Maximum Flow, Engine Fan:
53.1gpm
Engine Fan Pump - Maximum Pressure, Engine Fan:
3191psi
Swing Pump:
1 × variable swash plate pump
Engine Fan Pump:
1 × variable swash plate pump
Swing Pump - Maximum Flow - Swing:
127gpm
Hydraulic Fan Pump - Maximum Pressure, Hydraulic Fan:
1958psi
Hydraulic Fan Pump - Maximum Flow, Hydraulic Fan:
22.7gpm
Hydraulic Fan Pump:
1 × variable swash plate pump
Swing Pump - Maximum Pressure - Swing:
5294psi
Hydraulic Oil Cooling - Maximum Flow:
284gpm
Hydraulic Oil Cooling - Diameter of Fan:
46in
Filters (1):
Full-flow high-pressure filters (200 μm) for main pumps
Filters (2):
Full-flow filters (20 μm), return circuit
Filters (3):
Pressure filters (16 μm), servo circuit
Filters (4):
Full-flow filters (6 μm), cooling return circuit
Filters (5):
Swing charge filter (15 μm)
Filters (6):
Pump case return screens (125 μm)
Swing System
Swing Drive:
Two (2) compact planetary transmissions with axial piston motors
Parking Brake:
Wet multiple disc brake, spring-loaded/hydraulically released
Maximum Swing Speed:
4.9r/min
Swing Ring:
Triple-race roller bearing with sealed internal greasing
Features (1):
Closed-loop with torque control
Features (2):
Hydraulic braking of swing motion when control is returned to neutral position or by counteracting control for stronger braking
Features (3):
All raceways and the internal gearing of swing ring supplied by automatic central lubrication system
Centralized Service Area
Feature:
Accessible from ground level for diesel fuel and grease
Equipped With (1):
One pull rope emergency stop
Equipped With (2):
Quick couplings for: diesel fuel and grease
Undercarriage
Travel Speed - Two Stages - 1st Stage - Maximum:
1.6mile/h
Travel Speed - Two Stages - 2nd Stage - Maximum:
2.3mile/h
Maximum Tractive Force:
197,157lbf
Drive
Maximum Drawbar Pull:
179,847lbf
Undercarriage
Maximum Drawbar Pull - Reverse:
220987lbf
Gradeability - Travel Drives:
38°/78% (SAE J1309)
Number of Shoes - Each Side:
46
Hydraulic Track Tensioning:
With accumulator
Number of Track Rollers - Each Side:
9
Number of Carrier Rollers - Each Side:
3
Components (1):
Heavy Duty (HD) with double-grouser track pads
Components (2):
Chain links connected by hardened pins and bushings
Components (3):
Postive Pin Retention (PPR2) sealed and greased track design
Components (4):
Hardened running surfaces of sprockets, idlers, rollers and track chain links
Components (5):
Fully hydraulic self-adjusting track tensioning system with accumulator
Components (6):
Automatic hydraulic retarder valve
Components (7):
Acoustic travel alarm (forward and reverse)
Operator's Cab
Components (1):
Pressurized cab with positive filtration
Components (2):
Heated cab mirror
Components (3):
Sliding upper door window
Components (4):
Glass-breaking safety hammer
Components (5):
Removeable lower windshield within cab storage
Components (6):
Joystick Controls Alternate Patterns including ISO/JIS, BHL, MHI, KOBE, or SCM
Components (7):
Beverage holder
Components (8):
Literature holder
Components (9):
AM/FM radio
Components (10):
FM/AM radio with MP3 auxiliary port
Components (11):
Two stereo speakers
Components (12):
Storage shelf suitable for lunch or toolbox
Components (13):
Color LCD display with service parameters, event and diagnostic annunciation, preventative maintenance, trip total, lifetime totals. Gauges for engine speed, engine oil pressue, and hydraulic oil temperature
Components (14):
Head and arm rests
Components (15):
Independently adjustable seat consoles with integrated joysticks
Components (16):
Neutral lever (lock out) for all controls
Components (17):
Travel control pedals with removable hand levers
Components (18):
Two power outlets, 10 amp (total)
Components (19):
Laminated front upper window and tempered glass other windows
Automatic Lubrication System
Capacity - Grease Barrel:
18gal (US)
Type (1):
Central bank lubrication system
Type (2):
Grease is automatically applied to all attachment pivot points, slew bearing, and bucket linkage
Type (3):
Standard grease reel on machine for bucket linkage
Type (4):
Grease refill service point accessible from ground
Attachments
Type (1):
Boom and stick torsion-resistant with welded box design
Type (2):
High-tensile steel with solid steel castings at pivot areas
Type (3):
Boom and stick stress-relieved after welding
Type (4):
Float valve for boom down function
Buckets Equipped With:
– Special liner material covering main wear areas inside and outside – Lip shrouds – Wing shrouds – Heel shrouds
Backhoe Attachment (BH) - Working Range
Maximum Digging Depth:
26.3ft
Maximum Digging Reach:
45.6ft
Maximum Digging Height:
41.9ft
Maximum Dump Height:
27.9ft
Backhoe Attachment (BH) - Digging Forces
Bucket Digging Force - SAE:
112600lbf
Bucket Digging Force - ISO:
120,947lbf
Stick Digging Force - ISO:
104,761lbf
Stick Digging Force - SAE:
98800lbf
Backhoe Attachment (BH) - Backhoe
Capacity 1:1:
10.6yd³
Total Width:
8.8ft
Number of Teeth:
5
Tooth System:
Cat C70 or M75
Weight - Including Standard Wear Package:
18521lb
Maximum Material Density - Loose:
3030lb/yd³
Weights
Operating Weight:
308,000lb
Standard Equipment
cat powertrain
- Cat C27 Engine
- Aftertreatment system (used in Tier 4 Final only): – Diesel Oxidation Catalyst (DOC) – NOx Reduction System (NRS) – Non-Diesel Exhaust Fluid (DEF) solution
- Air-to-Air After Cooling (ATAAC)
- Turbocharger
- Hydraulically driven radiator fan
- Electronically controlled fan speed
- Micro processed engine management
- Heavy-duty air filters
- Two stage fuel filtration with water separator
- Starting aid -- automatic ether
- Exhaust system heat shields
- Dual 24 V electric starters
- Automatic engine idle shut down
- Automatic fuel priming
hydraulics
- Power Management System with integrated controls: – Flow-on-demand management of implement/travel (3) and swing (1) pumps – Load Enhanced Anticipatory Control (LEAC) to prevent engine lug – Proportional Priority Pressure Compensating (PPPC) technology prioritizes pump flow and pressure to individual functions (boom, stick, and bucket) during simultaneous operations
- Pressure cut-off for main pumps
- Cat Hydraulic Hose assemblies
- Cooling of pump transmission gear oil
- Closed loop swing circuit
- Parking brake enabled switch
- Anti drift swing logic
- Pressure testing points
- Full-flow high-pressure filters (200 μm), main pumps
- Full-flow filters (20 μm), return circuit
- Full-flow filters (6 μm), cooling return circuit
- Pressure filters (6 μm), servo circuit
- Swing charge filters (15 μm)
- Pump case return screens (125 μm)
- Boom float valves and regeneration circuit
electrical system
- Four maintenance-free batteries
- Lockable battery isolator switch
- 14 LED high-brightness working flood lights
- 5 LED service lights
- Two electric horns
undercarriage
- Positive Pin Retention (PPR2) sealed and greased track design
- Heavy Duty (HD) tracks with cast double-grouser track pads
- HD fixed axle rollers
- HD fixed axle idlers
- HD undercarriage protection: - Propel motor guard - Propel tube guards - Slew bearing lube line protection
- Automatic hydraulic retarder valve
- Acoustic travel alarm (forward and reverse)
- Travel motor covers with service doors
- Hardened running surfaces of sprockets, idlers, rollers and track chain links
- Fully hydraulic self-adjusting track tensioning system with accumulator
automatic lubrication system
- Grease container, 215 L (57 gal) capacity
- Grease is automatically applied to all attachment pivot points, slew bearing and bucket linkage
operator environment
- Single HVAC system
- Pressurized cab with positive filtration
- Travel control pedals with removable hand levers
- Pneumatically cushioned and multi adjustable comfort seat with: – Seat heating – Lumbar support – Two-point safety belt – Head and arm rests
- Sliding upper door window
- Removable lower windshield within cab storage
- Independently adjustable seat consoles with integrated joysticks
- Neutral lever (lock out) for all controls
- Two power outlets, 10 amp total
- Electronic-Hydraulic Servo Control
- Joystick controls alternate patterns (ISO/JIS, BHL, MHI, KOBE, or SCM)
- FM/AM radio with MP3 auxiliary port
- Sliding side window
- Wiper/washer for lower and upper windshield
- Roller blind at windshield
- Color LCD 178 mm (7") touchscreen display includes: – Service parameters for engine, hydraulics, and lubrication – Event and diagnostic annunciation – Gauges for engine speed, engine oil pressure, hydraulic oil temperature – Preventative maintenance – Trip total – Lifetime totals
- Fixed access ladder
- Heated cab mirror
- Document Storage
backhoe attachment
- Boom 7.6 m (24 ft 11 in)
- Boom and stick thermally stress relieved after welding
- Bucket wear package
cat technology
- Cat Product Link™ Elite (Cellular)
- Cat MineStar™ Solutions Ready
service and maintenance
- Engine oil exchange interval -- 500 hours
- Hydraulic oil change interval – 5,000 hours
- Scheduled Oil Sampling (S·O·SSM) ports
- Pilot pressure monitoring via Electronic Technician (ET)
- Centralized service area accessible from ground level for – Diesel fuel – Grease
- Cat battery charging connector
- Indicator light for grease
- Standard lubricant
- Jump start receptacle
safety and security
- Emergency stop switches; one in cab, three in engine module, one pull rope accessible from ground level
- Operator Protective Guard (Top Guard)
- Laminated front upper window and tempered glass other windows
- Glass-breaking safety hammer
miscellaneous
- ISO or ANSI decals
Optional Equipment
cat powertrain
- Aluminum cooling package
- Mesabi cooling package
undercarriage
- 700 mm (2 ft 4 in) wide track pads
- 900 mm (3 ft 0 in) wide track pads
- 1000 mm (3 ft 3 in) wide track pads
- Belly plate for additional undercarriage protection
- Track guards – full
- Track guards – center
- HD undercarriage protection: - Propel gearcase cover guard
operator environment
- Powered 45° access stairway
- Camera monitoring system VISION 360 (four cameras and additional color display)
backhoe attachment
- Stick 3.4 m (11 ft 2 in)
- Stick 4.1 m (13 ft 5 in)
- Frontless base machine (no boom, no stick, no linkage)
cat technology
- Cat Product Link Elite (Satellite)
- Cat Product Link Elite (No radio)
cold weather
- Cold Weather Package (120 V): Engine coolant heater - external power source required, 60 Hz
- Cold Weather Package (240 V): Engine coolant heater - External power source required, 50 Hz
service and maintenance
- Cat Bio HYDO™ Advanced hydraulic fluid
- High temperature lubricant
- Low temperature lubricant
safety and security
- Operator Protective Guard (front guard)
buckets
- Additional buckets available, based on application, through your local Cat dealer
Similar Products
6020 Hydraulic Mining Shovel
Engine Output - SAE J1995:
824hp
Bucket Payload:
16.1ton (US)
Operating Weight:
154.3ton (US)
Note:
Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
6030 Hydraulic Shovel
Engine Output - SAE J1995:
824hp
Bucket Payload:
16.1ton (US)
Operating Weight:
154.3ton (US)
Note:
Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
6040 Hydraulic Mining Shovel
Engine Output - SAE J1995:
824hp
Bucket Payload:
16.1ton (US)
Operating Weight:
154.3ton (US)
Note:
Specifications shown above apply to highly regulated, backhoe configuration. Lesser regulated and frontless configurations are also available.
