At a glance data:
Power Range:
1053 - 1211
Frequency:
50 / 60
Emissions:
IMO II, IMO III, IMO II/III, U.S. EPA Tier 4
Displacement:
1959in³
Overview

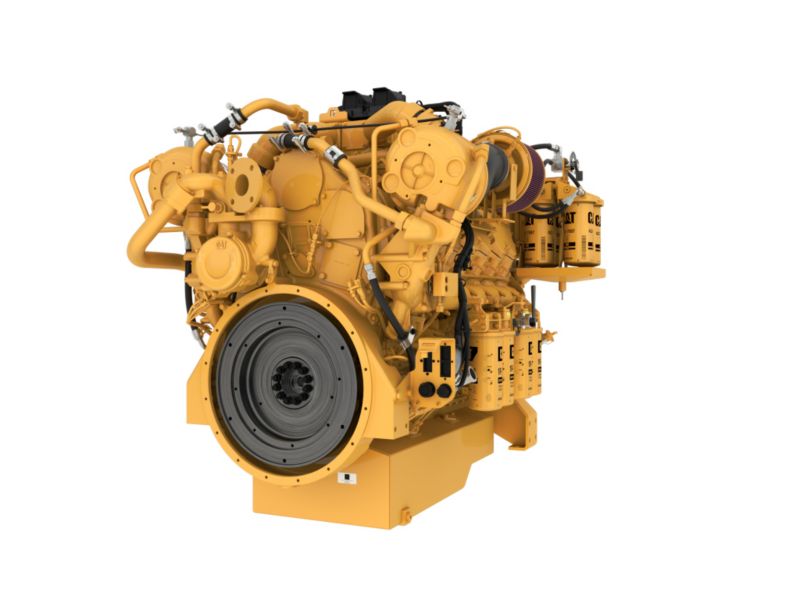

The Cat® C32B engine is a powerful and versatile solution for commercial and high performance applications, offering a rated power of 1053bkW or 1211bkW. It meets stringent emissions standards, including IMO II, IMO II/III, and U.S. EPA Tier 4. The Cat C32B engine has an optimized design to enhance power density, deliver more power without significantly increasing size or weight. This combination of high-power output and strict emissions compliance makes the Cat C32B engine an excellent choice.
Category:
Auxiliary Engines
Category:
Auxiliary Engines
Brand:
Cat
Brand:
Cat
Power Rating
Power Range:
1053 - 1211
Generator Set Specifications
Frequency:
50 / 60
Engine Specifications
Emissions:
IMO II, IMO III, IMO II/III, U.S. EPA Tier 4
Displacement:
1959in³
Rated Engine Speed:
1500 / 1800
Configuration:
V 12, 4-Stroke Cycle Diesel
Governor:
Electronic (ADEM VI)
Aspiration:
Twin Turbocharged - Aftercooled
Flywheel Housing:
SAE No. 0
Rotation from Flywheel End:
Counterclockwise
Bore:
5.7in
Stroke:
6.38in
Oil Change Interval:
750 hour
Cooling:
Heat Exchanger or Keel Cooled
Dimensions & Weights
Width - Engine:
61in
Standard Equipment
general
- Engine does not ship with zinc components
fuel system
- Duplex Fuel Filters, Spin-on, RH & LH service
- Fuel connections size:Supply JIC 37 Deg -10 (7/8-14), Return JIC 37 Deg -8 (3/4-16)
- Fuel transfer pump, gear driven
- Manual fuel priming pump
exhaust system
- Watercooled exhaust manifold and turbocharger
- 4 Bolt 130 mm (5.12 in) diameter flanged outlet
mounting system
- Front support
flywheel and flywheel housing
- Flywheel Housing: SAE No. 0, Flywheel: 18 inch, 136 teeth
- SAE standard rotation (CCW facing exciter end)
lube system
- Simplex Oil Filters, RH or LH service
- Deep sump oil pan
- RH or LH service oil filler locations
- RH or LH service dipstick
- Oil pump, gear driven
power take - offs
- Front Poly-V groove pulley (Quantity 1) for auxiliary drives
air inlet system
- Air cleaner (IMO II Only)
- Turbochargers, jacket water cooled
- Turbochargers inlet, 152 mm (6 in) OD straight connection
- Turbochargers inlet, 152 mm (6 in) OD straight connection
control system
- Programmable Low Idle (550 - 750 rpm)
- WOSR (Wide Operating Speed Range) available for - A & B Ratings
- Programmable High Idle Limit for WOSR Ratings
- Electronic diagnostics and fault logging
- Engine and transmission monitoring (speed, temperature, pressure)
- Electronic fuel/air ratio control
- Engine Protection Mode for extended ambient conditions
- 70-pin customer connector
- Throttle Input signal options
cooling system
- Separate Circuit After-Cooling (SCAC) for Heat Exchanged (HEX) & Keel cooled engines
- Jacket Water (JW) and SCAC Plate Type Heat Exchanger for HEX cooled engines
- SCAC pump, gear driven
- Jacket water pump, gear driven
- Seawater pump, bronze impeller, gear driven, for HEX cooled engines only
- Seawater Pump & JW Heat Exchanger Connection: 76.2 mm (3in) ID Standard
- Keel Connections: 76.2 mm (3in) ID Standard 4 Bolt ANSI Flange Connection
Optional Equipment
general
- Fumes Disposal
air inlet system
- Air Inlet Cleaner with Fumes Disposal
- Separate Circuit Aftercooler (SCAC)
- Air Inlet Adapter
charging system
- Battery Charger
- Charging Alternators 70 A or 105 A or 175 A
- Ammeter
cooling system
- Marine Gear / Transmission Oil Coolers
- Connections
- Jacker Water Heater 120 V or 240 V
exhaust system
- Dual Elbow
- Fleixble Fitting
- Dual Muffler
- Muffler Spark Arresting
- Flange
fuel system
- Water Separator
- Fuel Cooler
- Primary Fuel Filter
instrumentation
- Instrument Panels
- Exhaust Temperature Sensors
- Gauges
lube system
- Manual Sump Pump
- Duplex Oil Filters
- Shallow sump oIl pan
protection system
- Fuel and Oil Shielding
starting system
- Air Starting Motor
- Electric Starting Motors - Single 24 Volt
- Battery Sets - 24 Volt - Dry
- Dual Starting Motors (Electric and Air)
packing
- Engine Protective Cover
- Export Packing
- Storage Preservation
mounting system
- Front Support
- Adapter Kits
- Adapter Kits
- Isolator Mounts
power take - offs
- Rear Hydraulic Pump Drive
- Front Stub Shaft
control system
- Instrument Panels
- CaterpillarAlarm and Protection
- Fuel and Oil Shielding
