At a glance data:
Engine Output - SAE J1995:
2079hp
Bucket Payload:
44ton (US)
Operating Weight:
453ton (US)
Note:
Specifications above apply to the HRC Face Shovel configuration. Backhoe and Frontless configurations are also available for both HRC and LRC.
Overview

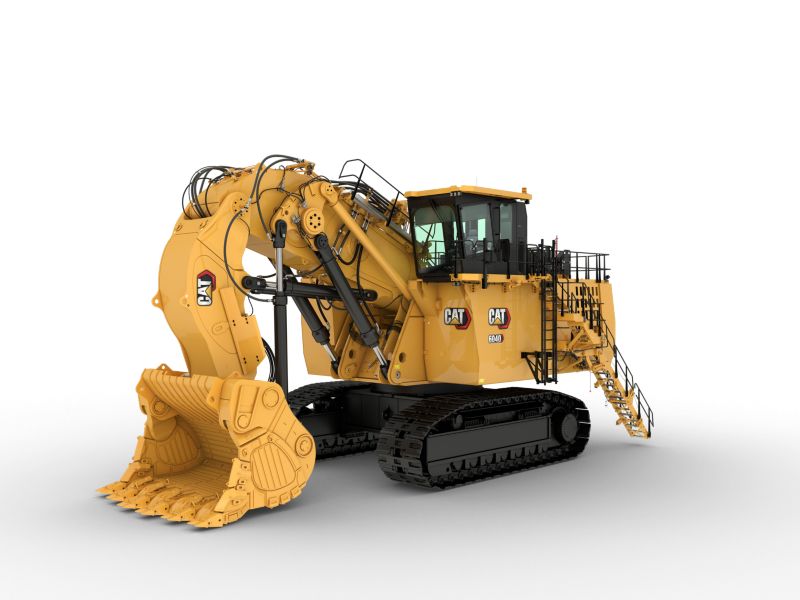

The Cat® 6040 is proven and trusted on sites all over the world, with more than 200 currently in operation. It’s known for high performance and high reliability — and now, it’s getting even better. The next generation 6040 is packed with new features, upgrades and enhancements designed to make it more productive, more efficient, safer, easier to operate, simpler to maintain and more.
It’s powered by two updated Cat C32B engines, delivering even greater performance and reliability without sacrificing fuel efficiency. Its heavy-duty undercarriage provides long life in tough conditions, reducing costs and keeping your machine hard at work.
A brand-new, state-of-the-art cab gives operators better control of the machine while keeping them safe and comfortable all shift long. Our patented three-seat design makes training and observing new operators easier than ever. And new safety features help everyone working in, on or around the 6040 get home safely every day.
Category:
Hydraulic Mining Shovels
Category:
Hydraulic Mining Shovels
Brand:
Cat
Brand:
Cat
General
Engine Output - SAE J1995:
2079hp
Bucket Payload:
44ton (US)
Operating Weight:
453ton (US)
Note:
Specifications above apply to the HRC Face Shovel configuration. Backhoe and Frontless configurations are also available for both HRC and LRC.
Engine
Engine Model:
2 x Cat C32B
Gross Power - SAE J1995:2014:
2079hp
Net Power - SAE J1349:2011:
1921hp
Note:
Power output relates to highly regulated engines. Lesser regulated engines are also available.
Diesel Engines
Number of Cylinders - Each Engine:
12
Bore:
5.71in
Stroke:
6.38in
Displacement:
1959in³
Aspiration:
Turbocharged and air-to-air aftercooled
Components (1):
High-capacity water separator
Components (2):
Two-stage fuel filter with series filtration
Components (3):
Cat Type 4 air filters
Components (4):
Microprocessed engine management
Fuel Tank Capacity:
2060gal (US)
Emissions:
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards
Electrical System - Diesel Drive
System Voltage:
24V
Batteries in Series/Parallel Installation:
6 x 210 Ah - 12 V each; 630 Ah - 24 V in total
Components (1):
6 maintenance-free batteries
Components (2):
Lockable battery and starter isolation switches
Components (4):
18 LED high-brightness working flood lights
Components (5):
11 LED service lights
Operating Weights
6040 FS - Standard Track Pads:
3.9ft
6040 FS - Operating Weight:
905,769lb
6040 FS - Ground Pressure:
24.5 N/cm2 (35.5 psi)
6040 - Standard Track Pads:
3.9ft
6040 - Operating Weight:
905,614lb
6040 - Ground Pressure:
24.5 N/cm2 (35.5 psi)
Note:
1600 mm track pads available as option
Hydraulic System with Pump Managing System
Hydraulic Tank Capacity - Diesel Version - Approximately:
958gal (US)
Total Volume of Hydraulic Oil - Diesel Version - Approximately:
1532.0gal (US)
Main Pumps - Diesel Version:
4 x Variable Displacement Piston Pumps
Main Pumps - Maximum Oil Flow - Diesel Version:
4 x 745 L/min (4 x 197 gal/min)
Maximum Pressure - Attachment:
4,351psi
Maximum Pressure - Travel:
5,076psi
Swing Pumps - Diesel Version:
2 x Reversible Variable Displacement Piston Double Pumps
Swing Pumps - Maximum Oil Flow - Diesel Version:
2 x 661 L/min (2 x 175 gal/min)
Maximum Pressure - Swing Pumps:
5080.0psi
Hydraulic Oil Cooling
Diameter - Fan:
60in
Oil Flow of Cooling Pumps - Diesel Version:
2 x 798 L/min (2 x 210 gal/min)
Features (1):
Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running
Features (2):
Fan speed is thermostatically controlled
Swing System
Swing Drive:
3 compact planetary transmissions with axial piston motors
Parking Brake:
Wet multiple disc brake, spring-loaded/hydraulically released
Maximum Swing Speed - Diesel Version:
4.8r/min
Swing Ring:
Triple-race roller bearing with sealed internal gearing
Features (1):
Dirt wiper
Features (2):
Closed-loop with speed control
Undercarriage
Travel Speed - 1st Stage - Maximum:
0.87mile/h
Travel Speed - 2nd Stage - Maximum:
1.43mile/h
Maximum Tractive Force:
397,237lb
Gradeability - Travel Drives - Maximum:
35.9%
Track Pads - Each Side:
42
Bottom Rollers - Each Side:
7
Support Rollers - Each Side:
2 plus a skid plate in between
Travel Drives - Each Side:
1 planetary transmission with 2 two-stage axial piston motors
Parking Brake:
Wet multiple disc brake, spring applied/hydraulically released
Components (1):
All running surfaces of sprockets, idlers, rollers and track links are hardened
Components (5):
Fully hydraulic self-adjusting track tensioning system with piston accumulator
Components (6):
Automatic hydraulic retarder valve
Hydraulic Oil Cooling
Diameter - Fan:
2 × 1524 mm (2 × 60 in)
Operator's Cab
Operator's Eye Level - Approximately:
23.16ft
Internal Dimensions of Cab - Length:
7.25ft
Internal Dimensions of Cab - Width:
5.41ft
Internal Dimensions of Cab - Height:
6.75ft
Components (1):
Safety switch for automatic motion shutdown
Components (2):
Pneumatically cushioned and multiadjustable comfort seat with heating and cooling, lumbar support, two-point safety belt, head and arm rests and afety switch for automatic motion shutdown
Components (3):
Roller blinds
Components (4):
Parallel intermittent wiper/washer
Components (5):
All-around safety glass
Components (6):
Operator Protective Guard (Top Guard)
Components (7):
Dual hydraulically driven HVAC system
Components (8):
Independently adjustable seat consoles with integrated joysticks
Components (9):
Additional fold-away auxiliary seat with two-point safety belt
Components (10):
External sun shields at side and rear windows
Components (11):
Emergency egress ladder
Components (12):
Powered 45 access stairway with EH controls and audible alarm plus visual beacon for enhanced safety
Automatic Lubrication System
Capacity - Grease Container:
190gal (US)
Type (1):
Dual-circuit system with hydraulically driven heavy-duty pumps and electronic time relay control adjust the pause/lube times
Type (3):
Grease filters (200 µm)
Type (4):
Connected to the lubrication system are: - pivot points of attachment, bucket and cylinders
Type (5):
Connected to the lubrication system are: - raceways of the swing roller bearing - two greasing pinions for the internal gearing of the swing ring
Attachments
All buckets (FS and BH) are equipped with a wear package consisting of: (2):
- Wing shrouds on side walls - Heel shrouds at bottom edges
Shovel attachment with unique TriPower kinematics ensuring the following main features: (1):
Automatic roll-back limiter to prevent material spillage
Shovel attachment with unique TriPower kinematics ensuring the following main features: (2):
Horizontal automatic constant-angle bucket guidance
Shovel attachment with unique TriPower kinematics ensuring the following main features: (3):
- Constant boom momentum throughout the whole lift arc - Crowd force assistance
Type (2):
Pressure-free lowering of boom (FS and BH) and stick (FS) by means of a float valve
Type (3):
Wear Package (as per bucket selection)
Type (4):
Catwalks with rails at boom (FS and BH)
Type (6):
Boom and stick thermally stress relieved after welding
Type (8):
Guards for shovel cylinders (FS)
Bucket
Bucket Capacity - Backhoe (heaped 1:1):
28.8yd³
Bucket Capacity - Face Shovel (heaped 2:1):
28.8yd³
Retractable Service Station
Installation:
Retractable service station installed underneath the engine module and easily accessible from ground
Operating Weights
6040 FS - Note:
Other track pads available on request
Standard Equipment
cat powertrain
- 2 x Cat C32B engines
- Aftertreatment System (used in Tier 4 Final/Stage V only): -Diesel Oxidation Catalyst (DOC) -Nox Reduction System (NRS) - Non-Diesel Exhaust Fluid (DEF) solution
- Air-to-Air After Cooling (ATAAC)
- Turbocharger
- Hydraulically driven radiator fan
- Electronically controlled fan speed
- Micro processed engine management
- Cat Type 4 air filters
- Two-stage fuel filter with series filtration
- High-capacity water seperator
- Starting aid -- automatic ether
- Exhaust manifold and turbo heat shields
- Dual 24 V electric starters per engine
- Automatic engine idle shut down
- Automatic fuel priming
hydraulics
- Hydraulic Optimization
- Operator Assist: Enhanced Motion Control
- Cat Hydraulic Hose assemblies
- Cat Pump managing system with: -Electronic load limit control -Flow on demand -Automatic zero flow regulation -Automatic engine rpm reduction -Reduced oil flow at high hydraulic oil or engine temperature
- Pressure cut-off for main pumps
- Cooling of pump transmission gear oil
- Closed loop swing circuit
- Cat quick disconnect pressure testing points
- Full-flow high-pressure filters (100 μm), main pumps
- Full-flow filters (10 μm), return circuit
- Full-flow filters (10 μm), cooling return circuit
- Pressure filters (6 μm), servo circuit
- Pressure filters (40 μm), closed swing circuit
- Transmission oil filters (40 μm)
- Boom float valve (FS and BH)
- Stick float valve (FS)
electrical system
- 6 Maintenance-free batteries
- Lockable battery isolator switch
- Lockable starter isolator switch
- 18 LED high-brightness working flood lights
- 11 LED service lights
- 2 acoustic travel alarms -forward and reverse (power module, oil cooler module)
- 1 air horn (cab riser walkway)
undercarriage
- HD tracks with cast double-grouser track pads
- 1200 mm (3 ft 11 in) wide track pads
- HD fixed axle carrier and load rollers
- HD fixed axle idlers
- Automatic hydraulic retarder valve
- Hinged travel motor covers
- Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas
- Fully hydraulic self-adjusting track tensioning system with piston accumulators
automatic lubrication system
- Rectangular grease container, 720 L (190 gal) capacity (fill via service station)
- Lubricated pinion in swing ring
- Grease filters (200 μm)
operator environment
- Dual hydraulically driven HVAC system
- In-floor window with removable grate
- Pneumatically cushioned and multiadjustable comfort seat with: -Heating and cooling -Lumbar support -Two-point safety belt -Head and arm rests -Safety switch for automatic motion shutdown
- Independently adjustable seat consoles with integrated joysticks
- Electronic-Hydraulic Servo Control
- Elevated full-size trainer seat with 2-point safety belt and laptop desk
- Additional fold-away auxiliary seat with 2-point safety belt
- Three cup holders
- FM/AM radio with USB and AUX input
- Parallel intermittent wiper/washer
- Roller blinds
- Monitoring system with 254 mm (10 in) color touchscreen
- 45° stairway from engine bay to operator cab
- Powered 45° access stairway with EH controls and audible alarm plus visual beacon for enhanced safety
- Heated mirror on Left Hand (LH) side
- Cat Vision 360 with 254 mm (10 in) HD color technology display
- Level indicators for length and crosswise inclination
- Document Storage
front attachment
- Internal service access in FS and BH boom
- Boom and stick thermally stress relieved after welding
- Catwalks with rails at boom (FS and BH)
- Wear Package (as per bucket selection)
cat technology
- Cat MineStar™ Solutions Ready
- Cat Payload
- Cat Vision 360
- Operator Assist: Enhanced Motion Control
service and maintenance
- Engine oil exchange interval -- 500 hours
- Hydraulic oil change interval -10,000 hours
- S·O·SSM Ports
- Retractable ground level service station with quick couplings for: -Diesel fuel -Engine coolant -left/right engines -Pump transmission gear oil -left/right engines -Engine oil -left/right engines -Engine oil extension tanks -Hydraulic oil -Grease -Swing transmission gear oil
- Cat battery charging connector
- Indicator lights
- Cat Electronic Technician service port
- Dirt wiper at swivel
safety and security
- Emergency stop switches: 2 in cab, 3 in engine module, 1 at ground level service station, 1 pull rope accessible from ground level
- Operator Protective Guard (Top Guard)
- All-round safety glass
- Emergency egress ladder
miscellaneous
- ISO or ANSI decals
Optional Equipment
general
- Engine oil interval extension kit, up to 1,000 hrs
superstructure
- Round container(s) for standard 200 L (53 gal) barrels (instead of 710 L (188 gal) grease container)
- Filling of round container(s) via service station
- Various cold-weather options
cab
- Dual (redundancy) heating ventilating and air conditioning system
- Cab heating
- Camera monitoring system (two cameras and additional color display)
undercarriage
- 1600 mm (5 ft 3 in) wide track pads
- Automatic lubrication of rollers by central lube system
- Undercarriage guard (belly plate)
- Additional optional equipment available on request.
miscellaneous
- Eurasian Conformity (EAC) Certification - T4 only
front attachment
- TriPower Face Shovel kinematics: - Horizontal automatic constant-angle bucket guidance –Vertical automatic constant-angle bucket guidance –Automatic roll-back limiter to prevent material spillage –Kinematic assistance to hydraulic forces –Constant boom momentum throughout whole lift arc –Crowd force assistance –Guards for shovel cylinders at FS stick
- Frontless base machine (no boom, no stick, no linkage or kinematics)
- Backhoe attachment
cat technology
- Cat Product Link Elite Dual Mode (Cellular + Satellite)
- Cat Product Link™ Elite (Cellular)
Similar Products
6020 Hydraulic Mining Shovel
Engine Output - SAE J1995:
2079hp
Bucket Payload:
44ton (US)
Operating Weight:
453ton (US)
Note:
Specifications above apply to the HRC Face Shovel configuration. Backhoe and Frontless configurations are also available for both HRC and LRC.
6030 Hydraulic Shovel
Engine Output - SAE J1995:
2079hp
Bucket Payload:
44ton (US)
Operating Weight:
453ton (US)
Note:
Specifications above apply to the HRC Face Shovel configuration. Backhoe and Frontless configurations are also available for both HRC and LRC.
6040 Hydraulic Mining Shovel
Engine Output - SAE J1995:
2079hp
Bucket Payload:
44ton (US)
Operating Weight:
453ton (US)
Note:
Specifications above apply to the HRC Face Shovel configuration. Backhoe and Frontless configurations are also available for both HRC and LRC.
