At a glance data:
Maximum Power:
173hp
Maximum Torque:
546lb-ft @ 1500 rpm
Rated Speed:
2200 rpm
Minimum Power:
173hp
Overview

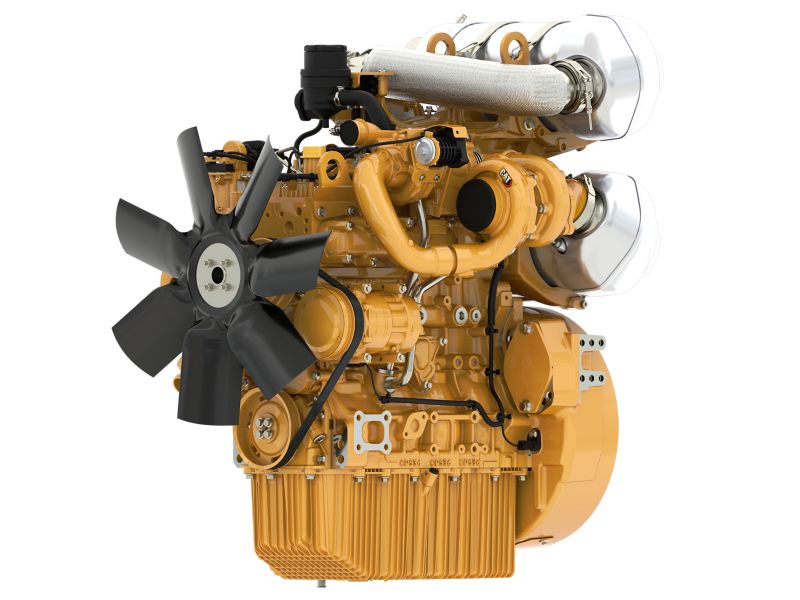

The Cat® C3.6 packs big engine capability into a compact package, delivering up to 129 kW (173 hp) of power and 740 Nm (546 lb ft) of torque. Engineered to meet global emissions standards, it integrates seamlessly into your machine. With extended service intervals, flexible fuel options, and the proven durability expected from Cat engines, the C3.6 is built to keep your machines running strong, day after day.
Category:
Industrial Diesel Engines
Category:
Industrial Diesel Engines
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Maximum Power:
173hp
Maximum Torque:
546lb-ft @ 1500 rpm
Rated Speed:
2200 rpm
Minimum Power:
173hp
Emission Standards
Emissions:
U.S. EPA Tier 4 Final, EU Stage V
General
Number of Cylinders:
4
Displacement:
221in³
Aspiration:
Twin turbocharged-aftercooled (TTA)
Bore:
3.9in
Stroke:
3.9in
Combustion System:
Direct injection
Compression Ratio:
17.0:1
Aftertreatment:
DOC+DPF+SCR
Rotation from Flywheel End:
Anti-clockwise
Cooling System:
Liquid
Engine Dimensions*
Length:
33.5in
Width:
26.8in
Height:
41.8in
Dry Weight:
882lb
Wet Weight:
937lb
Disclaimer
Note 1:
*Final dimensions dependent on selected options
General
Total Lubricating Oil Capacity:
4.2gal (US)
Standard Equipment
Optional Equipment
