6060 Electric Hydraulic Mining Shovel

new - Products
6060 Electric Hydraulic Mining Shovel

At a glance data:

Type:

2 × Squirrel cage induction motor

Output (nominal rated):

2 x 1000 kW

Voltage:

6.0 / 6.6 / 7.2 V

Rated Current IN:

6.0 kV / 235 A

Print 6060 Product Brochure Technical Specs 6060 Electric Walkaround 6060 Electric Poster Payload Management Guidelines Buckets Brochure

Overview

The Cat® 6060 Electric Hydraulic Mining Shovel combines everything you love about the 6060 with everything you demand from Caterpillar to deliver a shovel that uses efficient electric power to help you produce more — while keeping uptime high and operating costs low. Powered by dual electric motors, the 6060 Electric uses power more efficiently than diesel machines and produces zero direct carbon emissions.
With its rated backhoe payload of 65 tonnes (71) tons and face shovel payload of 61 tonnes (67 tons), the 6060 was among the first shovels in the mining industry tailor-made for mines using 240-ton (218-tonne) haul trucks, providing an efficient 4-pass solution to meet production capacity in these environments.

Category:

Hydraulic Mining Shovels

Brand:

Electric Motors

Type:

2 × Squirrel cage induction motor

Output (nominal rated):

2 x 1000 kW

Voltage:

6.0 / 6.6 / 7.2 V

Rated Current IN:

6.0 kV / 235 A

Frequency:

50 Hz / 60 Hz

Speed:

1,500 min-1/50Hz

Maximum Starting Current:

6.0 kV / 480 A

Low Voltage Electrical System

Control System Voltage:

24V

Batteries in Series Installation:

2 × 210 Ah – 12 V each

Cab Heating Voltage:

230V

Power Take Off:

1 × single phase (10 A, 230 V, 2.23 kW) 1 × three phase (4 A, 400 V, 2.8 kW)

Operating Weights

Note:

Operating weights include: base machine, front attachment, standard track pads, standard rock bucket, 100% fuel and lubricants.

Standard Track Pads – Face Shovel:

55in

Operating Weight – Face Shovel:

1,278,430lb

Ground Pressure – Face Shovel:

37.3psi

Payload – Face Shovel:

134,482lb

Standard Track Pads – Backhoe:

55in

Operating Weight – Backhoe:

1,278,430lb

Ground Pressure – Backhoe:

37.4psi

Payload – Backhoe:

143,300lb

Service Refill Capacities

Hydraulic Tank:

1,876gal (US)

Hydraulic System - Including Tank:

2,483gal (US)

Pump Transmission Gearbox including Cooling Circuit:

2 x 103 L (2 x 27.2 gal)

Pump Pre-Chambers at Pump Transmission Gearbox:

2 x 14 L (2 x 3.7 gal)

Swing Drive:

4 x 38 L (4 x 10.0 gal)

Travel Gearbox Planetary:

2 x 120 L (2 x 31.7 gal)

Travel Gearbox Spur Gear:

2 x 19 L (2 x 5.0 gal)

Travel Gearbox Brake Chambers:

4 x 0.5 L (2 x 0.13 gal)

Grease Tank:

710 L (188 gal)

Hydraulic System

Main Pumps:

8 variable flow axial piston pumps

Main Pumps - Maximum Total Oil Flow:

8 x 650 L/min (8 x 172 gal/min)

Main Pumps - Maximum Pressure - Attachment:

4,640psi

Main Pumps - Maximum Pressure - Travel:

5,220psi

Swing Pump:

4 reversible swash plate pumps

Swing Pump - Maximum Flow - Swing:

4 x 352 bar (4 x 93 psi)

Swing Pump - Maximum Pressure - Swing:

5,076psi

Hydraulic Oil Cooling

Oil Flow of Cooling Pumps:

4 x 488 L/min (4 x 129 gal/min)

Components:

4 cooling fans

Diameter - Fan:

46in

Features (2):

Fan speed and flow of oil to the coolers are thermostatically controlled

Features (1):

Cooling system fully independent of all main circuits, i.e. controlled cooling capacity is available whenever engine is running

Swing System

Swing Drive:

4 compact planetary transmissions with axial piston motors

Parking Brakes:

Wet multiple-disc brake, spring-loaded/hydraulically released

Maximum Swing Speed:

3.8r/min

Swing Ring:

Triple-race roller bearing with sealed internal gearing

Features (1):

Closed-loop swing circuit with torque control

Undercarriage

Travel Speed - 1st Stage - Maximum:

0.68mile/h

Travel Speed - 2nd Stage - Maximum:

0.99mile/h

Maximum Tractive Force:

661,160lb

Gradeability - Travel Drives - Maximum:

38.8%

Track Pads - Each Side:

Bottom Rollers - Each Side:

Support Rollers - Each Side:

2 plus a skid plate in between

Travel Drives - Each Side:

1 planetary transmission with 2 two-stage axial piston motors

Parking Brake:

Wet multiple disc brake, spring loaded/hydraulically released

Operator's Cab

Operator's Eye Level - Approximately:

24.91ft

Internal Dimensions of Cab - Length:

7.33ft

Internal Dimensions of Cab - Width:

5.33ft

Internal Dimensions of Cab - Height:

6.75ft

Components (5):

Operator Protective Guard (Top Guard) (ISO 10262:1998 Level II)

Working Ranges

Maximum Digging Height:

51.17ft

Maximum Digging Reach:

54.17ft

Maximum Digging Depth:

9.17ft

Backhoe Attachment (BH) - Working Range

Maximum Digging Height:

52.83ft

Maximum Digging Reach:

62.33ft

Maximum Digging Depth:

29.17ft

Digging Forces

Maximum Crowd Force:

494,410lb

Maximum Breakout Force:

388,780lb

Backhoe Attachment (BH) - Digging Forces

Stick Digging Force - ISO:

295,740lb

Bucket Digging Force - ISO:

274,840lb

Standard Bucket Capacity

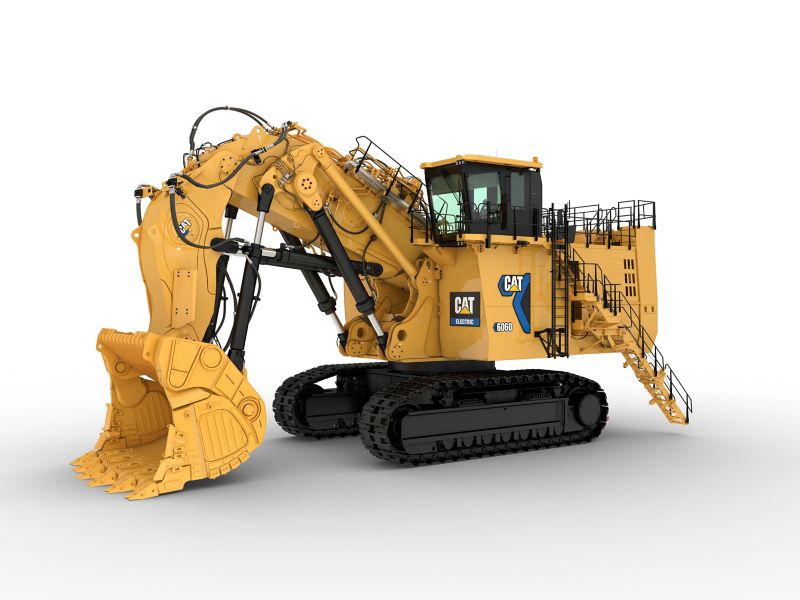

Face Shovel (heaped 2:1):

44.5yd³

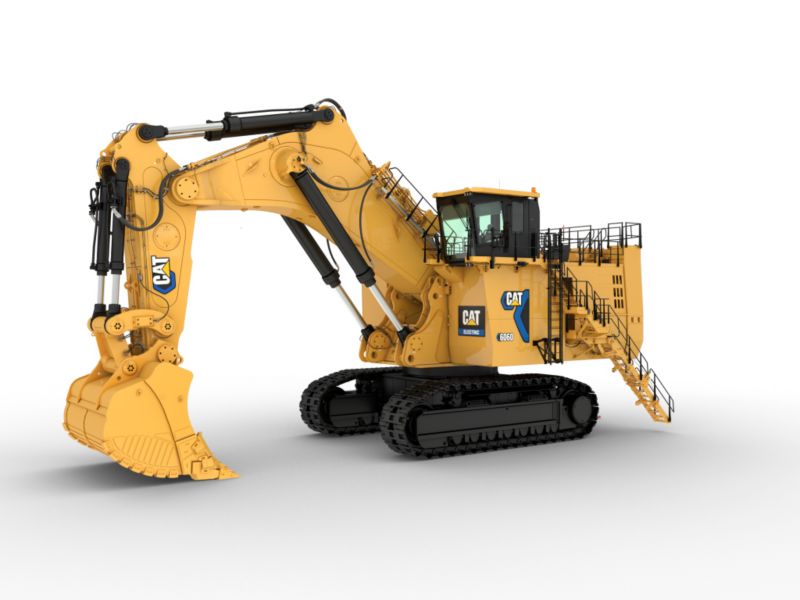

Backhoe (heaped 1:1):

44.5yd³

Standard Equipment

high voltage electrical system

Pressurized high voltage switch cabinet: – Load break switch – Main, motor, and transformer fuses – Voltage and current transformers – Vacuum contactors for motor control – Ground fault detection – Auxiliary transformer
Power factor correction

hydraulics

Hydraulic Optimization
Cat® Hydraulic Hose Assemblies
Cat pump managing system with: – Electronic load limit control – Flow on demand – Automatic zero flow regulation – Automatic oil flow reduction – Reduced oil flow at high hydraulic oil temperature
Pressure cut-off for main pumps
Cooling of pump transmission gear oil
Closed loop swing circuit
Pressure testing points
Full-flow high-pressure filters (100 μm), main pumps
High pressure filters (200 μm), closed swing circuit
Full-flow filters (10 μm), return circuit
Pressure filters swing charge circuit (40 μm)
Pressure filters pilot circuit (6 μm)
Transmission oil filters (40 μm)
Boom float valve (FS and BH)
Stick float valve (FS only)

low voltage electrical system

2 batteries
Lockable 24 V system isolator switch
Low voltage switch cabinet: – Motor Protection Relay (MPR) – 24 V and 400 V power supply – Active power converter – Phase sequence indication – Circuit breakers
13 LED high-brightness working flood lights
19 LED service lights
2 acoustic travel alarms – forward and reverse (power module, oil cooler module)
2 electric horns (1 cab module, 1 oil cooler module)

undercarriage

HD tracks with cast double-grouser track pads
1400 mm (4 ft 7 in) wide track pads
1600 mm (5 ft 3 in) wide track pads
HD fixed axle carrier and load rollers
HD fixed axle idlers
Automatic hydraulic retarder valve
Hinged travel motor covers
Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas
Fully hydraulic self-adjusting track tensioning system with piston accumulators
Slip ring in undercarriage
Cable guide with junction box at undercarriage

automatic lubrication system

Rectangular grease container (fill via service arm)
Lubricated pinion in swing ring
Grease filters (200 μm)

operator environment

Dual hydraulically driven HVAC system
In-floor window with removable grate
Pneumatically cushioned and multiadjustable comfort seat with: – Heating and cooling – Lumbar support – 2-point safety belt – Head and arm rests – Safety switch for automatic motion shutdown
Independently adjustable seat consoles with integrated joysticks
Electronic-Hydraulic Servo Control
Elevated full-size trainer seat with 2-point safety belt and laptop desk
Additional fold-away auxiliary seat with 2-point safety belt
Three cup holders
USB Charging
FM/AM radio with USB and AUX input
Parallel intermittent wiper/washer
Roller blinds
Monitoring system with 254 mm (10 in) color touchscreen
45° stairway from engine bay to operator cab
Powered 45° access stairway
Heated mirror on LH side
Cat Vision 360 with 254 mm (10 in) HD color technology display
Level indicators for length and crosswise inclination
Document storage

front attachment

Service access holes from both sides in boom and stick (FS and BH)
Boom and stick thermally stress relieved after welding
Catwalks with rails at boom (FS and BH)
Wear Package (as per bucket selection)

service and maintenance

Hydraulic oil exchange interval – 10,000 hours
S·O·SSM ports
Retractable ground-level service station with quick couplings for: – Pump transmission gear oil – left/right engines – Hydraulic oil – Grease – Swing transmission gear oil
Cat battery charging connector
Dirt wiper at swivel
Cat Electronic Technician service port
Indicator lights

cat technology

Cat Payload
Cat Vision 360
Operator Assist: Enhanced Motion Control
Cat Product Link™ Elite
Cat Minestar™ Solutions Ready

safety and security

Emergency stop switches: 2 in cab, 5 in power module, 1 at ground-level service station, 1 pull rope accessible from ground level
Operator Protective Guard (Top Guard)
All-round safety glass
Emergency egress ladder
Operator presence switch

miscellaneous

ISO or ANSI decals

Optional Equipment

high voltage electrical system

Electric Motor (6.6 kV – 50 Hz)
Electric Motor (6.0 kV – 50 Hz)
Electric Motor (7.2 kV – 60 Hz)

front attachment

TriPower Face Shovel kinematics: – Horizontal automatic constant-angle bucket guidance – Vertical automatic constant-angle bucket guidance – Automatic roll-back limiter to prevent material spillage – Kinematic assistance to hydraulic forces – Constant boom momentum throughout the whole lift arc – Crowd force assistance – Guards for shovel cylinders at FS stick
Backhoe Attachment

cold weather options

Cold Weather Package: – Hydraulic oil heater with thermostat – Hydraulic oil cooler bypass valves – Auxiliary preheating system for cab – Recommended for temperatures below –10° C (14° F)

cat technology

Cat Product Link Elite Dual Mode (Cellular and Satellite)
