At a glance data:
Net Power - ISO 9249/SAE J1349:
130hp
Operating Weight - Typically Equipped:
35067lb
Blade Width:
12ft
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.288 metric tonnes (2.521 tons).
Overview

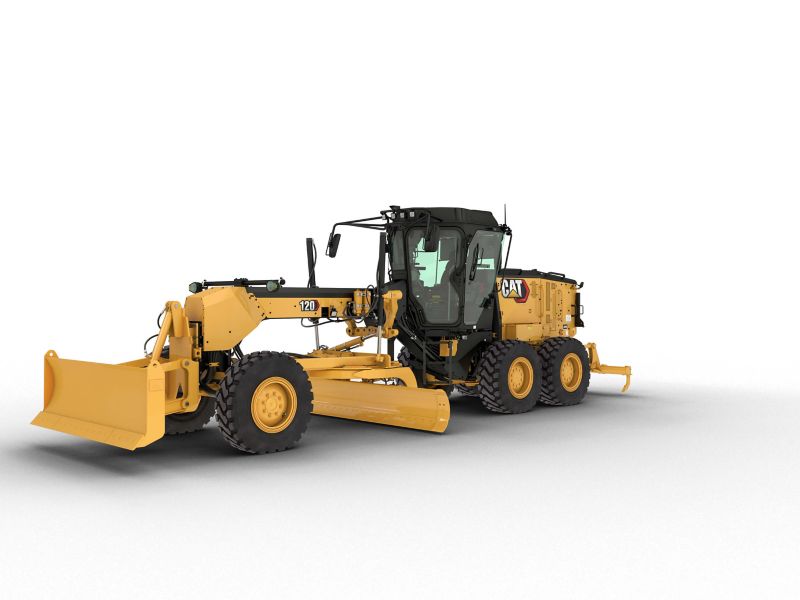

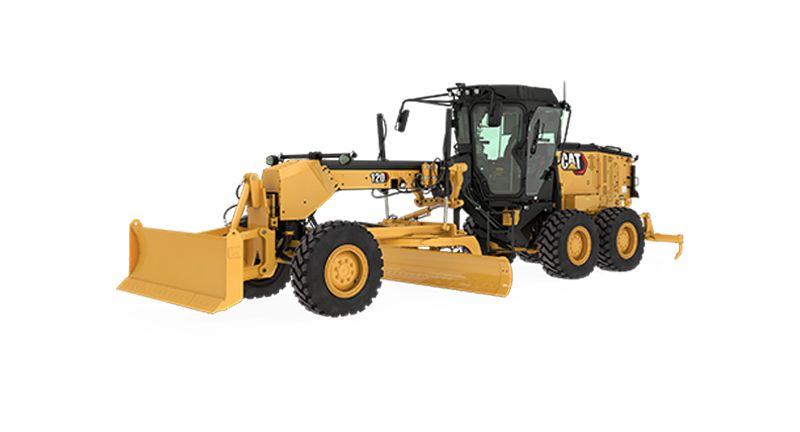

The Cat 120 Motor Grader offers the options of joystick or steering wheel with lever controls with all-wheel drive (AWD) option. Cab and comfort options help improve performance. Factory integrated technology options ensure grade for any project.
Category:
Motor Graders
Category:
Motor Graders
Brand:
Cat
Brand:
Cat
Engine
Net Power - ISO 9249/SAE J1349:
130hp
Weights
Operating Weight - Typically Equipped:
35067lb
Moldboard
Blade Width:
12ft
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.288 metric tonnes (2.521 tons).
Blade Range
Maximum Depth of Cut:
30.5in
Engine
Standard Capability:
122°F
Blade Range
Moldboard Side Shift Left:
20.1in
Service Refill Capacities
Engine Crankcase:
4.8gal (US)
Diesel Exhaust Fluid Tank (Tier 4 Only):
5gal (US)
Dimensions
Length of Machine*:
387in
Engine
Number of Cylinders:
6
Dimensions
Width All Wheel Drive (AWD):
2551mm
Blade Range
Circle Center Shift Left:
26in
Blade Tip Range Backward:
5
Dimensions
Width:
102in
Machine Weight
Joystick All-Wheel Drive (AWD) Weight* Tier 4:
36,846lb
Service Refill Capacities
Hydraulic System:
25.6gal (US)
Dimensions
Note:
*Typically equipped with push block and ripper.
Blade Range
Maximum Lift Above Ground:
16.1in
Engine
Derating Altitude (AWD):
5499ft
Moldboard
End Bit:
6in
Engine
Torque Rise - ISO 9294:
42%
Moldboard
Cutting Edge:
6in
Blade Range
Circle Center Shift Right:
26in
Engine
Note (2):
Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Displacement:
427.8in³
Derating Altitude:
9842.5ft
Maximum Torque - ISO 9249:
606lb/ft
Service Refill Capacities
Fuel Tank:
65gal (US)
Engine
Net Power Range (Tier 3):
130hp
Note (3):
Power as declared per ISO 14396
Machine Weight
Lever/Steering Wheel Weight* Tier 4:
35,067lb
Moldboard
Blade Height:
24in
Engine
Bore:
4.1in
Service Refill Capacities
Transmission and Differential:
9gal (US)
Moldboard
Throat Clearance:
4.1in
Dimensions
Maximum Height:
136.4in
Machine Weight
Lever/Steering Wheel All-Wheel drive (AWD) Weight* Tier 4:
36,731lb
Note (1):
*Typically equipped includes 4267 mm (14 ft) plus blade, tires, push plate, ripper, bottom guard, operator, and full fluids.
Engine
Engine RPM:
2,000
Service Refill Capacities
Circle Drive:
1.8gal (US)
Engine
Maximum Torque - AWD On:
611lb/ft
Note (1):
Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture."
Engine Model:
Cat 7.1
Blade Range
Blade Tip Range Forward:
40
Service Refill Capacities
Cooling System:
14gal (US)
Engine
Stroke:
5.3in
Blade Range
Maximum Shoulder Reach Right:
76in
Engine
Emissions:
U.S. EPA Tier 4 Final/EU Stage V - U.S. EPA Tier 3/EU Stage IIIA
Blade Range
Moldboard Side Shift Right:
26.1in
Machine Weight
Joystick Weight* Tier 4:
35,358lb
Blade Range
Maximum Shoulder Reach Left:
69.4in
Dimensions
Basic Blade Width:
12ft
Moldboard
Arc Radius:
16.3in
Engine
All-Wheel Drive Net Power Range (Tier 4):
174kW
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
cab
- Vinyl Seat
- ROPS, Standard Sound Suppression
- Heating/Cooling Cab System
- Base Cab
- 254 mm (10 in) Hybrid Information Display
- Halogen Lighting
cat technology
- Product Link
engine
- Cat C7.1
- Eco mode
- Hydraulic Demand Fan
drawbar circle moldboard
- Standard
- Circle Drive Slip Clutch
safety
- Parking brake
- Signaling/warning horn
- Rearview mirror
- Hydraulic brakes
- Secondary steering system
- Side view mirrors
- Walkways and Grab Rails
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
cab
- Cloth or Leather Seat
- Steering Wheel/Lever Controls
- Joystick Controls
- Rear Wiper
- Comfort Plus
- Premium Plus
- Seatbelt Indicator
- Heated/Cooled Seat
- Bluetooth/Auxiliary Radio
- LED Lighting
- Rear Window Screen
cat technology
- Cat Grade with Digital Blade Slope Meter
- Cat Grade with Cross Slope Indicate
- Cat Grade with Cross Slope
- Cat Grade Attachment Ready Option (ARO)
- Stable Blade
- Remote Services
engine
- All-Wheel Drive (AWD)
drawbar circle moldboard
- Top Adjust
- Circle Saver
safety
- Rearview camera
versatility
- Counterweight
- Push Block
- Ripper
- Scarifier
- Front Lift Group
- Front Blade
- Front Blade
