735 Articulated Truck
- new - Products
- 735 Articulated Truck
At a glance data:
Engine Model:
Cat® C13
Bore:
5.1in
Rated Payload:
35.3ton (US)
Heaped (SAE 2:1):
26.2yd³
Overview

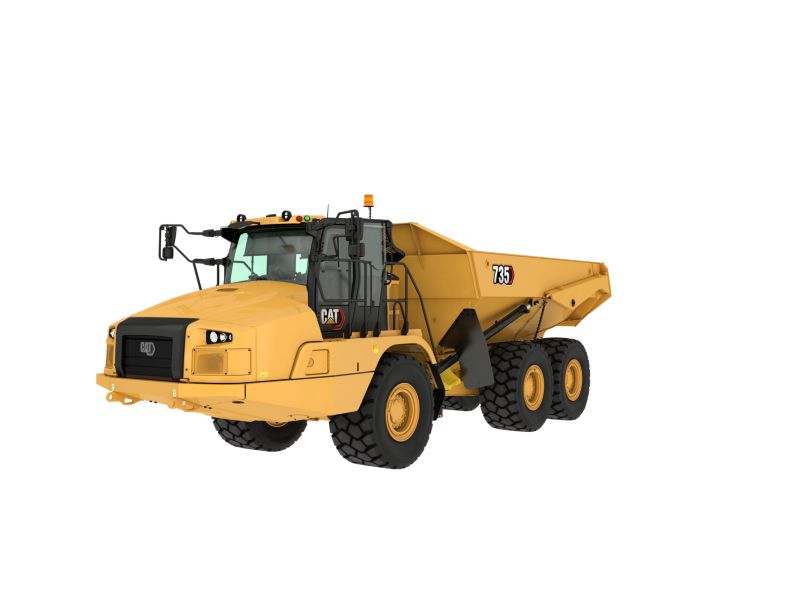

The Cat 735 with a 20 m³ (26.2 yd³)/32 tonnes (35.3 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation. Updating the successful 735C to include the new cab design makes the 735 a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Hoisting Control create operator comfort, making a productive machine all day long while retaining all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).
Category:
Three Axle Articulated Trucks
Category:
Three Axle Articulated Trucks
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Model:
Cat® C13
Gross Power (SAE J1995):
434hp
Net Power (SAE J1349):
424hp
Engine Power (ISO 14396):
429hp
Bore:
5.1in
Stroke:
6.2in
Displacement:
736in³
Note (1):
Advertised power is tested at 1,800 rpm.
Note (2):
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3):
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4):
Net power when the fan is at maximum speed is 316 kW (424 hp) per the SAE reference conditions.
Note (5):
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (6):
Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
No Engine De-rating Below:
12500ft
Peak Engine Torque Gross (SAE J1995):
1614lbf·ft
Peak Engine Torque Net (SAE J1349):
1597lbf·ft
Peak Engine Torque Speed:
1200r/min
Weights
Rated Payload:
35.3ton (US)
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).
Body Capacities
Heaped (SAE 2:1):
26.2yd³
Struck:
20.3yd³
Tailgate Heaped SAE 2:1:
27.9yd³
Tailgate Struck:
21.3yd³
Transmission
Forward - 1:
5mile/h
Forward - 2:
9mile/h
Forward - 3:
14mile/h
Forward - 4:
22mile/h
Forward - 5:
30mile/h
Forward - 6:
35mile/h
Reverse - 1:
6mile/h
Sound Levels
Interior Cab:
72dB(A)
Note (1):
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2):
Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Operating Weights
Front Axle - Empty:
34128lb
Center Axle - Empty:
11001lb
Rear Axle - Empty:
10516lb
Total - Empty:
55645lb
Front Axle - Rated Load:
9039lb
Center Axle - Rated Load:
30754lb
Rear Axle - Rated Load:
30754lb
Total - Rated Load:
70548lb
Front Axle - Loaded:
43166lb
Center Axle - Loaded:
41756lb
Rear Axle - Loaded:
41270lb
Total - Loaded:
126192lb
Body Plate
Type:
High strength Brinell HB450 wear resistant steel
Body Plate Thickness
Front Plate:
0.28in
Base Plate:
0.51in
Side Plates:
0.43in
Service Refill Capacities
Fuel Tank:
108.8gal (US)
DEF Tank:
5.3gal (US)
Cooling System:
21.9gal (US)
Hydraulic System:
29.1gal (US)
Engine Crankcase:
10gal (US)
Transmission:
12.3gal (US)
Final Drives/Differential:
33gal (US)
Output Transfer Gear Box:
5.5gal (US)
Body Hoist
Raise Time:
12s
Lower Time:
11s
Standards
Brakes:
ISO 3450 – 2011
Cab - FOPS:
ISO 3449 Level II – 2005
Cab - ROPS:
ISO 3471 – 2008
Steering:
ISO 5010 – 2019
Turning Circle
Turning Dimensions - Steer Angle - Left/Right:
45°
Turning Dimensions - SAE Turning Radius:
294in
Turning Dimensions - Clearance Radius:
318in
Turning Dimensions - Inside Radius:
149in
Turning Dimensions - Aisle Width:
212in
Note:
Dimensions are for machines equipped with 750/65 R25 tires.
Steering
Lock to Lock:
4.75 seconds @ 60 rpm
Optimal Loader/Truck Pass Matching
Hydraulic Excavators: 349/352 - Passes:
4-5
Hydraulic Excavators: 336 - Passes:
5-6
Wheel Loaders: 972/972 XE - Passes:
3-4
Wheel Loaders: 966/966 XE - Passes:
4
Wheel Loader: 962 - Passes:
4-5
Wheel Loader: 950 - Passes:
5
Note:
An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Tilt and telescopic steering wheel
- Adjustable air vents
- Retractable belt: Operator seat and second seat
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Air conditioning
- Mirrors: exterior
- Combined gear selection and hoist control lever
- Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Sun visor
- Windshield wiper and washer, two speed, intermittent (front)
- Windows opening side, tinted
- Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Touchscreen display incorporating the rearview camera video feed
- Secondary steering – electro hydraulic
- Heater and defroster with four-speed fan
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp
technology
- Cat® Detect with Stability Assist
- Product Link Cellular PLE643
electrical and lighting
- Remote starting receptacle (cables not included)
- Horn
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Electrical system: 24-volt, 5A 24- to 12-volt converter
- Batteries (two) maintenance free
powertrain
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Cat C13 engine
- Three axle, six-wheel drive
- Retarder: engine compression brake and hydraulic
- Dual circuit oil immersed, enclosed brakes – all wheels
- Auto shift six-speed forward and single-speed reverse transmission
safety
- Rearview camera
- Rollover protective structure/Falling objects protective structure (ROPS/FOPS) cab
- Reverse alarm
guards
- Radiator
- Front dump body spill guard, integral part of fabricated body
- Crankcase
- Rear window
other standard equipment
- Tires, six 750/65 R25
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- S·O·S sampling valves
- Vandalism protection: lockable caps
- Sound suppression (standard in some countries*)
*EFTA countries are EU countries plus Iceland, Norway, Lichtenstein, Switzerland, Türkiye and UK.
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Mirrors, heated motorized
- Four-point seat belt
- Windshield wiper and washer, two speed (rear)
- Heated/cooled seat
- Radio, Bluetooth® stereo system
- Window blinds
technology
- Product Link Dual PLE683
- Cat Payload
- Machine Security System (MSS)
electrical and lighting
- Engine block heater
- Ether start
- Flashing LED beacon
- Cold weather start attachment
- Infrared glass – high ambient cab
- Roof mounted LED work lights
optional equipment
- Scissor tailgate
- Bare chassis (no body) standard wheel base
- Fuel additive – anti-waxing
- Body liners
- Bare chassis (no body) long wheel base
- Auto lube installation for automatic greasing of bearings
- Fast fuel fill
- Exhaust heated body
- Cold weather coolant –51° C (–60° F)
- Wheel chocks
