At a glance data:
Net Power - EEC 80/1269:
250hp
Operating Weight - Typically Equipped:
44613lb
Blade Width:
12ft
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
Overview

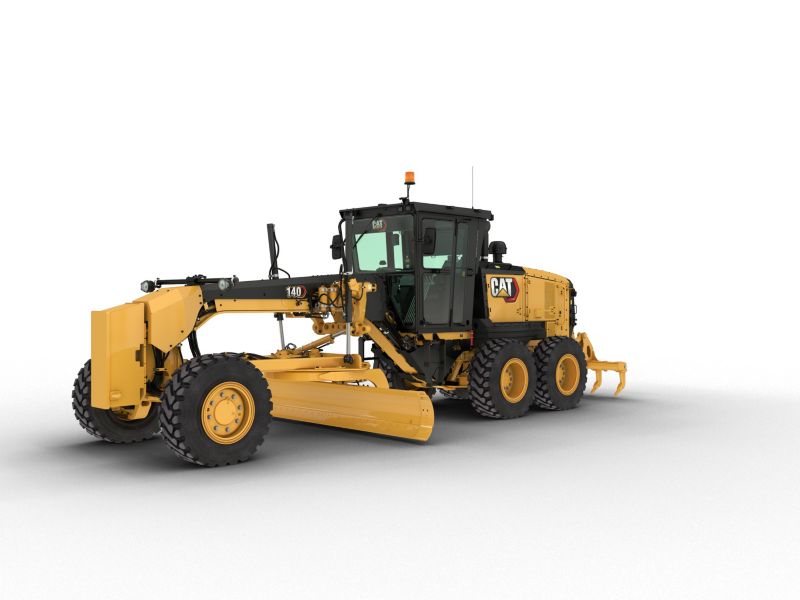

The Cat® 140 Motor Grader combines technology and lever controls for high performance. Integrated technology, such as Cat Grade with Cross Slope and Stable Blade options, ensures optimal grade for your project. The new cab offers increased comfort and ergonomically designed, adjustable control console. Reduce up to 10 percent fuel consumption by using Eco Mode and 20 percent in fluid and filter maintenance costs with the new filtration technology.
Category:
Motor Graders
Category:
Motor Graders
Brand:
Cat
Brand:
Cat
Engine
Net Power - EEC 80/1269:
250hp
Weights
Operating Weight - Typically Equipped:
44613lb
Moldboard
Blade Width:
12ft
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
Moldboard
Cutting Edge:
6in
Engine
Net Power - ISO 9249/SAE J1349:
250hp
Dimensions
Basic Blade Width:
140in
Moldboard
Arc Radius:
16.3in
Service Refill
Hydraulic System:
14.5gal (US)
Engine
Standard Capability:
109°F
Machine Weight
Note:
*Typically equipped with push block and ripper.
Engine
Engine RPM:
2,000
Dimensions
Length of Machine*:
397.6in
Service Refill
Engine Crankcase:
7.9gal (US)
Circle Drive:
1.8gal (US)
Dimensions
Width:
97.6in
Service Refill
Fuel Tank:
100gal (US)
Engine
Engine Model:
Cat C9.3
Moldboard
Throat Clearance:
6.5in
Blade Range
Maximum Lift Above Ground:
18.9in
Engine
Bore:
4.5in
Dimensions
Note:
*Typically equipped with push block and ripper.
Moldboard
End Bit:
6in
Engine
Emissions:
U.S. EPA Tier 4 Final/EU Stage V
Displacement:
567.5in³
Service Refill
Front Wheel Spindle Bearing - Each:
0.13gal (US)
Machine Weight
All-Wheel Drive (AWD) Weight:
44,613lb
Engine
Stroke:
5.9in
Number of Cylinders:
6
Blade Range
Maximum Depth of Cut:
28.9in
Dimensions
Maximum Height:
132in
Engine
Torque Rise - ISO 9294:
44%
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
cab
- Vinyl Seat
- Information Display Screen
- Base cab
- Entertainment Radio Ready
- HVAC
- ROPS, Standard Sound Suppression
- Halogen Lighting
cat technology
- Product Link
engine
- C9.3
- ECO Mode
drawbar circle moldboard
- Standard Drawbar Circle Moldboard
- Circle Drive Slip Clutch
safety
- Rearview Mirror
- Hydraulic Brakes
- Secondary Steering System
- Signaling/Warning Horn
- Side View Mirrors
versatility
- Front Bolster
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
cab
- Air Suspension Adjustable Seat
- Canopy
- Cab Plus
- Rear Wiper
- Communication Radio Mounting
- Rear Window Screen
- Defrost Fans
- LED Lighting
cat technology
- Cat Grade with Cross Slope
- Cat Grade Attachment Ready Option (ARO)
- Cat Grade with Cross Slope Indicate
- Digital Blade Slope Meter
- Stable Blade
- Remote Services
engine
- Reversing Fan
- All-Wheel Drive (AWD)
drawbar circle moldboard
- Top Adjust Drawbar Circle Moldboard
- Circle Saver
safety
- Rearview Camera
versatility
- Counterweight
- Push Block
- Front Lift Group
- Mast Type - Snow Wing
- Mast-Less - Snow Wing
- Ripper/Scarifier
- Auxiliary Hydraulic Lines
- Moldboard Extension
- Front Blade
