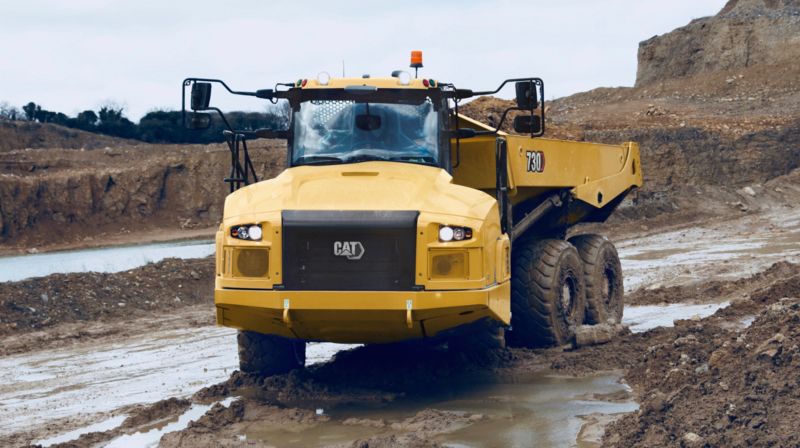

730 Articulated Truck
- new - Products
- 730 Articulated Truck
At a glance data:
Engine Model:
Cat® C13
Bore:
5.1in
Rated Payload:
31ton (US)
Heaped (SAE 2:1):
23yd³
Overview
The Cat 730 with a 17.5 m³ (23 yd³)/28 tonnes (31 tons) capacity, offers demonstrated reliability and durability, high performance and productivity and a new world-class cab to improve operator comfort and ease of operation. Updating the successful 730C2 to include the new cab design makes the 730 a more attractive proposition for our customers. Class leading levels of performance and new features such as Advanced Automatic Traction Control (AATC) and Assisted Hoisting Control create operator comfort, making a productive machine all day long while retaining all axle enclosed wet brakes and Advanced Productivity Electronic Control Strategy (APECS).
Category:
Three Axle Articulated Trucks
Category:
Three Axle Articulated Trucks
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Engine Model:
Cat® C13
Gross Power (SAE J1995):
375hp
Net Power (SAE J1349):
367hp
Engine Power (ISO 14396):
370hp
Bore:
5.1in
Stroke:
6.2in
Displacement:
762.8in³
Note (1):
Advertised power is tested at 1,800 rpm.
Note (2):
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (3):
The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Note (4):
Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions.
Note (5):
Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (6):
Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
No Engine De-rating Below:
12500ft
Peak Engine Torque Gross (SAE J1995):
1579lbf·ft
Peak Engine Torque Net (SAE J1349):
1554lbf·ft
Peak Engine Torque Speed:
1200r/min
Weights
Rated Payload:
31ton (US)
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant, which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).
Body Capacities
Heaped (SAE 2:1):
23yd³
Struck:
17.4yd³
Tailgate Heaped SAE 2:1:
24.6yd³
Tailgate Struck:
18.2yd³
Transmission
Forward - 1:
5mile/h
Forward - 2:
9mile/h
Forward - 3:
14mile/h
Forward - 4:
21mile/h
Forward - 5:
29mile/h
Forward - 6:
34mile/h
Reverse - 1:
6mile/h
Sound Levels
Interior Cab:
72dB(A)
Note (1):
The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fan’s speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Note (2):
Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments.
Operating Weights
Front Axle - Empty:
33069lb
Center Axle - Empty:
10053lb
Rear Axle - Empty:
9568lb
Total - Empty:
52690lb
Front Axle - Rated Load:
7231lb
Center Axle - Rated Load:
27249lb
Rear Axle - Rated Load:
27249lb
Total - Rated Load:
61729lb
Front Axle - Loaded:
40300lb
Center Axle - Loaded:
37302lb
Rear Axle - Loaded:
36817lb
Total - Loaded:
114420lb
Body Plate
Type:
High strength Brinell HB450 wear resistant steel
Body Plate Thickness
Front Plate:
0.28in
Base Plate:
0.51in
Side Plates:
0.43in
Service Refill Capacities
Fuel Tank:
108.8gal (US)
DEF Tank:
5.3gal (US)
Cooling System:
21.9gal (US)
Hydraulic System:
29.1gal (US)
Engine Crankcase:
10gal (US)
Transmission:
12.4gal (US)
Final Drives/Differential:
33gal (US)
Output Transfer Gear Box:
6.3gal (US)
Body Hoist
Raise Time:
12s
Lower Time:
8s
Standards
Brakes:
ISO 3450:2011
Cab - FOPS:
ISO 3449:2005 Level II
Cab - ROPS:
ISO 3471:2008
Steering:
ISO 5010:2019
Turning Circle
Turning Dimensions - Steer Angle - Left/Right:
45°
Turning Dimensions - SAE Turning Radius:
294in
Turning Dimensions - Clearance Radius:
318in
Turning Dimensions - Inside Radius:
153in
Turning Dimensions - Aisle Width:
210in
Note:
Dimensions are for machines equipped with 23.5R25 tires.
Steering
Lock to Lock:
4.75 seconds @ 60 rpm
Optimal Loader/Truck Pass Matching
Hydraulic Excavators: 349/352 - Passes:
4-5
Hydraulic Excavators: 336 - Passes:
5-6
Wheel Loaders: 972/972 XE - Passes:
3-4
Wheel Loaders: 966/966 XE - Passes:
4
Wheel Loader: 962 - Passes:
4-5
Wheel Loader: 950 - Passes:
5
Note:
An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 349/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Tilt and telescopic steering wheel
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Combined gear selection and hoist control lever
- Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Secondary steering – electro hydraulic
- Heater and defroster with four-speed fan
- Retractable belt: Operator seat and second seat
- Windshield wiper and washer, two speed, intermittent (front)
- Mirrors: exterior
- Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Adjustable air vents
- Windows opening both sides, tinted
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Sun visor
- Touchscreen display incorporating the rearview camera video feed
- Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Air conditioning
technology
- Cat® Detect with Stability Assist
- Product Link Cellular PLE643
electrical and lighting
- Electrical system: 24-volt, 10A 24- to 12-volt converter
- Main disconnect switch
- Batteries (two) maintenance free
- Remote starting receptacle (cables not included)
- Horn
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators
powertrain
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Auto shift six-speed forward and single-speed reverse transmission
- Dual circuit oil immersed, enclosed brakes – all wheels
- Retarder: engine compression brake
- Cat C13 engine
- Three axle, six-wheel drive
- CX31 transmission
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
safety
- Rearview camera
- Rollover protective structure/falling objects protective structure (ROPS/FOPS) cab
- Reverse alarm
guards
- Radiator
- Rear window
- Front dump body spill guard, integral part of fabricated body
- Crankcase
other standard equipment
- Sound suppression (standard in EFTA*)
*EFTA countries are EU plus Iceland, Norway, Lichtenstein, and Switzerland. - Tires, six 23.5R25, radial
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- S·O·S sampling valves
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Infrared glass – high ambient cab
- Mirrors, heated motorized
- Radio, Bluetooth® stereo system
- Seat, heated/cooled
- Operator, seat belt, four-point
- Window blinds
- Windshield wiper and washer, two speed (rear)
technology
- Cat Payload
- Machine Security System (MSS)
- Product Link Dual PLE683
electrical and lighting
- Cold weather start attachment
- Engine block heater
- Ether start
- Flashing LED beacon
- Roof mounted LED work lights
optional equipment
- Auto lube installation for automatic greasing of bearings
- Bare chassis (no body) standard wheel base
- Bare chassis (no body) long wheel base
- Body liners
- Cold weather coolant –51° C (–60° F)
- Exhaust heated body
- Fuel additive – anti-waxing
- Wheel chocks
- Fast fuel fill
- Tires, six 750/65R25, radial
- Scissor tailgate
