At a glance data:
Continuous Rating:
600 kW @1.0pf
Fuel Type:
Natural Gas, Biogas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency:
43.3% / 42.4%
Maximum Standby Rating:
600 kW
Overview

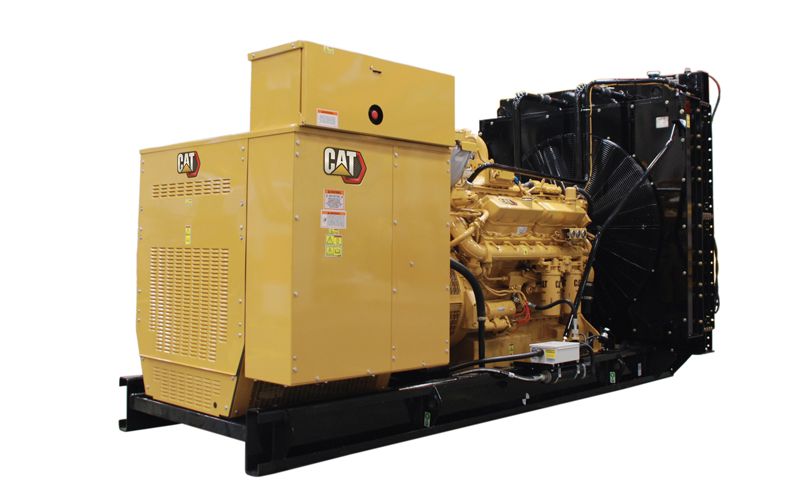

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.<br>
<br>
Highly efficient with low operating and installation costs and lubricant consumption, the Cat CG132B gas generator set is available with outputs from 400kW to 800kW and comes with the Total Plant and Energy Management (TPEM) system.
Category:
Gas Generator Sets
Category:
Gas Generator Sets
Brand:
Caterpillar
Brand:
Caterpillar
Generator Set Specifications
Continuous Rating:
600 kW @1.0pf
Fuel Type:
Natural Gas, Biogas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency:
43.3% / 42.4%
Maximum Standby Rating:
600 kW
Frequency:
50 / 60 Hz
RPM:
1500 / 1800 rpm
Engine Specifications
Engine Model:
CG132
Displacement:
1604.9in³
Aspiration:
TA
Bore:
5.2in
Stroke:
6.3in
Generator Set Dimensions
Length:
151in
Width:
70in
Height:
85in
Dry Weight - Genset:
15432lb
Standard Equipment
air inlet
- One-element single-stage air cleaner with enclosure and sevice indicator
- Turbocharger with a water-cooled bearing case for all cylinder
control panels
- TPEM (Total Plant & Energy Management System)
cooling
- ANSI/DN customer flange connections for JW inlet and outlet
- flange connections for JW inlet and outlet
- Jacket water and SCAC thermostats
- Electrical jacket water and aftercooler coolant pump
exhaust
- Exhaust waste gate for the CG132B-16
- Closed crankcase ventilation system
- PEARL/Low resistence exhaust system
fuel system
- Independently controlled cylinder monitoring and ignition system
- Electronic fuel metering valve
- Pre-chamber spark plugs
generator
- Reactive droop
- grid code generator
- closed-coupled generator result in no torque transmission to the base frame
- Busbar connections
- Winding temperature detectors
- Anti-condensation space heater
- 3-phase sensing and KVAR/PF control
starting/charging
- 24V starting motors
- Battery disconnect switch
general
- Crankshaft vibration damper and guard
Optional Equipment
air inlet
- Mounting stand
- Air cleaner with precleaner
cooling
- CHP skid
grid code compliance
- 50Hz: Germany, Belgium, Great Britain, Italy, Poland, and Netherlands
