At a glance data:
Maximum Rating:
2500.0BHP
Displacement:
3596.0in³
Minimum Rating:
2250.0BHP
Aspiration:
SCAC and ATAAC
Overview

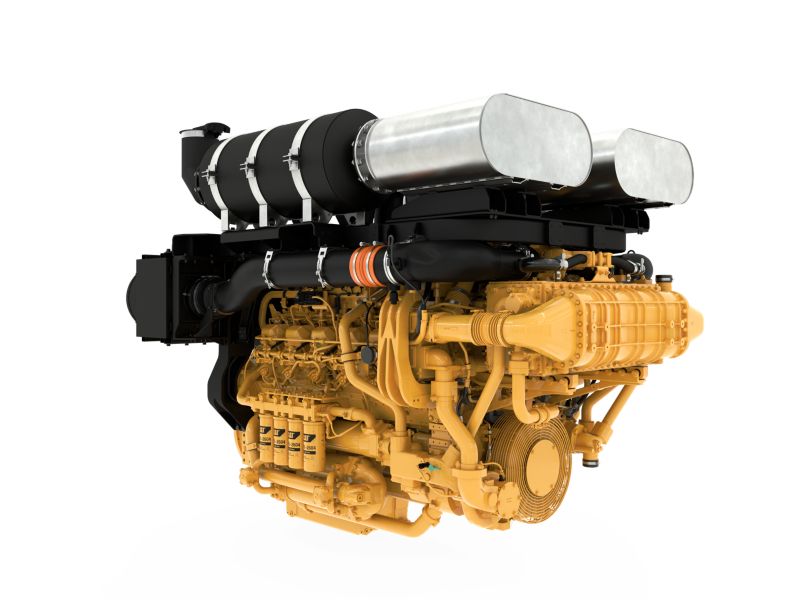

The land well service 3512E Dynamic Gas Blending™ dual fuel engine is certified to U.S. EPA Tier 4 Final emissions standard while offering the highest natural gas substitution in its class. The 3512E DGB will include factory solutions that emit approximately the same or less greenhouse gas (GHG) emissions as a comparable 3512E Tier 4 Final diesel engine. Additionally, the dual fuel performance of the new 3512E DGB has significantly increased compared to similar engines in its class with the ability to achieve 85% diesel displacement, further allowing for lower operating costs.
Category:
Well Service Engines
Category:
Well Service Engines
Brand:
Caterpillar
Brand:
Caterpillar
General Specifications
Maximum Rating:
2500.0BHP
Displacement:
3596.0in³
Minimum Rating:
2250.0BHP
Aspiration:
SCAC and ATAAC
Flywheel and Flywheel Housing:
SAE No. 0
Flywheel Teeth:
151
Stroke:
8.5in
Bore:
6.7in
Emissions
Emissions:
U.S. EPA Tier 4 Final
Dimensions
Length:
137.4in
Width:
88.0in
Height:
107.0in
Weight:
22657.0lb
General Specifications
Governor and Protection:
Electronic (ADEM™ A5) / DGB System (ADEM™ A6)
Capacity for Liquids
Lube Oil System - Refill:
52gal (US)
General Specifications
Rotation from Flywheel End:
Counterclockwise
Capacity for Liquids
Cooling System:
52gal (US)
Standard Equipment
control system
- Cat ADEM A6 DGB controls
cooling system
- Thermostats and housing, jacket and separate circuit water pump, gear-driven centrifugal
- SCAC/ATAAC system
exhaust system
- Dual DOC
- Exhaust manifold, dry, bellows connection
- Four turbochargers with watercooled bearings
- Exhaust outlet, dual 10-inch ANSI round flange as part of aftertreatment
flywheels & flywheel housing
- Flywheel, SAE No. 0, 151 teeth
fuel system
- Engine mounted Gas filter, water coalescing type
- Clean fuel module boost pump
- Fuel transfer pump
- Common rail fuel system
- Primary/secondary fuel filters
- Fuel priming pump (electric)
instrumentation
- Product LinkTM engine monitoring
general
- Vibration damper and guard
- Lifting eyes
- Paint - Caterpillar yellow
lube system
- Closed Crankcase ventillation - top mounted
- Fumes disposal
- Oil filter - RH spin-on type
- Oil cooler
- Oil filler and dipstick - LH
- Oil scavenger pump
- Oil pump
- Oil pan drain valve, 1" NPT female connection
mounting system
- Trunion front support
- Flywheel housing - two-sidedfailure options
protection system
- Emergency stop logic inputs provided at 70-pin customer interface connection
- ADEM A5 and A6 ECU system to provide customer programmable engine deration strategies to protect against adverse operating conditions
aftertreatment mounting
- CEM/muffler support package Heavy-duty air cleaners (2 element with precleaners)
Optional Equipment
charging system
- 80, 95, or 150 amp charging alternator
control system
- Local speed throttle control
- Throttle position sensors
cooling system
- Coolant conditioner
- JW outlet coupling-style connections
- JW inlet weld-flange connection
- SCAC/ATAAC inlet and outlet coupling-style connections
- JW inlet and outlet hose barb connections
- SCAC/ATAAC inlet and outlet hose barb connections Water level switch gauge
- JW Heater installation connections
exhaust system
- Flex pipe kit
- Residential mufflers (painted steel and stainless steel) with outlet elbow and rain cap
flywheels & flywheel housing
- Allison and Twin Disc flywheel options
instrumentation
- Product Link harness extensions
- LAN adapters
lube system
- Rear sump oil pan - 250-hour change interval
- Front deep sump oil pan - 500-hour change interval
power take-offs
- Front Crankshaft Adapter
- Front crankshaft stub shaft
- Accessory drive - upper RH
protection system
- Hydraulic actuated air shutoff
starting system
- Dual hydraulic starter - LH
- Manual engine barring device
- Hydraulic starter - LH
- EIRS automatic start/stop system is available on factory orders as an attachment
transmission attachments
- Transmission oil cooler
- Transmission oil cooler 2-1 connections
- Torque converter connections
general
- Air compressor
