At a glance data:
Power Range:
109 - 218 bkW
Frequency:
50 / 60
Emissions:
U.S. EPA Tier 3, IMO II, EU Stage V, China II
Stroke:
5.31in
Overview

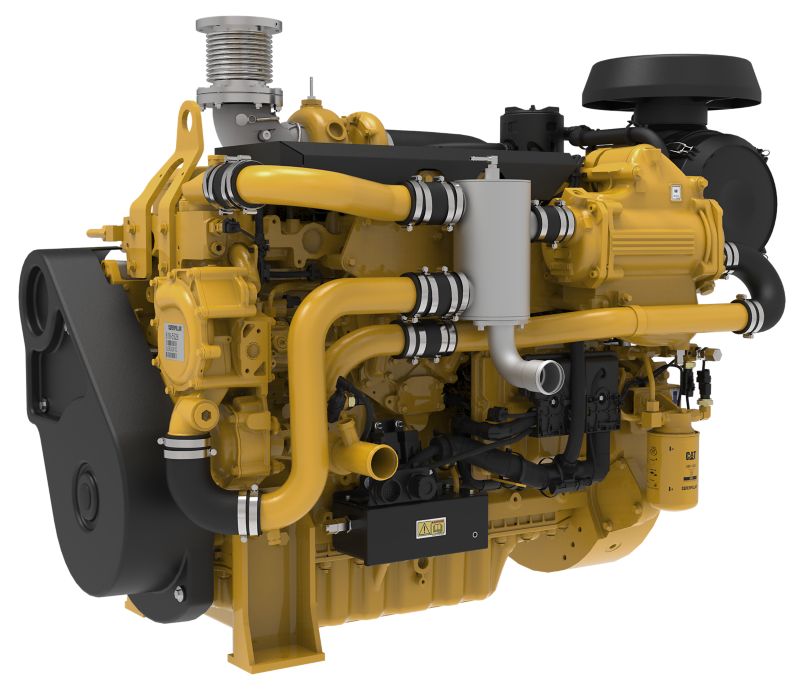

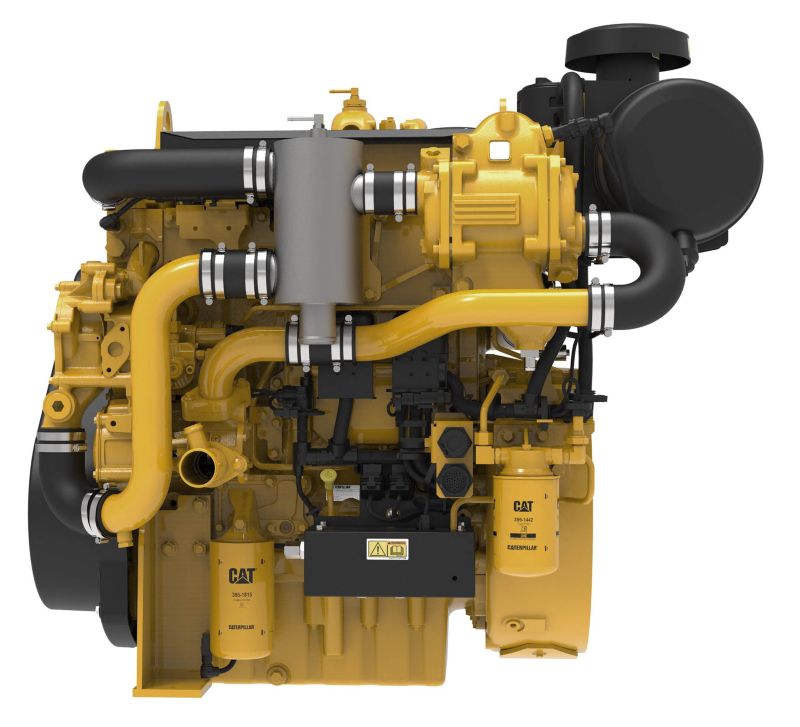

C7.1 (Electronic)
Category:
Auxiliary Engines
Category:
Auxiliary Engines
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Power Range:
109 - 218 bkW
Generator Set Specifications
Frequency:
50 / 60
Engine Specifications
Emissions:
U.S. EPA Tier 3, IMO II, EU Stage V, China II
Stroke:
5.31in
Displacement:
428in³
Aspiration:
Turbocharged - Aftercooled
Governor:
Electronic (A5E2 V2 ECM)
Configuration:
In-line 6, 4-stroke-cycle diesel
Refill Capacity:
Lube Oil System w/Oil filter change:
20 L (5.3 gal)
Oil Change Interval:
500 hours
Cooling:
Heat exchanger or keel cooled
Flywheel Housing:
SAE No. 03 with SAE
11.5 in flywheel
Rotation:
Counterclockwise
Rated Engine Speed:
1500/1800, 600 - 2400 rpm
Bore:
4.13in
Dimensions & Weights
Engine Dry Weight - Approximate:
1676
Height:
34.5in
Length:
43.1in
Width:
33.5in
Standard Equipment
cooling system
- Gear driven jacket water pump
- Corrosion resistant sea water aftercooler
- Fuel cooler
exhaust system
- Watercooled turbocharger and exhaust manifold
fuel system
- Common rail fuel system
- Electric fuel priming pump
general
- Vibration damper and guard
- Self-tensioning multi-vee belt drive
lube system
- Closed crankcase ventilation system
- Integral engine oil cooler
mounting system
- Front and rear engine mounting brackets
starting system
- Starter motors - 12V or 24V
Optional Equipment
air inlet system
- Various 6" water cooled exhaust elbow configurations
cooling system
- Engine mounted bilge pumps and auxiliary water pumps with electromagnetic clutch
- Tube and bundle jacket water heat exchanger and gear-driven sea water pump (rubber impeller)
- Jacket water heater
- Cabin heater (calorifier) connections
fuel system
- SOLAS double wall high pressure fuel lines kit
lube system
- Left-hand and right-hand oil dipsticks
- Transmission gear oil cooler (engine mounted)
protection system
- Additional engine and transmission sensor packages for on or off vessel monitoring
starting system
- Engine mounted secondary alternator - 24V 100 amp or 12V 175 amp
- Glow plugs
