At a glance data:
Drive Shaft Torque at Maximum Pressure:
5034.6lb/ft
Drive Method:
Gerotor Motor - Double Planetary Drive
Mounting Bracket Design:
Skid Steer Loader Coupler
Required Hydraulics:
High Flow XPS
Overview

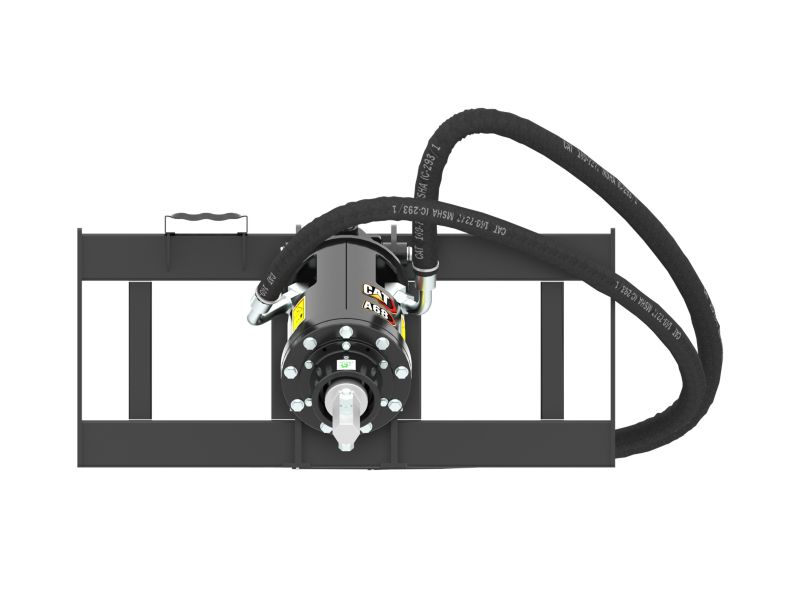

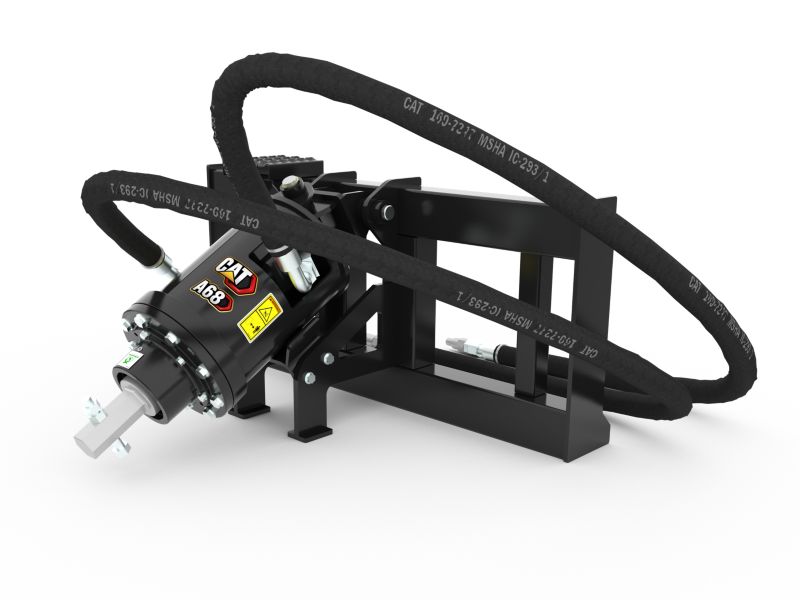

Cat® Augers are used for drilling holes for footings, fencing, signs, trees and shrubs in construction, agricultural, and landscaping applications. They are designed with the right amount of speed and torque for maximum productivity in a broad range of soil types.
Category:
Augers
Category:
Augers
Brand:
Cat
Brand:
Cat
Drive Shaft Torque at Maximum Pressure: 5034.6lb/ft
Drive Shaft Torque at Maximum Pressure:
5034.6lb/ft
Drive Method: Gerotor Motor - Double Planetary Drive
Drive Method:
Gerotor Motor - Double Planetary Drive
Mounting Bracket Design: Skid Steer Loader Coupler
Mounting Bracket Design:
Skid Steer Loader Coupler
Required Hydraulics: High Flow XPS
Required Hydraulics:
High Flow XPS
Optimal Hydraulic Flow: 95-130 L/min (25-34 gpm)
Optimal Hydraulic Flow:
95-130 L/min (25-34 gpm)
Optimal Hydraulic Pressure: 207-290 bar (3002-4206 psi)
Optimal Hydraulic Pressure:
207-290 bar (3002-4206 psi)
Overall Width - With Bracket: 45.4in
Overall Width - With Bracket:
45.4in
Overall Length - With Bracket: 23.5in
Overall Length - With Bracket:
23.5in
Overall Height: 38.5in
Overall Height:
38.5in
Housing Diameter: 9.9in
Housing Diameter:
9.9in
Swing Range: 102 degrees
Swing Range:
102 degrees
Swing Range (fore/aft): 120 degrees
Swing Range (fore/aft):
120 degrees
Swing Range (L/R): 102 degrees
Swing Range (L/R):
102 degrees
Weight: 401.2lb
Weight:
401.2lb
Motor Displacement: 3in³
Motor Displacement:
3in³
Bit Speed at Maximum Flow: 81 rpm
Bit Speed at Maximum Flow:
81 rpm
Hex Output Shaft Size: 2in
Hex Output Shaft Size:
2in
