At a glance data:
Base Power (1st Gear) - Net:
291hp
Engine Model:
Cat® C13 ACERT™ VHP
Bore:
5.1in
Stroke:
6.2in
Overview

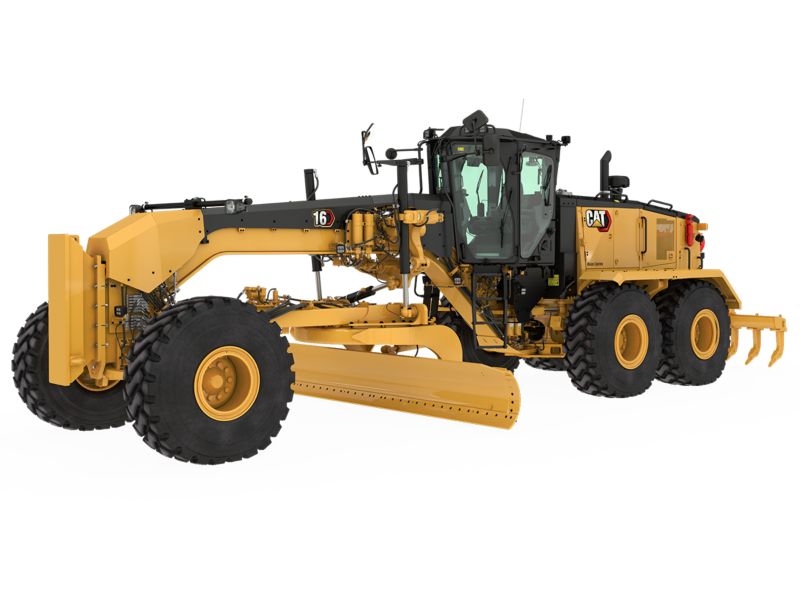

The Cat® 16 motor grader is built for mine operations and haul road construction. Its fuel-efficient design, robust build, and advanced technology deliver maximum uptime, lower costs, and superior productivity.
Category:
Motor Graders
Category:
Motor Graders
Brand:
Cat
Brand:
Cat
Engine
Base Power (1st Gear) - Net:
291hp
Engine Model:
Cat® C13 ACERT™ VHP
Bore:
5.1in
Stroke:
6.2in
Speed at Rated Power:
2,000 rpm
Standard - Fan Speed - Maximum:
1,200 rpm
Standard - Ambient Capability:
109.0°F
Maximum Torque:
1263.0lb/ft
Base Power (1st Gear) - Net - Metric:
295hp
High - Ambient Capability:
122.0°F
Optimized VHP Range - Net:
217-243 kW (291-326 hp)
High Ambient - Fan Speed - Minimum:
550 rpm
Standard - Fan Speed - Minimum:
550 rpm
Torque Rise:
46%
High Ambient - Fan Speed - Maximum:
1,450 rpm
Displacement:
763.0in³
Number of Cylinders:
6
Derating Altitude:
15000.0ft
Weights
Operating Weight - Typically Equipped:
67600lb
Power Train
Forward/Reverse Gears:
8 Forward/6 Reverse
Transmission:
Direct drive, power shift, countershaft
Brakes - Service - Surface Area:
7724.0in²
Brakes - Parking:
Spring applied, hydraulically released
Brakes - Service:
Oil-actuated, oil-disc
Brakes - Secondary:
Oil-actuated, oil-disc
Moldboard
Blade Width:
16ft
Hydraulic System
Circuit Type:
Electro-hydraulic load sensing, closed center
Pump Type:
Variable piston
Pump Output:
74.0gpm
Maximum System Pressure:
3500.0psi
Standby Pressure:
450.0psi
Operating Specifications
Turning Radius - Outside Front Tires:
29.2ft
Articulation Angle - Left/Right:
20°
Forward - 6th:
16.0mile/h
Reverse - 4th:
9.3mile/h
Reverse - 3rd:
6.0mile/h
Forward - 4th:
7.6mile/h
Reverse - 6th:
25.3mile/h
Reverse - 2nd:
4.1mile/h
Forward - 7th:
22.0mile/h
Forward - 5th:
11.8mile/h
Top Speed - Reverse:
25.3mile/h
Reverse - 5th:
17.4mile/h
Reverse - 1st:
2.2mile/h
Forward - 1st:
2.8mile/h
Forward - 8th:
32.1mile/h
Forward - 3rd:
5.5mile/h
Top Speed - Forward:
32.1mile/h
Steering Range - Left/Right:
47.5°
Forward - 2nd:
3.8mile/h
Service Refill
Fuel Capacity:
141.0gal (US)
Cooling System:
16.0gal (US)
Hydraulic System - Total:
30.1gal (US)
Hydraulic System - Tank:
17.2gal (US)
Engine Oil:
7.9gal (US)
Transmission - Differential - Final Drives:
30.1gal (US)
Tandem Housing - Each:
32.1gal (US)
Front Wheel Spindle Bearing Housing:
0.24gal (US)
Circle Drive Housing:
2.1gal (US)
Frame
Drawbar - Height:
8.0in
Front Frame Structure - Thickness:
0.6in
Front Frame Structure - Width:
12.8in
Front Axle - Total Oscillation per Side:
32.0°
Drawbar - Width:
3.0in
Front Axle - Height to Center:
27.1in
Front Axle - Wheel Lean - Left/Right:
18.2°
Circle - Blade Beam Thickness:
2.0in
Front Frame Structure - Height:
14.0in
Circle - Diameter:
71.75in
Tandems
Tandem Oscillation - Front Up:
15°
Sidewall Thickness - Inner:
0.9in
Sidewall Thickness - Outer:
0.9in
Tandem Oscillation - Front Down:
25°
Height:
25.5in
Width:
9.3in
Drive Chain Pitch:
2.5in
Wheel Axle Spacing:
72.5in
Moldboard
Arc Radius:
16.3in
Throat Clearance:
4.9in
Cutting Edge Thickness:
1.0in
Blade Pull - Maximum GVW:
48554.0lb
End Bit - Thickness:
0.75in
Blade Pull - Base GVW:
38781.0lb
End Bit - Width:
6.0in
Cutting Edge Width:
8.0in
Down Pressure - Base GVW:
29154.0lb
Height:
31.0in
Thickness:
1.0in
Width:
16.0ft
Down Pressure - Maximum GVW:
44047.0lb
Blade Range
Maximum Blade Position Angle:
65°
Maximum Lift Above Ground:
15.6in
Maximum Depth of Cut:
19.2in
Circle Centershift - Right:
23.5in
Circle Centershift - Left:
25.5in
Moldboard Sideshift - Left:
25.6in
Blade Tip Range - Backward:
5°
Maximum Shoulder Reach Outside of Tires - Right:
101.9in
Maximum Shoulder Reach Outside of Tires - Left:
90.0in
Moldboard Sideshift - Right:
43.1in
Blade Tip Range - Forward:
40°
Ripper
Ripping Depth - Maximum:
17.8in
Shank Holder Spacing - Minimum:
17.5in
Shank Holder Spacing - Maximum:
20.0in
Ripper Shank Holders:
7
Penetration Force:
25088.0lb
Pry-Out Force:
38508.0lb
Machine Length Increase, Beam Raised:
63.4in
Weights
Gross Vehicle Weight - Typically Equipped - Rear Axle:
50322lb
Gross Vehicle Weight - Typically Equipped - Total:
67600lb
Gross Vehicle Weight - Base - Total:
60862lb
Gross Vehicle Weight - Maximum - Total:
82784lb
Gross Vehicle Weight - Typically Equipped - Front Axle:
17278lb
Gross Vehicle Weight - Maximum - Front Axle:
25353lb
Gross Vehicle Weight - Base - Rear Axle:
44310lb
Gross Vehicle Weight - Maximum - Rear Axle:
57431lb
Gross Vehicle Weight - Base - Front Axle:
16552lb
Standards
Steering:
ISO 5010:2007
ROPS/FOPS:
ISO 3471/ISO 3499
Sound:
ISO 6394/ISO 6395
Brakes:
ISO 3450
Air Conditioning System
Air Conditioning:
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
Standard Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
operator environment
- Accelerator
- Air conditioner with heat
- Arm and wrist rest, adjustable
- Articulation, automatic Return-to-Center
- Ashtray and lighter
- Cat Messenger, operator information system
- Centershift pin indicator
- Coat hook
- Cup holder
- Display, digital speed and gear
- Doors, left and right side with wiper
- Gauge cluster – articulation, engine coolant temp, engine rpm, fuel, system voltage
- Gauges, machine level
- Hour meter, digital
- Joystick hydraulic controls for implements, steering, transmission
- Ladders, cab, left and right side
- Lights, left and right side lights
- Lights, night time cab
- Meter, hour, digital
- Mirror, inside rearview, wide angle
- Power port, 12V
- Radio ready, entertainment
- ROPS cab, sound suppressed, less than 75 dB(A)
- Seat belt, retractable 76 mm (3 in)
- Seat, cloth-covered, comfort air suspension
- Storage area for cooler/lunchbox
- Throttle control, electronic
- Windows, laminated glass: – Fixed front with intermittent wiper – Side and rear windows (3)
power train
- Air cleaner, dual stage, dry type, automatic dust ejector, service indicator through Cat Messenger
- Air-to-air after cooler (ATAAC)
- Belt, serpentine, automatic tensioner
- Brakes, four-wheel hydraulic
- Differential, lock/unlock
- Drain, engine oil, high speed
- Electronic over speed protection
- Engine, Cat C13 with ACERT Technology
- Engine, compression brake
- Ether starting aid
- Fuel tank, fast fill, ground level
- Fuel-water separator
- Hydraulic demand fan
- Muffler, under hood
- Optimized VHP
- Parking brake – multi disc, sealed, oil-cooled
- Priming pump, fuel
- Rear axle, modular
- Sediment drain, fuel tank
- Transmission, 8F/6R, power shift
electrical
- Alarm, back up
- Alternator, 150 ampere, sealed
- Batteries, maintenance free, heavy duty, 1,400 CCA
- Breaker panel, ground accessible
- Electrical system, 24V
- Lights: reversing, roof-mounted roading, stop and tail (LED), work front
- Product Link Ready
- Starter, electric, heavy duty
other standard equipment
- 3-bolt blade bracket
- AccuGrade ARO
- Accumulators, blade lift
- Brake accumulators, dual certified
- Bumper, rear, integrated with hitch
- Cat Grade Control
- CD ROM Parts Book
- Clutch, circle drive slip
- Cutting edges, curved DH-2 steel: – 203 mm × 25 mm (8 in × 1 in) – 19 mm (3/4 in) mounting bolts
- Doors (4), engine compartment, locking
- Drawbar – 6 shoe with replaceable wear strips
- Endbits, 19 mm (3/4 in) DH-2 steel
- Fluid check, ground level
- Frame, articulated, with safety lock
- Front axle guard
- Ground level engine shutdown
- Guards, service center debris
- Hammer (emergency exit)
- Horn, electric
- Hydraulics, base 8 implement controls
- Hydraulics, load-sensing
- Lockout, hydraulic implement for roading
- Metallic DCM wear strips
- Moldboard: – 4877 mm × 787 mm × 25 mm (16 ft × 31 in × 1 in) – Hydraulic sideshift and tip
- Paint, glare reducing – top of front frame, rear enclosure
- Radiator, cleanout access
- Secondary steering
- Serviceability, left-hand side
- S·O·SSM ports: engine, hydraulic, transmission, coolant, fuel
- Tandem walkway/guards
- Tool box
- Tow hitch
tires, rims, and wheels
- A partial allowance for tires on 23.5" × 24" multi-piece rims is included in the base machine price and weight
fluids
- Extended Life Coolant to –35° C (–30° F)
Optional Equipment
note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
electrical
- Lights, front headlights, low
- Lights, front headlights, high
- Lights, front, HID
- Lights, front, halogen
- Lights, working, halogen
- Lights, working, HID
- Platform, lights, working, halogen
- Platform, lights, working, HID
- Light, LED, warning strobe
- Mounting, for warning light
guards
- Guard, transmission
- Guard, debris
- Fenders, rear
- Sound suppression, engine enclosure
- Sound guard
- Covers, screen
operator environment
- Mirrors, outside mounted
- Mirrors, outside heated 24V
- Mirrors high visibility
- Platform, ladders left- and right-hand side
- Comfort package
- Horn, air
power train
- Differential lock, automatic
- Transmission, autoshift
- Coolant, –45° C (–50° F)
other attachments
- Control, blade, variable float
- Camera, rear vision
- Heater, engine coolant, 120V
- Heater, engine coolant, 240V
- Hydraulic arrangements with one or more additional hydraulic valves are available: – Auto-lube, Centro-matic
- Hydraulic arrangements with one or more additional hydraulic valves are available: – Auto-lube, ripper enhancement
- Snow arrangement
- Security system, machine
- Rim, 19.5" × 25" MP (spare)
- Weather, Cold Plus
work tools/g.e.t.
- Cutting edge, 4.9 m (16 ft) blade
- Ripper, rear
- Pushplate, counterweight
- Tooth, ripper
Similar Products

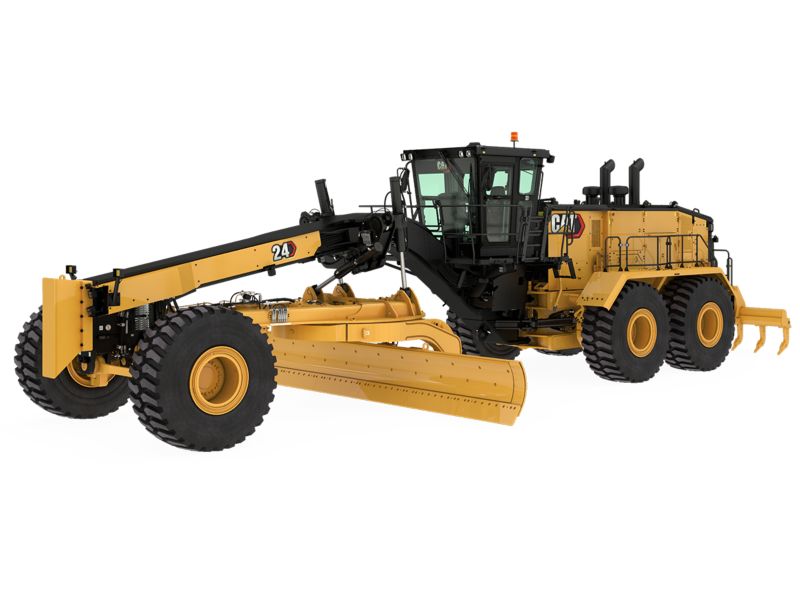

24 Motor Grader
Base Power (1st Gear) - Net:
291hp
Engine Model:
Cat® C13 ACERT™ VHP
Bore:
5.1in
Stroke:
6.2in

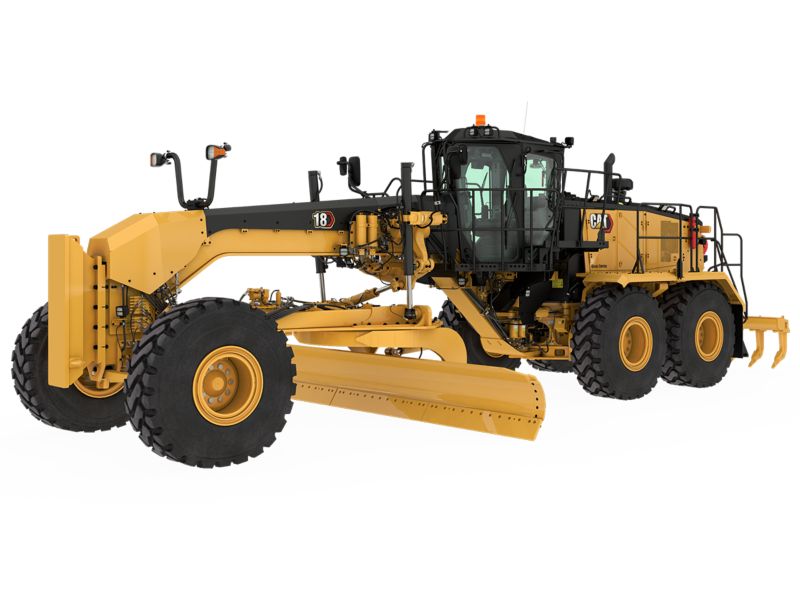

18 Motor Grader
