At a glance data:
Maximum Power:
23.8hp
Maximum Torque:
92lb-ft @ 1800 rpm
Rated Speed:
2200 rpm
Minimum Power:
23.8hp
Overview

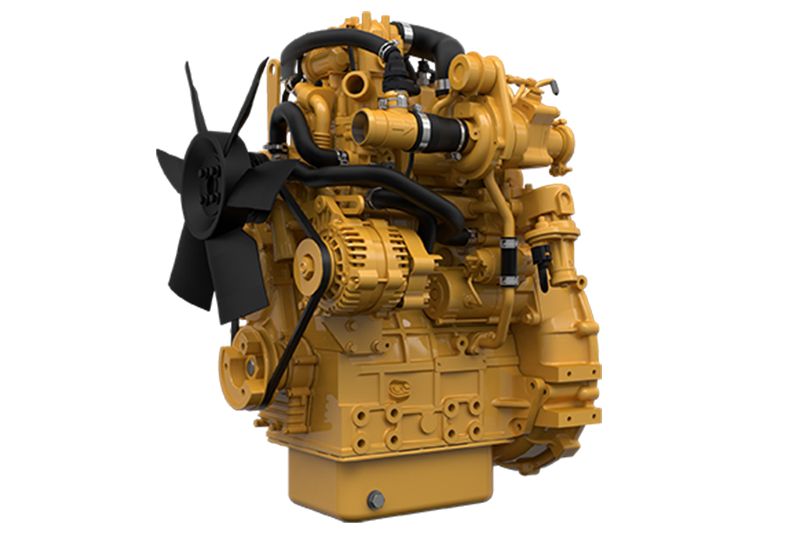

The Cat® C1.7 Industrial Diesel Engine is offered in the following ratings: 23.6 & 26.1 bkW (31.6 & 35 bhp) @ 2400 & 2600 rpm. These ratings meet U.S. EPA Tier 4 Final emission standards. Industries and applications powered by C1.7 engines include: Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Construction, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Pumps, Trenchers, Turf and Landscaping and Underground Mining Equipment.
Category:
Industrial Diesel Engines
Category:
Industrial Diesel Engines
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Maximum Power:
23.8hp
Maximum Torque:
92lb-ft @ 1800 rpm
Rated Speed:
2200 rpm
Minimum Power:
23.8hp
Emission Standards
Emissions:
U.S. EPA Tier 4 Final
General
Engine Configuration:
In-Line 3
Bore:
3.3in
Stroke:
3.9in
Displacement:
103.7in³
Compression Ratio:
23.0:1
Aspiration:
Naturally Aspirated (NA)/Turbocharged (T)
Combustion System:
Indirect Injection
Rotation from Flywheel End:
Counterclockwise
Aftertreatment:
-
Total Lubricating Oil Capacity:
1.58gal (US)
Engine Dimensions - Approximate
Length:
22.5in
Width:
19.7in
Height:
25.3in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments:
368lb
Aftertreatment Dimensions
Length:
22.5in
Aftertreatment Dimensions*
Diameter:
6.1in
Aftertreatment Dimensions
Weight:
12.8lb
Standard Equipment
air inlet system
- Standard air cleaner
- Turbocharger
control system
- Alternator 12 volt 85 amp
- Starter motor 12 volt
- Glow plug starting aid
- Electronic control unit
- Flexible and configurable software features and well supported SAE J1939 CAN bus enables highly integrated machines
- All connectors and wiring harness are waterproof and designed to withstand harsh non-road environments
- Robust reliable sensors
cooling system
- Belt-driven coolant pump
- Coolant temperature switch
- Choice of cooling fans
- Fan drive options
flywheel & flywheel housing
- Flywheel and flywheel housing options
fuel system
- Electronic 2000 bar common rail fuel system
- Spin-on fuel filter
- Simple pintle nozzle injectors
lube system
- Spin on oil filter
- Lube oil pressure switch
- Sump options for various applications
power take off (pto)
- SAE A PTO drive
general
- Cast iron, engine block
- Cast iron exhaust manifold options
- Paint: Caterpillar yellow, with optional colors available at request
- Induction manifold options
- Engine mounting
- Block heater provision
u.s. epa tier 4 final aftertreatment/clean emissions control equipment
- Diesel Oxidation Catalyst (DOC)
Optional Equipment
