At a glance data:
Maximum Power:
580hp
Maximum Torque:
1958lb-ft @ 1400 rpm
Rated Speed:
1800-2100 rpm
Minimum Power:
475hp
Overview

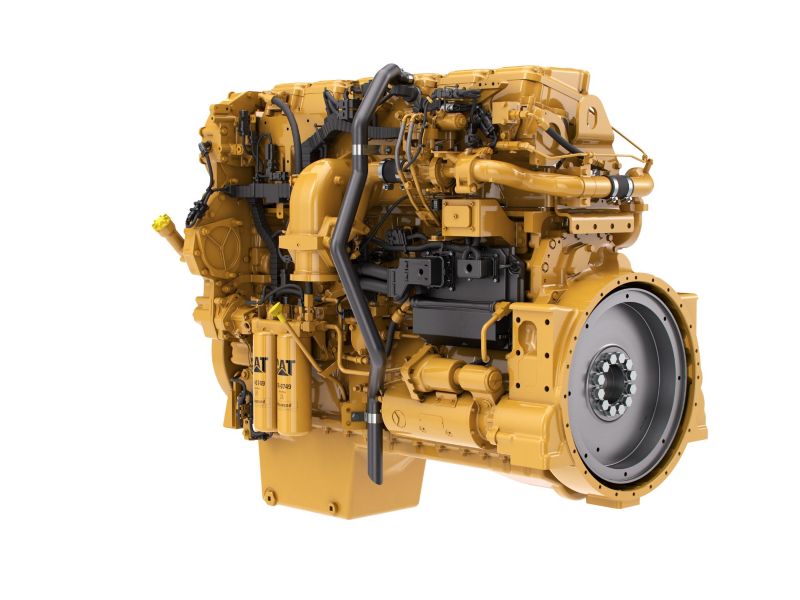

On construction sites and mining operations, in agriculture and forestry, and in a wide range of industries, Cat® C15 Industrial Diesel Engines deliver the power, performance and durability to take on the biggest challenges. More importantly, they're backed by the world-class Cat dealer network ready to service and support every Cat® industrial engine. Industries and applications powered by C15 engines include: Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Combines/Harvesters, Compactors/Rollers, Compressors, Construction, Cranes, Crushers, Dredgers, Forestry, General Industrial, Hydraulic Power Units, Irrigation Equipment, Loaders/Forwarders, Material Handling, Mining, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers.
Category:
Industrial Diesel Engines
Category:
Industrial Diesel Engines
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Maximum Power:
580hp
Maximum Torque:
1958lb-ft @ 1400 rpm
Rated Speed:
1800-2100 rpm
Minimum Power:
475hp
Emission Standards
Emissions:
U.S. EPA Tier 4 Final
General
Engine Configuration:
In-Line 6
Bore:
5.4in
Stroke:
6.7in
Displacement:
927.6in³
Compression Ratio:
17.0:1
Aspiration:
Turbocharged-Aftercooled (TA)
Combustion System:
Direct Injection
Rotation from Flywheel End:
Counterclockwise
Aftertreatment:
DOC+DPF+SCR
Engine Dimensions - Approximate
Length:
56.6in
Width:
38.1in
Height:
49.1in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments:
3673lb
Aftertreatment Dimensions
Length:
45.4in
Width:
43.8in
Height:
25.7in
Aftertreatment Dimensions*
Diameter:
14in
Aftertreatment Dimensions
Weight:
600lb
PETU Dimensions - Tier 4 Final Only
Length:
33.6in
Width:
11.3in
Height:
21.7in
Weight:
42.8lb
Volume Capacity:
51.1qt (US)
Standard Equipment
air inlet system
- Turbocharged
- Air-to-Air Aftercooled
- Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)
control system
- Electronic control system
- Over-foam wiring harness
- Automatic altitude compensation
- Power compensated for fuel temperature
- Configurable software features
- Engine monitoring system SAE J1939 broadcast and control
- Integrated Electronic Control Unit (ECU)
- Remote fan control
cooling system
- Thermostats and housing, vertical outlet
- Centrifugal water pump
- Guidance on cooling system design available through your dealer to ensure equipment reliability
flywheels and flywheel housing
- Choice of SAE No. 0 or SAE No. 1 flywheel housing
- Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).
fuel system
- MEUI injection
- Primary fuel filter
- Secondary fuel filters
- Fuel transfer pump
- Electronic fuel priming
lube system
- Open crankcase ventilation system
- Oil cooler
- Oil filler
- Lube oil filter
- Oil dipstick
- Gear driven oil pump
- Choice of front, rear or center sumps
- Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)
power take off (pto)
- SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.
general
- Paint: Caterpillar yellow, with optional colors available at request
u.s. epa tier 4 interim, eu stage iiib aftertreatment / clean emissions control equipment
- Cat Regeneration System
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- NOx Reduction System (NRS)
- Flex pipe connection kit with 90° rotatable elbows to attach to Cat Regeneration System Inlet
- Available in 12 volt or 24 volt systems
u.s. epa tier 4 final, eu stage iv aftertreatment
- Cat Regeneration System
- Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)
- Aftertreatment Electronic Control Unit (ECU)
- NOx Reduction System (NRS)
- Pump Electronic Control Unit (PETU)
- Selective Catalytic Reduction (SCR)
- Available in 12V or 24V systems
Optional Equipment
