At a glance data:
Maximum Power:
800hp
Maximum Torque:
2736lb-ft @ 1300 rpm
Rated Speed:
1800-2000
Minimum Power:
575hp
Overview

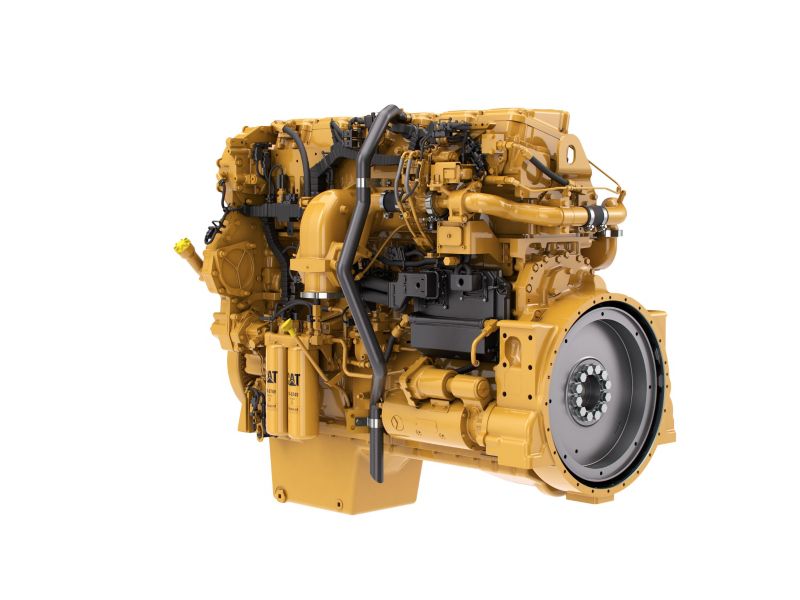

The Cat® C18 Industrial Diesel Engine is offered in ratings ranging from 429-597 kW (575-800 hp) @ 1800-2000 rpm. Industries and applications powered by C18 engines include: Agriculture, Ag Tractors, Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Compressors, Construction, Cranes, Dredgers, Forestry, General Industrial, Hydraulic Power Units, Irrigation Equipment, Material Handling, Mining, Mobile Earthmoving Equipment, Paving Equipment, Pumps, Shovels/Draglines, Surface Hauling Equipment and Trenchers.
Category:
Industrial Diesel Engines
Category:
Industrial Diesel Engines
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Maximum Power:
800hp
Maximum Torque:
2736lb-ft @ 1300 rpm
Rated Speed:
1800-2000
Minimum Power:
575hp
Emission Standards
Emissions:
U.S. EPA Tier 4 Final, EU Stage V
General
Number of Cylinders:
6 vertical in-line
Displacement:
1104.5in³
Aspiration:
Turbocharged-Aftercooled (TA) or Series Twin Turbocharged Aftercooled (TTA)
Bore:
5.7in
Stroke:
7.2in
Combustion System:
Direct Injection
Compression Ratio:
16.0:1
Aftertreatment:
DOC+DPF+SCR or DOC
Rotation from Flywheel End:
Anti-clockwise
Cooling System:
Liquid
Engine Dimensions*
Length:
61in
Width:
45in
Height:
53in
Dry Weight:
3875lb
Wet Weight:
3945lb
Disclaimer
Note 1:
*Final dimensions dependent on selected options
