At a glance data:
Maximum Power:
35hp
Maximum Torque:
78.1lb-ft @ 1800 rpm
Rated Speed:
2400-2600 rpm
Minimum Power:
31.6hp
Overview

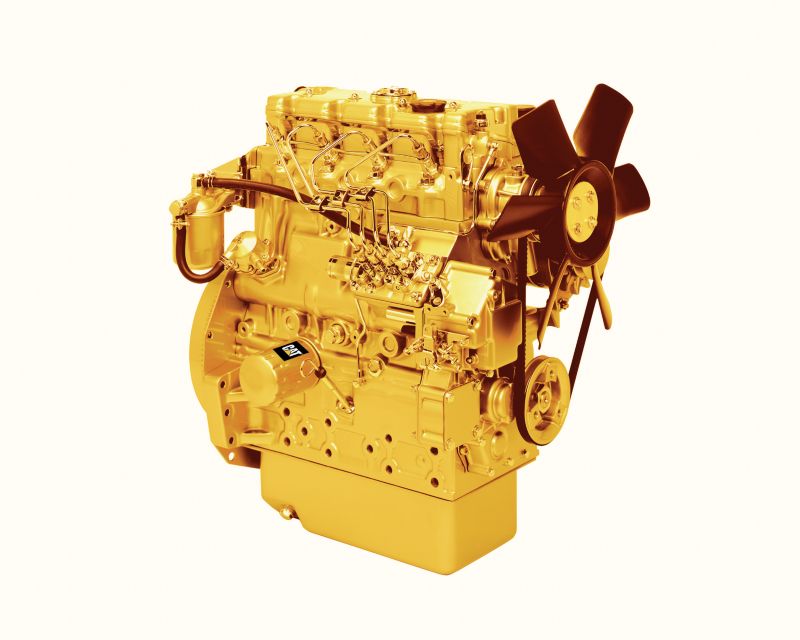

The Cat® C1.7 Industrial Diesel Engine is offered in the following ratings: 23.6 & 26.1 bkW (31.6 & 35 bhp) @ 2400 & 2600 rpm. These ratings meet UN ECE R96 Stage IIIA emission standards. Industries and applications powered by C1.7 engines include: Aircraft Ground Support, Bore/Drill Rigs, Chippers/Grinders, Compactors/Rollers, Construction, Forestry, General Industrial, Material Handling, Mining, Mobile Earthmoving Equipment, Mobile Light Towers, Pumps, Trenchers, Turf and Landscaping and Underground Mining Equipment.
Category:
Industrial Diesel Engines
Category:
Industrial Diesel Engines
Brand:
Caterpillar
Brand:
Caterpillar
Power Rating
Maximum Power:
35hp
Maximum Torque:
78.1lb-ft @ 1800 rpm
Rated Speed:
2400-2600 rpm
Minimum Power:
31.6hp
Emission Standards
Emissions:
UN ECE R96 Stage IIIA
General
Engine Configuration:
Inline 3, 4-Stroke-Cycle Diesel
Bore:
3.3in
Stroke:
3.9in
Displacement:
101.4in³
Compression Ratio:
23.0:1
Aspiration:
Naturally Aspirated (NA)
Combustion System:
Indirect Injection
Rotation from Flywheel End:
Counterclockwise
Aftertreatment:
-
Engine Dimensions - Approximate
Length:
22.5in
Width:
17.8in
Height:
25.3in
Weight - Net Dry - Basic Operating Engine Without Optional Attachments:
359lb
Standard Equipment
air inlet system
- Inlet manifold with choice of inlets.
control system
- Alternator 12 volt 40 amp
- Starter motor 12 volt
- Glow plug starting aid
cooling system
- Belt-driven coolant pump
- Coolant temperature switch
- Choice of cooling fans
flywheel & flywheel housing
- SAE No. 6 1/2 flywheel
- Choice of SAE No. 5 or standard backplate flywheel housing
fuel system
- Fuel injection pump
- Spin-on fuel filter
- Electronic Shut-off Solenoid (ESOS)
lube system
- Lube oil filter
- Lube oil pressure switch
- Lube oil sump
general
- Cast iron, engine block
- Cast iron exhaust manifold--side outlet
- Cold start capability to -20° C (-4° F)
- Gradeability 35° continuous
- Paint: Caterpillar yellow, with optional colors available at request
