At a glance data:
Operating Weight - With Cab:
15895lb
Weight - Drum with ROPS/FOPS:
7460lb
Weight - Drum with Cab:
7756lb
Compaction Width:
66.0in
Overview

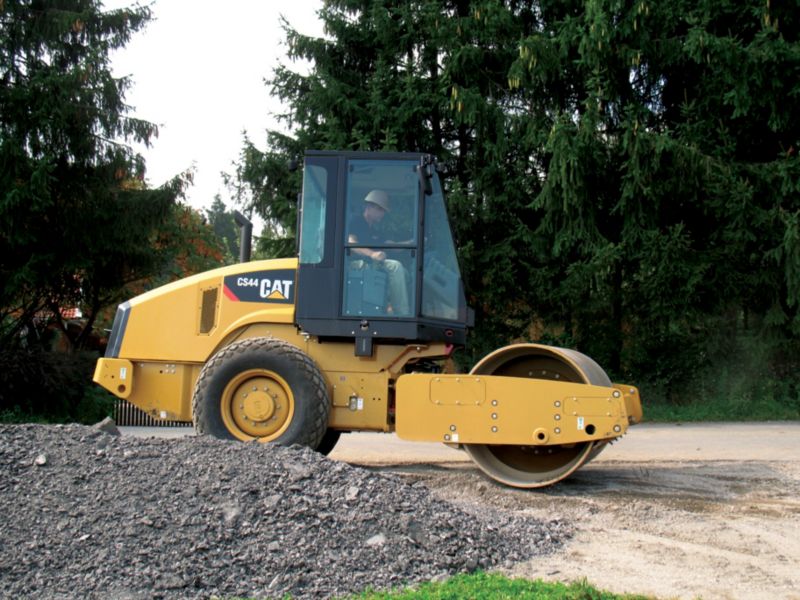

The CS44B provides exceptional performance on flat or sloped terrain. This machine is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.
Category:
Vibratory Soil Compactors
Category:
Vibratory Soil Compactors
Brand:
Cat
Brand:
Cat
Weights
Operating Weight - With Cab:
15895lb
Weight - Drum with ROPS/FOPS:
7460lb
Weight - Drum with Cab:
7756lb
Operating Specifications
Compaction Width:
66.0in
Travel Speed - Maximum:
7.0mile/h
Turning Radius - Inside Drum Edge:
10.00ft
Static Linear Load - With Cab:
118lb/in
Static Linear Load - With ROPS/FOPS:
113lb/in
Ground Clearance:
16.2in
Engine
Gross Power:
100.6hp
Engine Model:
Cat C3.4B
Dimensions
Overall Length - With Blade Option:
18.44ft
Drum Diameter:
48.1in
Height - With ROPS/FOPS or Cab:
9.35ft
Overall Width - With Blade Option:
6.95ft
Optional Blade Height:
22.6in
Wheel Base:
8.5ft
Drum Width:
66.0in
Overall Length:
16.7ft
Overall Width:
5.91ft
Vibratory System
Centrifugal Force - Maximum:
29900lb
Vibratory Frequency - Standard:
1914.0V/m
Centrifugal Force - Minimum:
15000.0lb
Nominal Amplitude - Low:
0.033in
Nominal Amplitude - High:
0.066in
Variable Frequency Option Range:
23.3-31.9 Hz (1400-1914 vpm)
Tires
Tires:
14.9 × 24 6-ply flotation
Service Refill Capacities
Fuel Tank Capacity:
37.0gal (US)
Standard Equipment
operator environment
- ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
- Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera System
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
vibratory system
- Smooth Drum
- Dual Amplitude, Single Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
- Universal Bumper
power train
- Cat C3.4B Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
electrical
- 12 volt Electrical System
- 150 ampere Alternator
- 60 Cold-cranking Amps Battery Capacity
other
- Product Link™
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S•O•S℠ Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
Optional Equipment
operator environment
- ROPS/FOPS Cab with Climate Control
- Sun Visor
vibratory system
- Padfoot Shell Kit (oval or square pads available)
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
- Scraper Shell Kit Ready
- Recording Module for Vibration Frequency
power train
- Transmission Guard
- Bio-oil Factory Fill
technology solutions
- Measure - Compaction Meter Value (CMV)
- Map - SBAS GNSS Mapping
- Connect - Cloud and Machine Connectivity
other
- Upgraded Halogen Light Package
- Rotating Beacon
