At a glance data:
Engine Model:
C1.1
Overview

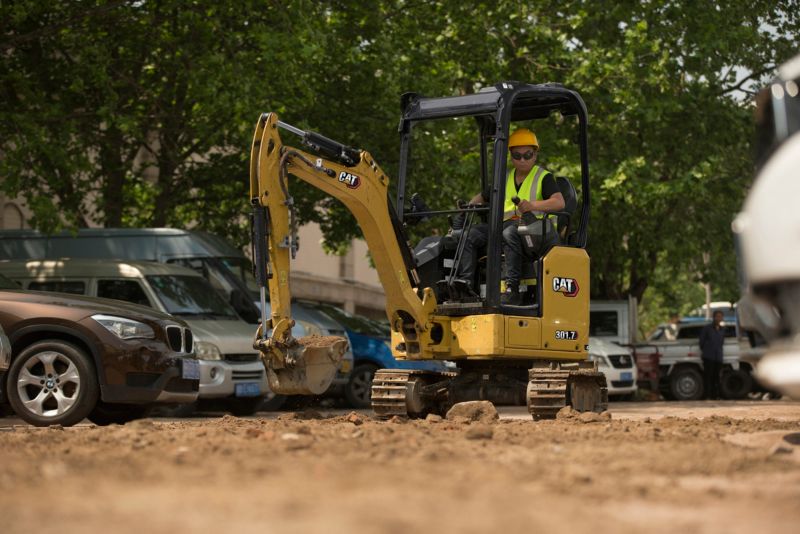

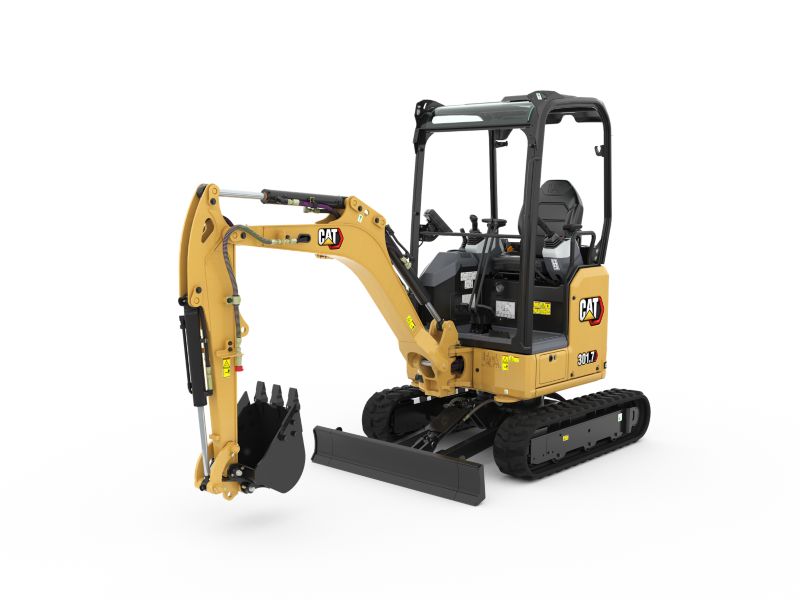

The Cat® 301.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
Category:
Mini Excavators
Category:
Mini Excavators
Brand:
Caterpillar
Brand:
Caterpillar
Engine
Net Power:
21hp
Engine Model:
C1.1
Engine Power:
21.6hp
Bore:
3in
Stroke:
3.2in
Displacement:
69in³
Emissions:
Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1):
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note:
Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Weights
Operating Weight:
4222lb
Minimum Operating Weight with Canopy*:
3946lb
Maximum Operating Weight with Canopy**:
4222lb
EU: CE Plate Weight***:
4167lb
Note (1):
*Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.
Note (2):
**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (3):
***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Weight Increase from Minimum Configuration
Long Stick:
22lb
Steel Tracks:
110lb
Expandable Undercarriage:
Standard
Heavy Counterweight:
148lb
Travel System
Travel Speed - High:
2.7mile/h
Travel Speed - Low:
1.8mile/h
Maximum Traction Force - High Speed:
2675.2lbf
Maximum Traction Force - Low Speed:
4136.5lbf
Ground Pressure - Minimum Weight:
4psi
Ground Pressure - Maximum Weight:
4.4psi
Gradeability - Maximum:
30 degrees
Service Refill Capacities
Cooling System:
1gal (US)
Engine Oil:
1.2gal (US)
Fuel Tank:
5.8gal (US)
Hydraulic Tank:
4.8gal (US)
Hydraulic System:
6.9gal (US)
Hydraulic System
Pump Flow at 2,400 rpm:
17.4gpm
Operating Pressure - Equipment:
3553.4psi
Operating Pressure - Travel:
3553.4psi
Operating Pressure - Swing:
2132.1psi
Auxiliary Circuit - Primary - Flow:
8.7gpm
Auxiliary Circuit - Primary - Pressure:
3553.4psi
Auxiliary Circuit - Secondary - Flow:
3.7gpm
Auxiliary Circuit - Secondary - Pressure:
3553.4psi
Digging Force - Stick - Standard:
2135.7lbf
Digging Force - Stick - Long:
1865.9lbf
Digging Force - Bucket:
3641.9lbf
Type:
Load Sensing Hydraulics with Variable Displacement Piston Pump
Swing System
Machine Swing Speed:
9.8r/min
Blade
Width*:
39in
Height:
8.9in
Note:
*Expanded – 1300 mm (51 in)
Certification - Canopy
Roll Over Protective Structure (ROPS):
ISO 12117-2:2008
Tip Over Protective Structure (TOPS):
ISO 12117:1997
Top Guard:
ISO 10262:1998 (Level I)
Dimensions - Standard Stick
Dig Depth:
92.5in
Vertical Wall:
70.9in
Maximum Reach - Ground Level:
153.5in
Maximum Reach:
156.3in
Maximum Dig Height:
135in
Maximum Dump Clearance:
96.5in
Boom In Reach:
64.2in
Tail Swing:
25.6in
Maximum Blade Height:
10.6in
Maximum Blade Depth:
10.4in
Boom Height - Shipping Position:
42.9in
O/A Shipping Height:
90.6in
Swing Bearing - Height:
17.4in
O/A Undercarriage Length:
62.6in
Overall Shipping Length*:
142.5in
Boom Swing - Right:
50°
Boom Swing - Left:
65°
Track Belt/Shoe Width:
9.1in
Track Width - Retracted:
39in
Track Width - Expanded:
51.18in
Minimum Ground Clearance Below Undercarriage:
5.5in
Stick Length:
37.8in
Note:
*Overall Shipping Length depends on blade position during shipment.
Dimensions - Long Stick
Dig Depth:
100in
Vertical Wall:
74.4in
Maximum Reach - Ground Level:
159.8in
Maximum Reach:
162.6in
Maximum Dig Height:
137.4in
Maximum Dump Clearance:
98.8in
Boom In Reach:
63.8in
Tail Swing:
25.6in
Maximum Blade Height:
10.6in
Maximum Blade Depth:
10.4in
Boom Height - Shipping Position:
40.9in
O/A Shipping Height:
90.6in
Swing Bearing - Height:
17.4in
O/A Undercarriage Length:
62.6in
Overall Shipping Length*:
141.3in
Boom Swing - Right:
50°
Boom Swing - Left:
65°
Track Belt/Shoe Width:
9.1in
Track Width - Retracted:
39in
Track Width - Expanded:
51.18in
Minimum Ground Clearance Below Undercarriage:
5.5in
Stick Length:
45.7in
Note:
*Overall Shipping Length depends on blade position during shipment.
Sound
Average Exterior Sound Pressure (ISO 6395:2008):
93dB(A)
Note:
European Union Directive “2000/14/EC”
Sustainability
Recyclability:
95%
Standard Equipment
engine
- Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)
- Automatic Engine Idle
- Automatic Engine Shutdown
- Automatic Two Speed Travel
- Fuel Water Separator
- Power on Demand (not available in all regions)
- Variable Displacement Piston Pump
- Load Sensing/Flow Sharing Hydraulics
hydraulics
- Smart Tech Electronic Pump
- Accumulator
- Automatic Swing Brake
- Auxiliary Hydraulic Lines
- One and Two Way Auxiliary Flow
- Continuous Auxiliary Flow
- Auxiliary Line Quick Disconnects
operator environment
- Tilt-up Canopy
- Top Guard ISO 10262:1998 Level I
- ROPS – ISO 12117-2:2008
- TOPS – ISO 12117:1997
- Machine 2-Point Lifting
- Stick Steer Mode
- Travel Cruise Control
- Control Pattern Changer (optional in some regions)
- Adjustable Wrist Rests
- Washable Floor Mat
- Travel Pedals and Hand Levers
- Machine Security
- Machine Security – Standard Key with Pass Code
- Vinyl Non-Suspension Seat
- Hydraulic Lockout – All Controls
- Retractable High Visibility Seat Belt (75 mm/3 in)
- Coat Hook
- Cup Holder
- Storage Pocket
- Skylight
- Mounting Bosses for Front
- Signaling/Warning Horn
- Boom Light, Halogen
- Utility Space for Mobile Phone
- Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch
undercarriage
- Expandable Undercarriage
- Rubber Belt (230 mm/9 in wide)
- Dozer Blade
- Dozer Blade Float
- Hydraulic Track Adjusters
- Tie Downs on Track Frame
boom, stick and linkages
- One Piece Boom (1780 mm/70 in)
- Standard Stick (960 mm/37.8 in)
- Front Shovel Capable
- Front Shovel Capable – Pin-On
- Thumb Ready (not available in all regions)
- Certified Lifting Eye (optional in some regions)
electrical
- 12 Volt Battery
- Software (machine and monitor)
- Maintenance Free Battery
- Signaling/Warning Horn
- 12 Volt Power Socket
Optional Equipment
operator environment
- Control Pattern Changer (optional in some regions)
- No Travel Pedals and Hand Levers
- Machine Security – Push to Start with Key Fob/Pass Code
- Vinyl Suspension Seat
- LED Front Lights
- LED Front and Rear Lights
- LED Boom Light
- Mirrors Left and Right
- Seat Belt Reminder System
undercarriage
- Steel Track (230 mm/9 in wide)
boom, stick and linkages
- Long Stick (1160 mm/45.7 in)
- Front Shovel Capable – Dual Lock Manual Coupler
- Attachments including Couplers, Thumbs, Buckets, Augers and Hammers
- 2nd Auxiliary Hydraulic Lines
- Boom Lowering Check Valve
- Stick Lowering Check Valve
- Hydraulic Quick Coupler Lines (not available in all regions)
electrical
- Battery Disconnect
- Product Link PL243 (regulations apply)
- Product Link PLE643 (regulations apply)
- Travel Alarm (standard in some regions)
guarding
- Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 PSA)
- Polycarbonate Half Height Front Guard (Canopy only)
other
- Bio Oil Capable
- Eco Drain
- Water Jacket Heater
- Heavy Counterweight
